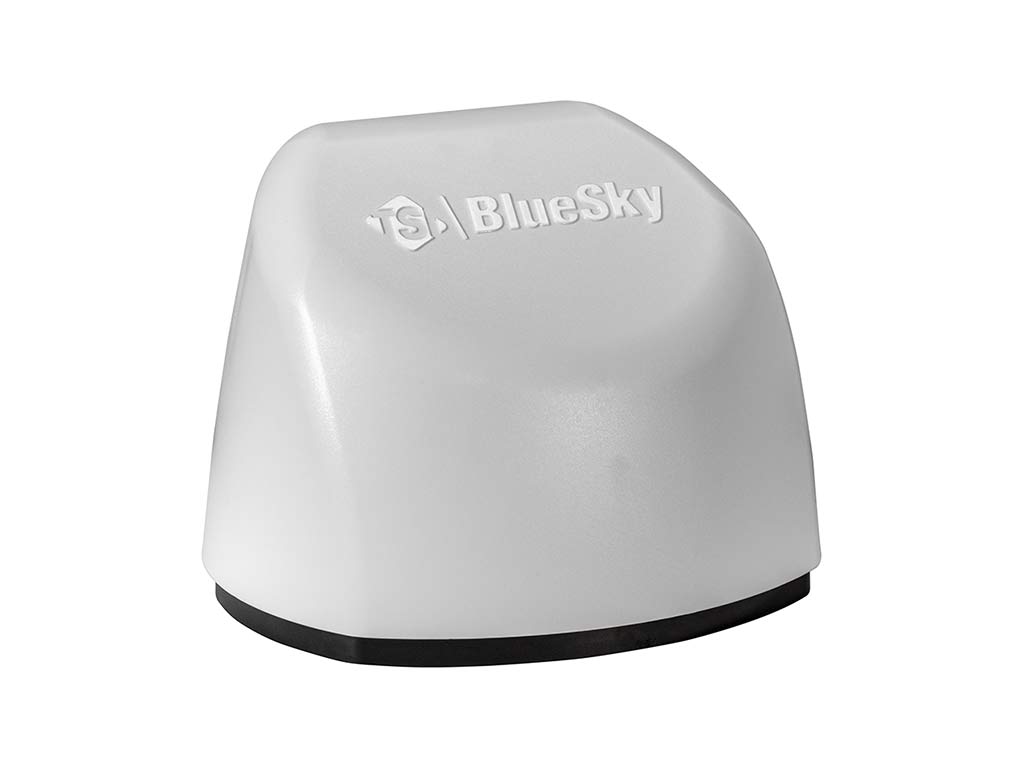

BlueSky Air Quality Monitor 8145

SKU: 8145-B1

The TSI BlueSky™ Air Quality Monitor is a lightweight instrument designed to simultaneously measure PM2.5, PM10 mass concentrations, temperature, relative humidity, barometric pressure, O3, CO, CO2, NO2, and SO2. The device purchase includes a subscription to both TSI Link™ Software (Premium account) and Data Services for one, two or three years depending on your choice.

Product Details

As an Internet of Things (IoT) solution, these hyperlocal, cloud-based air quality monitors offer data interfacing using WiFi, and comes standard with an SD memory card for duplicate date storage, software and cloud data services. While specifically designed for outdoor environmental monitoring, BlueSky Air Quality Monitors can also be utilized inside buildings, homes and manufacturing facilities to measure indoor air quality.  Interested in monitoring for traditional particulate matter (PM) mass concentrations, temperature, and relative humidity (RH) only? Check out our BlueSky 8143 model!

This product is only available in US, Canada, Europe and some countries in Asia (please reach out to your sales representative for availability).

What's Included:

  • 1 BlueSky Air Quality Monitor
  • 1 IP68 Rated 5V Power Supply

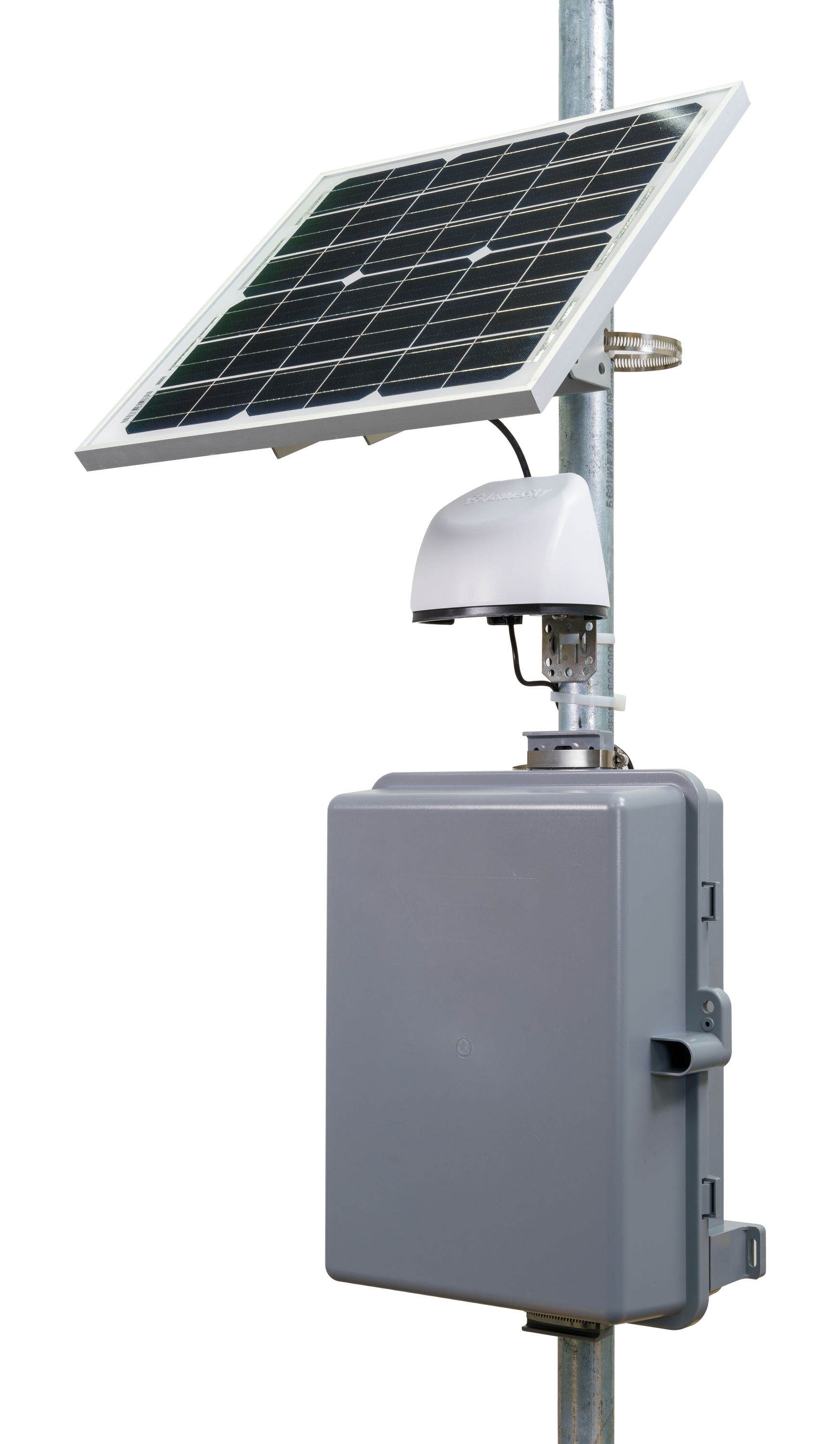

  • 1 Mounting Bracket
  • 1 Mounting Screw
  • 2 Zip Ties
  • 1 Micro-SD Card (installed)
  • Access to TSI Link Premium Software
  • Access to TSI Link  API Data Services

To order replacement parts, please see the accessories listed below.


TSI Link™ Solutions

Deploy one or more monitors and track real-time air quality conditions using the TSI Link™ Solutions cloud-based software. With this software solution, you can access your data and operate your devices remotely—anytime, anywhere.

The BlueSky™ Air Quality Monitor integrates with the TSI Link™ Solution, where you can manage your devices from your home or office. Click here for more details on our integrated software solutions.

Included in your initial purchase are two TSI Link™ options: the Premium Software and the API Data Services subscriptions. This way you can work with both to determine your best path going forward.


Learn More About TSI Link Solutions


Setting Up Your BlueSky Air Quality Monitor

This step-by-step video will walk you through how to connect the BlueSky Air Quality Monitor to the cloud, and how to install the unit.



Features & Benefits

  • Precision data – TSI factory-calibrated PM sensor with the option to program a custom calibration factor

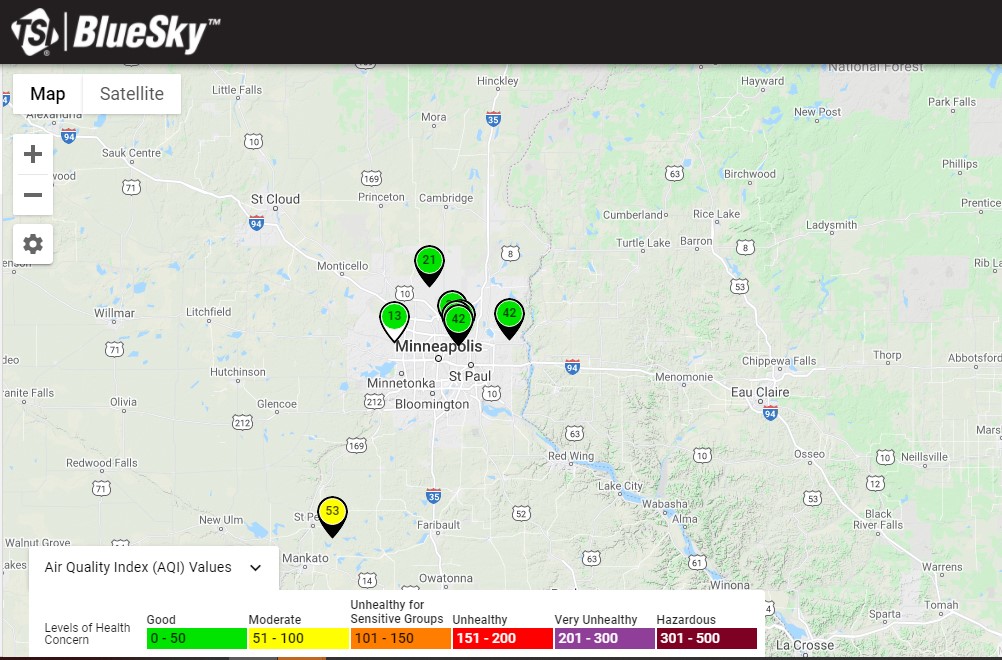

  • Real-time map of live data – ability to stream and display real-time data from the cloud using WiFi, without additional software or an app

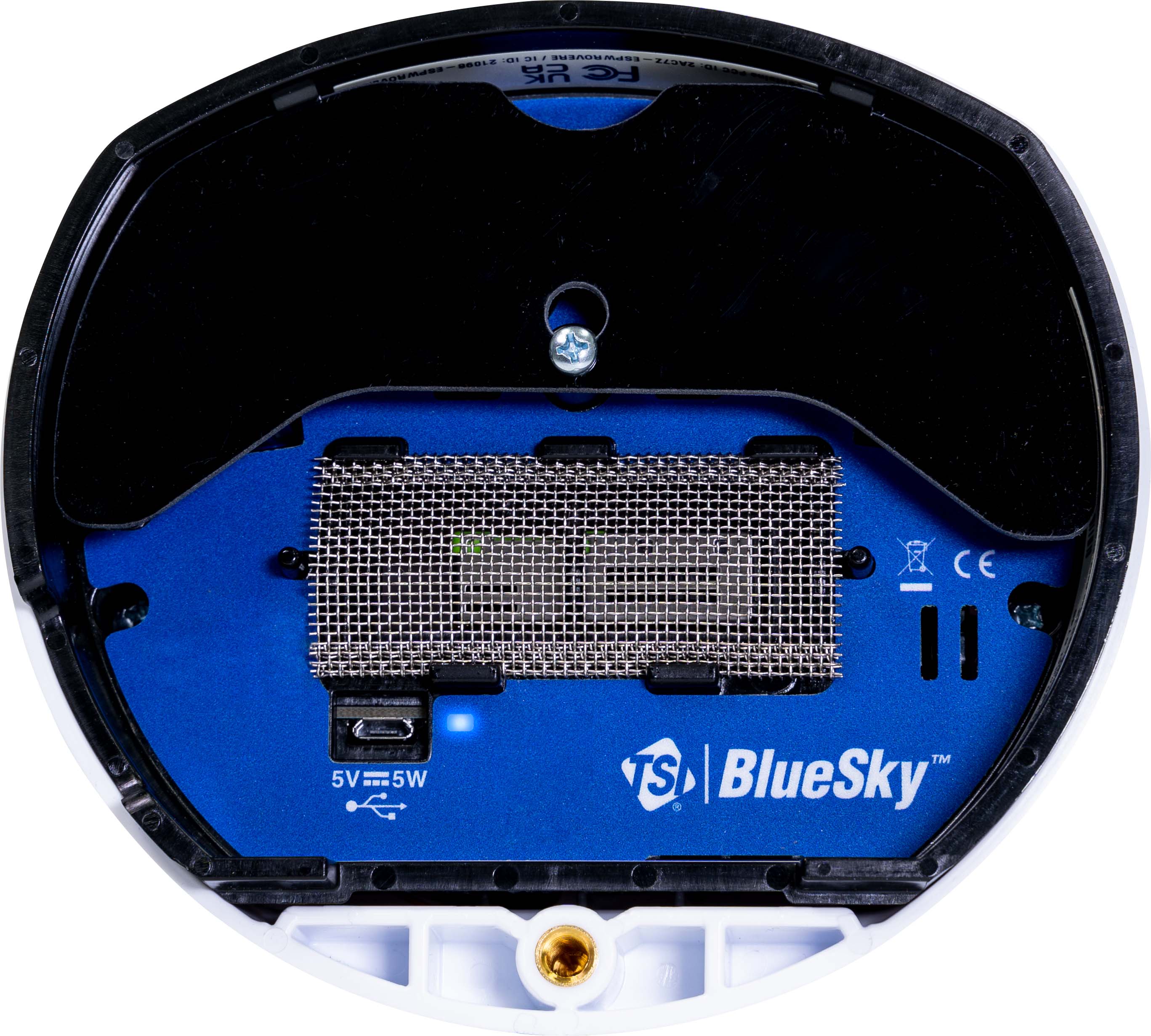

  • Unique laser-based light scattering particle sensors – simultaneously outputs PM1.0, PM2.5, PM4.0, PM10
  • Additional sensors gathering weather data, inluding ambient temperature, relative humidity and barometric pressure

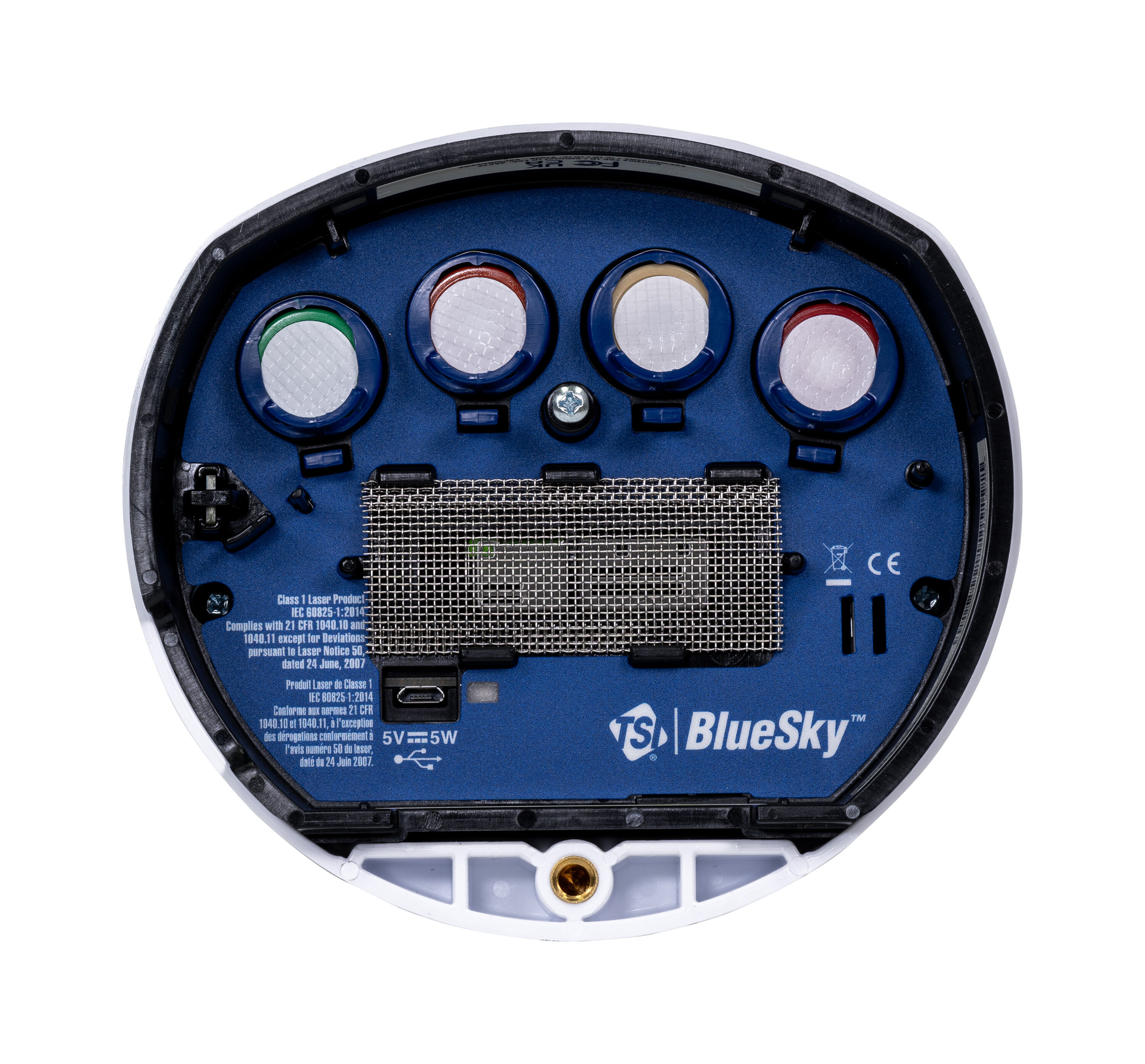

  • Electrochemical gas sensors to measure common outdoor pollutants CO, O3, NO2, and SO2. Non-disprisive Infrared (NDIR) for CO2

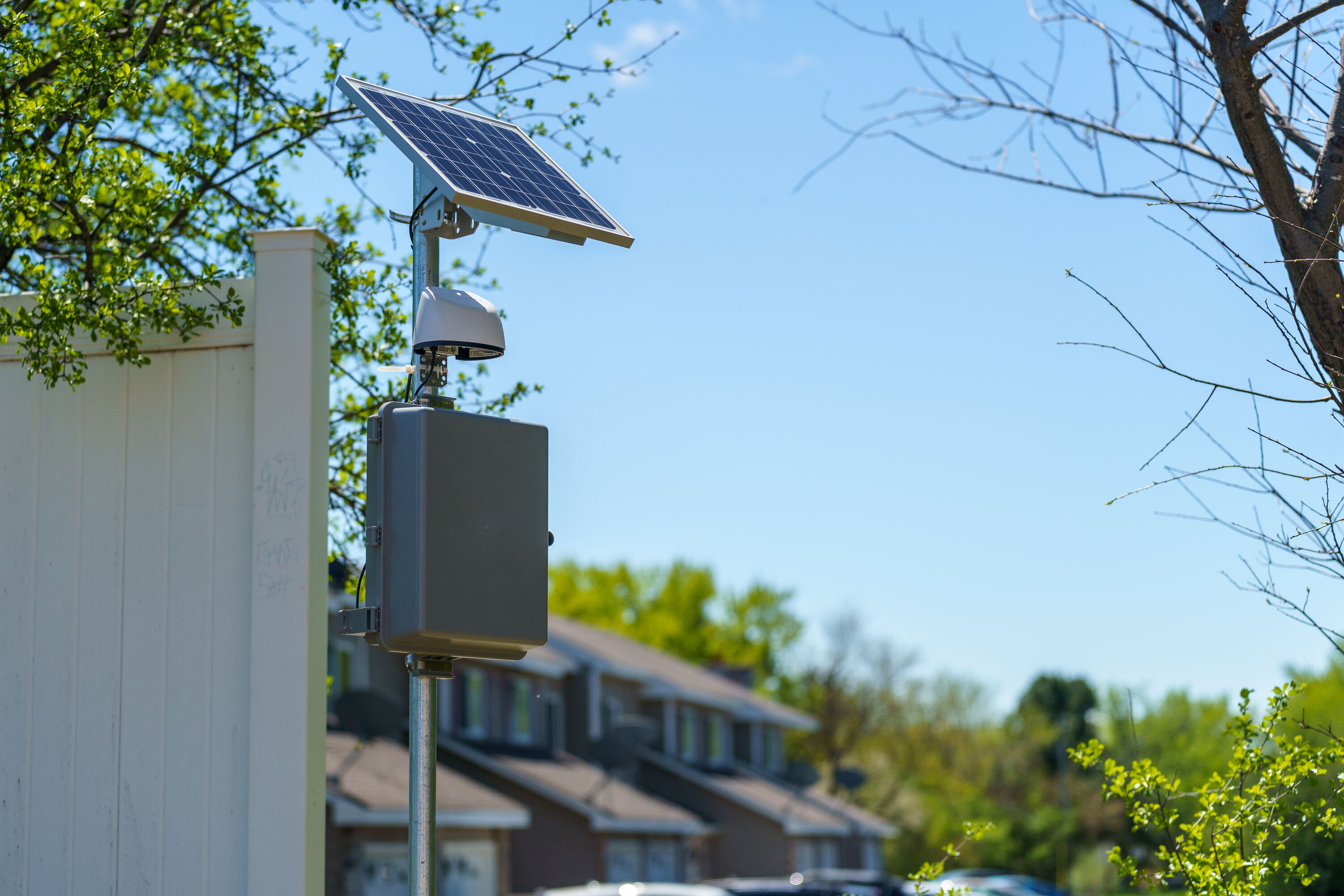

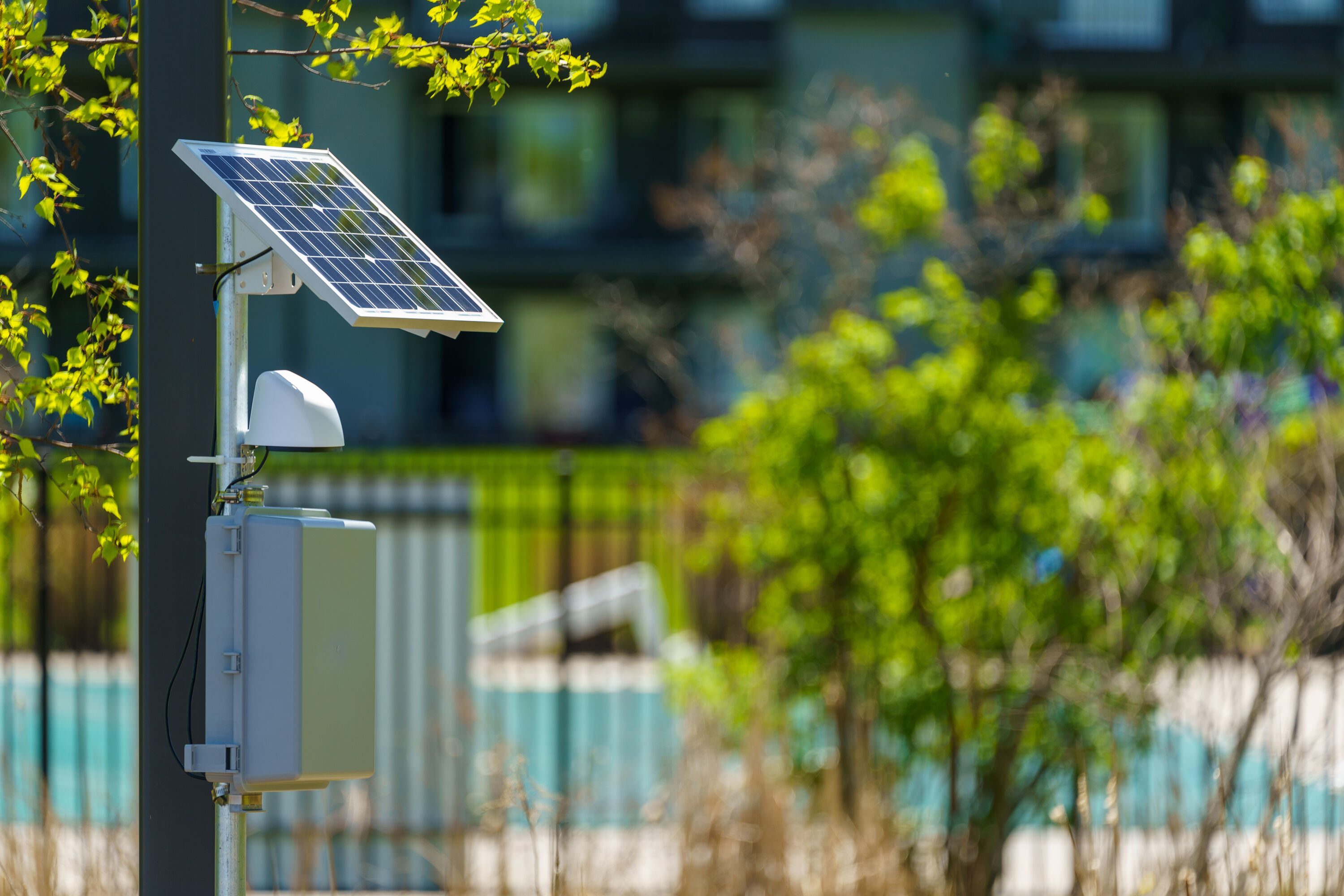

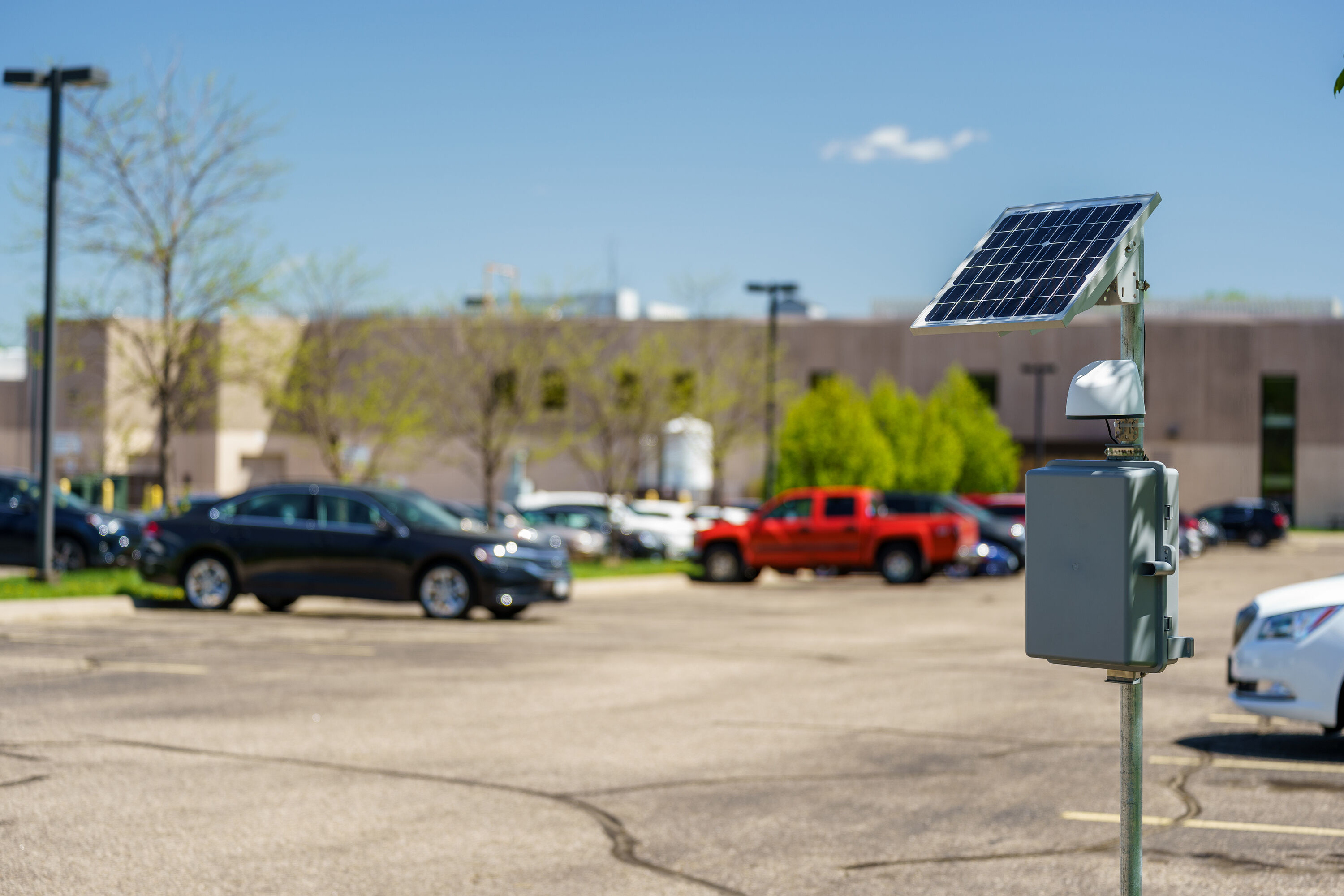

  • Designed for outdoor use – performs consistently in a wide range of humidity and temperatures, and protected from rain, bugs and direct sunlight
  • Two ways to download data – from the removable SD card, or from the cloud
  • Data buffering – internally logs data (up to 2 weeks at 15 min interval via on board memory) for data redundancy
  • Easy and quick installation
  • WiFi Compatability: 2.4 GHz (802.11b/g/n)
