Locations for Ultrapure Water Monitoring in Semiconductor Manufacturing

Ultrapure water (UPW) monitoring is essential for ensuring the highest quality water in semiconductor manufacturing and other high-tech industries. Several key locations should be considered for effective monitoring to detect contamination and ensure process integrity.
  1. Final UPW Quality at the Fab Supply Header / UPW Generation Source — Monitoring UPW at the supply location confirms that the expected water quality is achieved before entering the fab. This location serves as an early warning system for nanoparticle contamination or unexpected purification process issues. By analyzing UPW at this stage, manufacturers can ensure that water entering the fab meets stringent quality standards and identify contamination sources upstream.
  2. Return UPW Quality Leaving the Fab Process Piping — Monitoring UPW at the end of the process piping provides insight into potential contamination within the fab's piping system. Analyzing return UPW allows manufacturers to identify elevated particle counts that may indicate an issue within the distribution network. When combined with supply monitoring, this approach helps isolate contamination sources, enabling a more targeted investigation.
  3. Lateral Piping UPW Quality to Monitor Specific Portions of the System — Monitoring lateral piping sections can help assess water quality at different stages of the manufacturing process. Specific phases or production lines can be evaluated, which is especially beneficial for processes with more stringent UPW requirements. This approach ensures that critical process areas receive the highest quality water and can help pinpoint potential contamination sources within specific sections of the piping system.
  4. Critical Tool or Process Monitoring — Monitoring UPW at the point of use (POU) for high-value tools or critical processes is crucial for maintaining product quality. This can include post-POU filtration monitoring to verify final water quality just before contact with sensitive components. Ensuring the highest purity levels at these critical points minimizes the risk of defects and process disruptions.

Conclusion

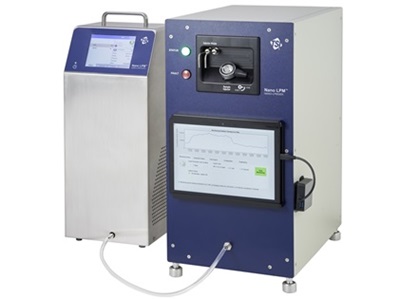

Strategic UPW monitoring is crucial for semiconductor manufacturing, ensuring early detection of nanoparticle contamination and maintaining process integrity. By placing monitors at supply headers, return piping, lateral distribution points, and critical tools, manufacturers can isolate contamination sources and prevent defects caused by waterborne nanoparticles. The TSI Nano LPM™ System revolutionizes yield enhancement by detecting 10nm particles in UPW before they impact production. Utilizing patented, material-independent technology, this system provides robust, real-time monitoring to drive advanced defect reduction efforts. Implementing comprehensive UPW monitoring safeguards sensitive processes and boosts overall manufacturing efficiency.

Learn more about the Nano LPM™ System — Empowers Data-Driven Decisions in UPW Monitoring...Like Never Before.

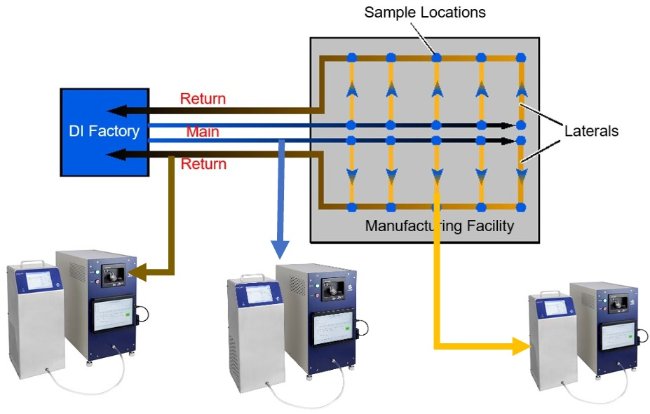

Schematic of UPW monitoring locations in fab using the TSI Nano LPM™ System.
