DustTrak™ DRX Aerosol Monitor 8533EP

SKU: 8533EP

The DustTrak™ DRX Aerosol Monitor measures aerosol contaminants such as dust, smoke, fumes and mists.

Looking for quick reporting and easier data management?

The new TSI Link™ Smart Bridge application gives you the option to store and manage data on the cloud. Improve your workflow and enjoy quick custom reports and save time!

LEARN MORE

Product Details

Leading the industry in real-time dust monitoring, DustTrak™ DRX Aerosol Monitors can simultaneously measure both mass and size fraction. DustTrak DRX monitors are multi-channel, battery-operated, data-logging, light-scattering laser photometers that give you real-time aerosol mass readings and collects a gravimetric sample. They use a sheath air system that isolates the aerosol in the optics chamber to keep the optics clean for improved reliability and low maintenance.

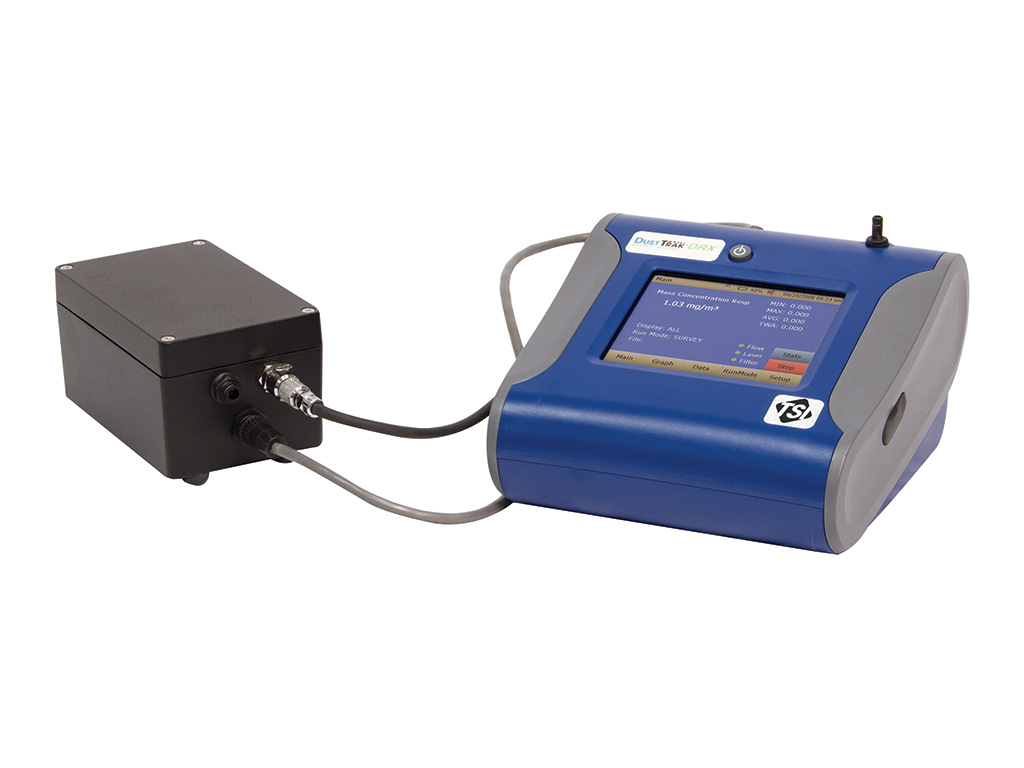

The DustTrak DRX Model 8533EP is outfitted with an external pump module that is designed to handle the rigors of continuous 24/7/365 monitoring applications such as construction sites, fugitive emissions monitoring at environmental sites, and other outdoor applications.

Features and Benefits

Energy-efficient, long lasting external pump for continuous, unattended, 24/7, outdoor monitoring applications
Simultaneously measure size-segregated mass fraction concentrations corresponding to PM1, PM2.5, respirable, PM10 and PM Total size fractions
STEL alarm setpoint
Touchscreen interface
Trakpro data analysis software
Automatic zeroing (with optional zero module) minimizes the effect of zero drift
Perform in-line gravimetric sampling for custom reference calibrations
Manual and programmable data logging functions
Aerosol concentration range 0.001 to 150 mg/m³
Environmental protected and tamper-proof with Environmental Enclosure
Desktop unit with batter and AC adapter

Applications

Outdoor environmental monitoring
Baseline trending and screening
Engineering control evaluations
Remote monitoring
Process monitoring
Emissions monitoring
Aerosol research studies

Included Items

Carrying case
External pump
Analog alarm outputs
Rechargeable 7800 mAH Li-Ion battery
Switching power supply with universal line cords
TrakPro™ Data Analysis Software CD
Zero filter
USB (device and host) computer cable
Analog/alarm output connector
Inlet cap (x2)
37-mm gravimetric sample cassette with mesh filter
Calibration impactor kit (with PM2.5 impactor, impactor plates (x2) and impactor oil)
Sample extension tube (3 ft/1 m)
Sheath air HEPA filters (x4)
Filter removal tool
Operation service manual
Calibration certificate
2-year warranty
