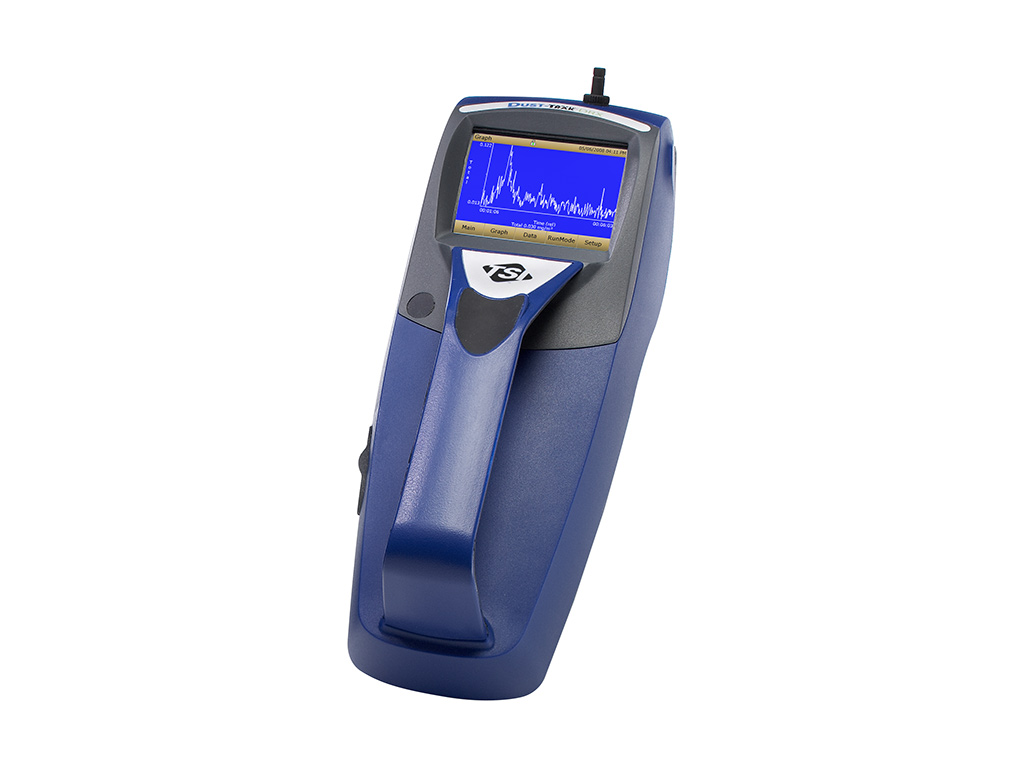

DustTrak™ DRX Aerosol Monitor 8534

Product Details

Only the DustTrak™ DRX Aerosol Monitor 8534 can simultaneously measure both mass and size fraction. The DustTrak DRX handheld monitor is a multi-channel, battery-operated, data-logging, light-scattering laser photometer that gives you real-time aerosol mass readings. It uses a sheath air system that isolates the aerosol in the optics chamber to keep the optics clean for improved reliability and low maintenance.

It is suitable for clean office settings as well as harsh industrial workplaces, construction and environmental sites, and other outdoor applications. The DustTrak DRX handheld monitor measures aerosol contaminants such as dust, smoke, fumes and mists.

Features and Benefits

• Simultaneously measure size-segregated mass fraction concentrations corresponding to PM1, PM2.5, respirable, PM10 and PM Total size fractions
• Lightweight and portable
• Manual and programmable data logging functions
• Single point data logging capability
• Handheld unit
• Aerosol concentration range 0.001 to 150 mg/m³

Applications

• Industrial/occupational hygiene surveys
• Indoor air quality investigations
• Point source location monitoring
• Baseline trending and screening
• Engineering control evaluations

Included Items

• Carrying case
• Rechargeable 3600 mAH Li-Ion battery
• Switching power supply with universal line cords
• TrakPro™ data analysis software
• Zero filter
• USB (device and host) computer cable
• Inlet cap (x2)
• Calibration impactor kit (with PM2.5 impactor and impactor plate)
• Screwdriver
• Sample extension tube (3-ft/1-m)
• Sheath air HEPA filters (x8)
• Filter removal tool
• Operation service manual
• Calibration certificate
• 2-year warranty

Download Software

• To download applicable software and/or firmware, please use the Software/Firmware Wizard.
