Water-based Wide-range Ambient Monitoring Scanning Mobility Particle Sizer (SMPS) 3938W89

SKU: 3938W89

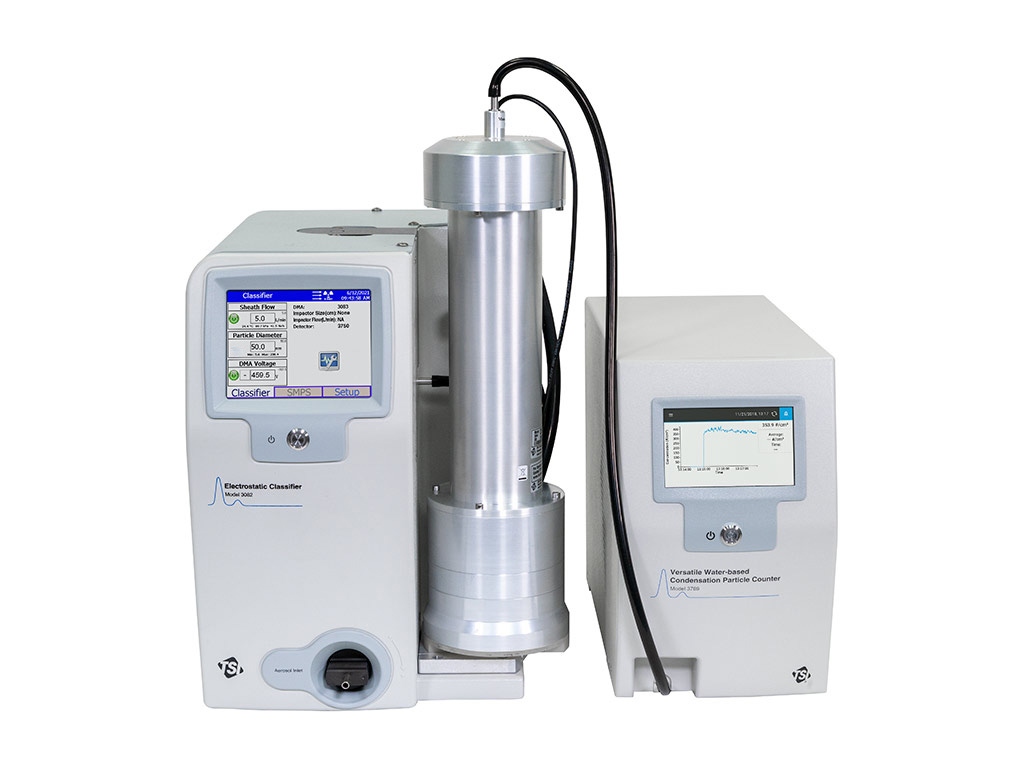

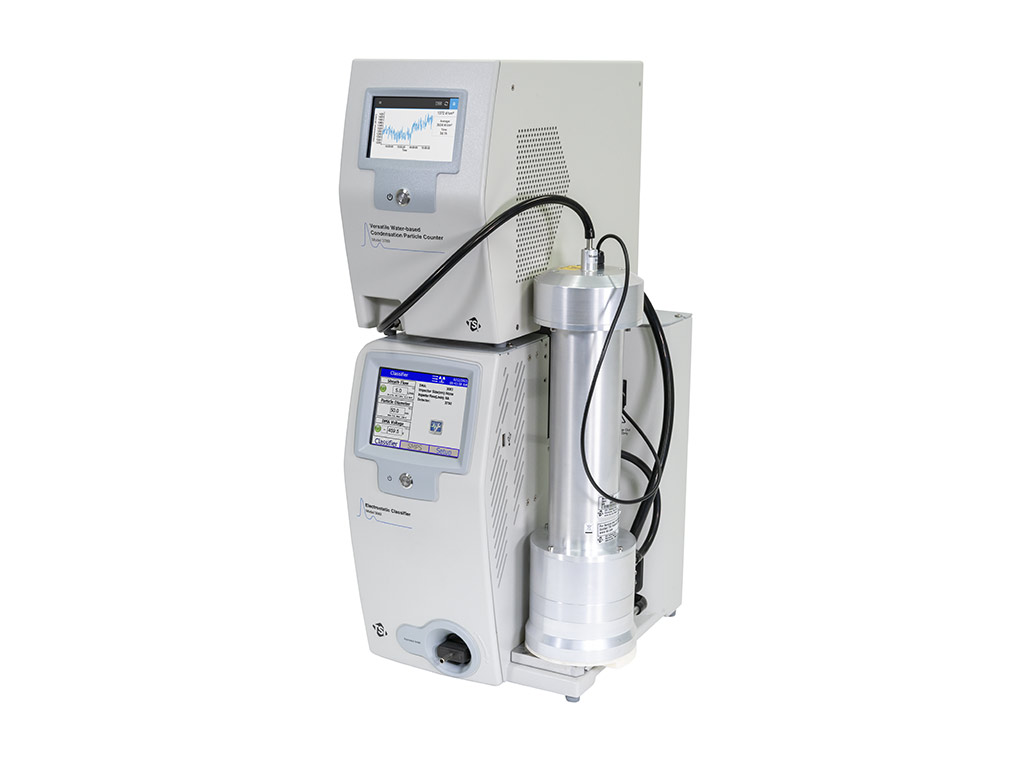

Continuously monitor ultrafine particles (UFPs) in the atmosphere with this particle sizing system that features a water-based Condensation Particle Counter (CPC). This component-based wide-range Scanning Mobility Particle Sizer (SMPS™) spectrometer measures UFP size distributions across a wide range (10 – 800 nm in a single scan), and uses readily-available distilled water in its particle detection technique. The data provided by this particle sizing system can be easily integrated into existing monitoring networks. Together with the sampling system and an optional stand-alone CPC, air quality monitoring stations have access to a complete solution to monitor UFPs.

Product Details

Since the late 1990’s the TSI Scanning Mobility Particle Sizer (SMPS™) series serves aerosol research with particle measurements covering nucleation, Aitken and accumulation modes (from 1 nm to 1 µm). Soon the SMPS™ moved out of the academic laboratories and was established in atmospheric monitoring stations of research centers, Environmental Protection Agencies (EPAs) and the Global Atmosphere Watch (GAW) program.

The new updates included in the model 3938W89 for ambient air monitoring extend the size range of the SMPS™ to cover 10 nm to 800 nm in one single scan with the Differential Mobility Analyzer (DMA) 3083. We also modernized the matching sampling system to provide a one-stop solution for air quality monitoring. The updated optional software provides features of particular value for atmospheric monitoring: particle loss correction of the sampling system, extended auto-export of data, and power-outage recovery mode.

New to monitoring of ultrafine particles? TSI provides education and support from the basics to the installation.

Applications

  • Air quality monitoring
  • Environmental chamber studies
  • Indoor air quality studies
  • Health effect studies
  • Basic aerosol research

Features and benefits

  • Extended particle size range from 10 nm to 800 nm
  • New DMA 3083 based on TROPOS Vienna type DMA
  • Water-based CPC uses convenient distilled water; no volatile organics
  • Scan time down to 1 minute: Capture dynamic aerosol distributions (for example, near airports)
  • Designed for continuous use 24/7/365
  • Capable of providing a common log of particle data, relative humidity and temperature when used with the Aerosol Humidity and Temperature Sensor RHT3000
  • The model series 3938 allows users to exchange components to fit various particle size ranges.

Service

Service, calibration, and repair options

There are two levels of service to consider based on your needs: Clean and Calibrate, and Repair, Clean and Calibrate. As every instrument model is unique, please refer to the model-specific service option cards below for details on what each package includes:

Learn more about TSI particle instrument services

Preventative Maintenance Guide
