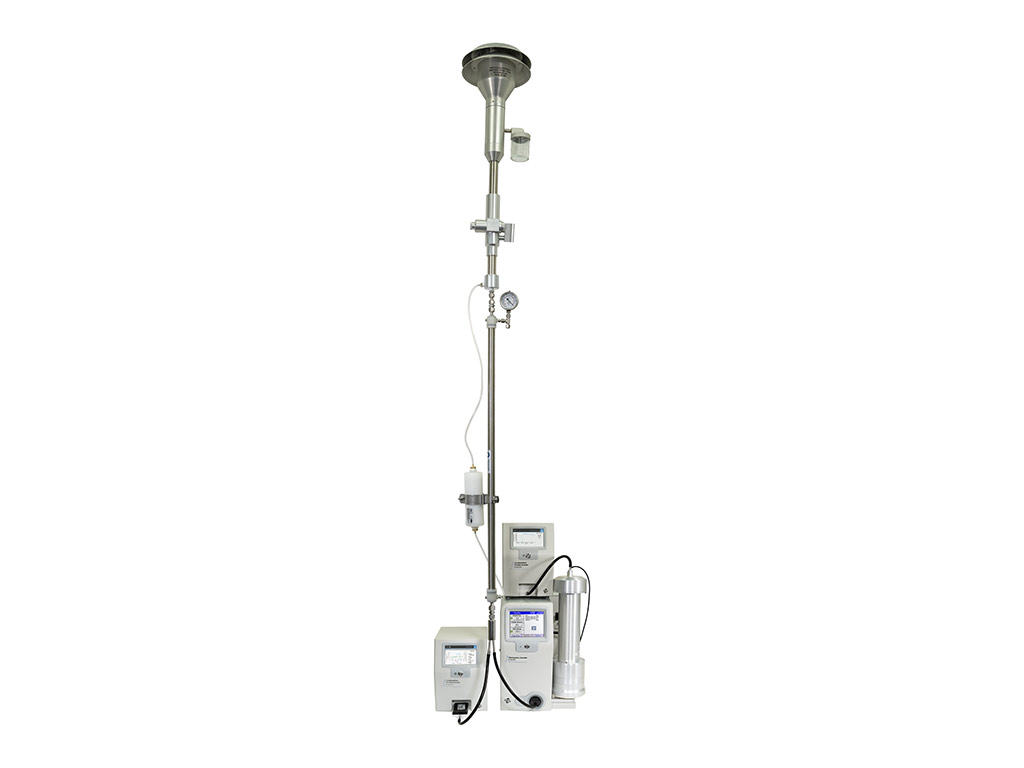

Sampling System for Atmospheric Particles 3750200

SKU: 3750200

Representative sampling of ultrafine particles requires appropriate conditioning and transport of the aerosol sample. The model 3750200 is designed to deliver a representative sample of ambient air to particle measurement instruments.

Product Details

This sampling system was designed to be paired with TSI Condensation Particle Counters (CPCs) and Scanning Mobility Particle Sizer Spectrometer SMPS™ of the newest generation. The model 3750200 follows all requirements specified in the European standards CEN/TS 16976 and 17434.

Aerosol enters through a PM10 head, passes through an optional PM2.5 cyclone, and is then dried to <40% relative humidity. An isokinetic flow splitter distributes particles to one or multiple attached instruments (CPC and/or SMPS).

Applications

  • Air quality monitoring
  • Atmospheric research

Features and Benefits

  • PM10 sampling head
  • Optional PM2.5 cyclone
  • Nafion™ membrane dryer to reduce relative humidity to < 40%
