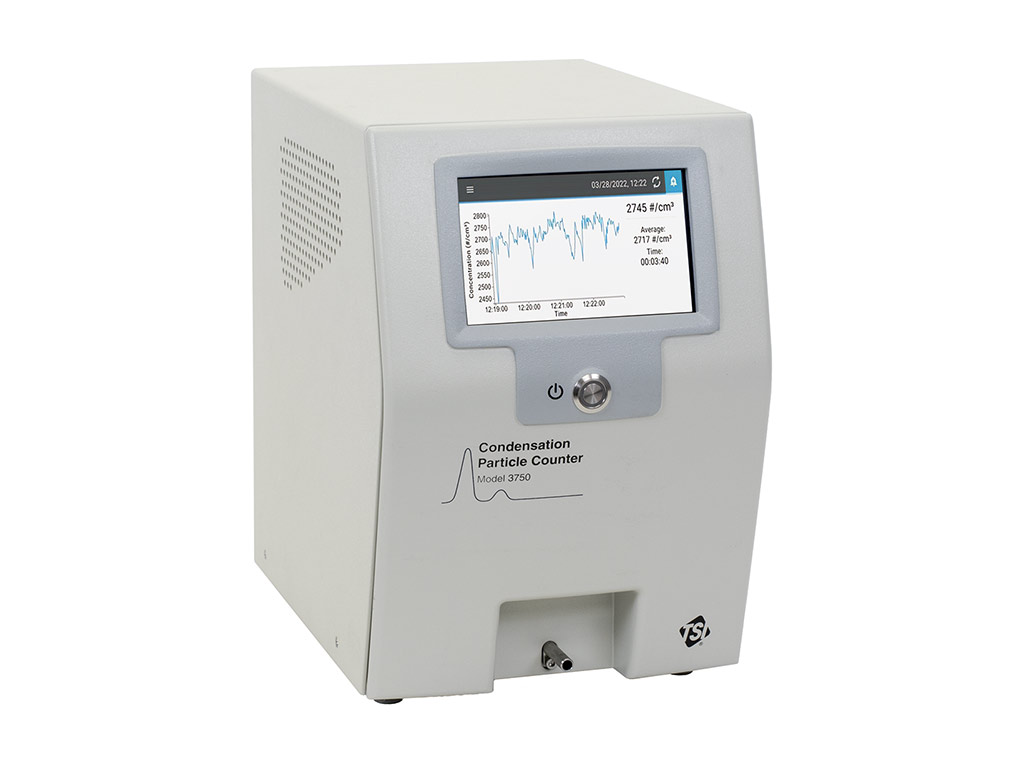

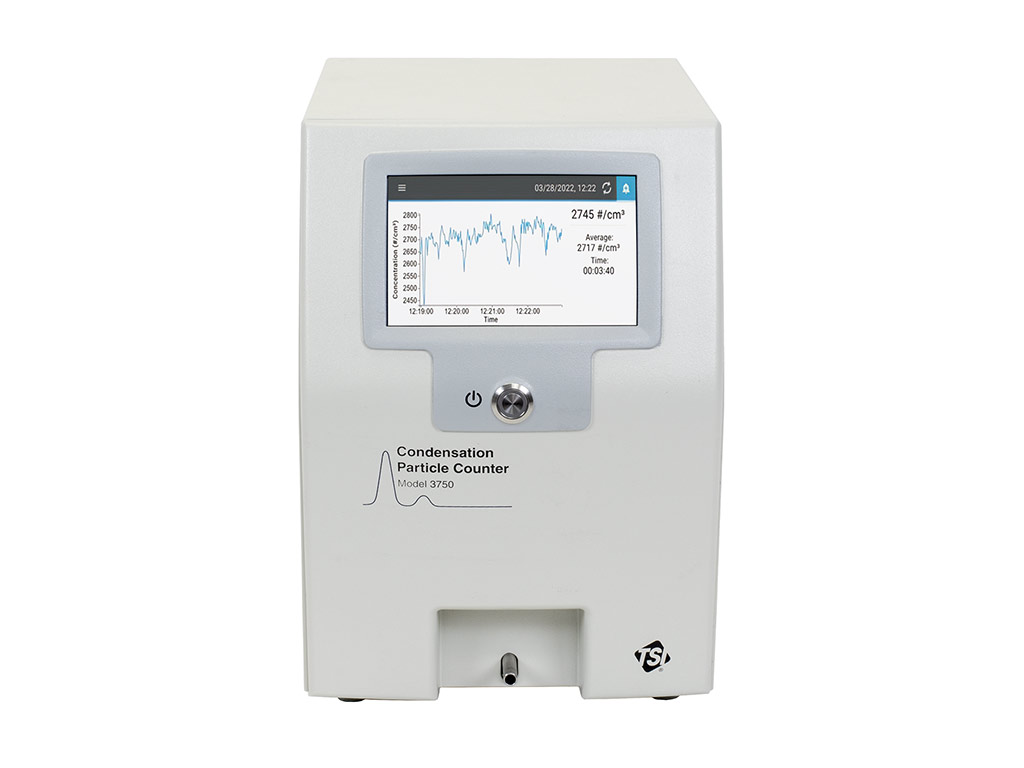

Condensation Particle Counter 3750

Product Details

For decades, TSI® Condensation Particle Counters (CPCs) have been the gold standard in nanoparticle counting. The CPC 3750, our latest innovation, continues this legacy of excellence.

Using industry-standard butanol as the working fluid, the CPC 3750 is the next generation of a CPC design that has served the nanoparticle counting community for decades. Its D50 of 7 nm provides visibility into concentrations of sub-10 nm particles, granting you invaluable insights into your nanoparticle samples. Its single flow mode – 1 L/min – simplifies your operation.

The CPC 3750 offers flexibility in operation—it can be utilized with software or independently. When used without software, data is stored directly on the CPC for future access.

Furthermore, the CPC 3750 is an important component in the most common Scanning Mobility Particle Sizer™ (SMPS™) configuration (along with TSI's Long DMA 3081A). This established configuration has a proven track record across a wide range of measurement applications.

In summary, the CPC 3750 offers an extended concentration range, optimal counting statistics, and seamless compatibility with SMPS™ technology. As the ultimate choice for researchers, scientists, and professionals in various fields, it's your key to advancing nanoparticle counting in your work. Trust in the reliability and precision that TSI® instruments have consistently delivered through the years.

Applications

• Basic aerosol research
• Filter testing
• Combustion
• Health and atmospheric studies

Features and benefits

• Extended concentration range up to 100,000 particles/cm³
• Extended size range down to 7 nm (D₅₀) - improved counting efficiency for SMPS™ spectrometer
• Data rate up to 50 Hz - capture highly dynamic processes
• Reliable internal memory storing weeks of data for continuous measurement
• Water-removal system - compatible with high-humidity environments
• Improved diagnostics with Pulse Height Monitoring
• Fast response to rapid changes in aerosol concentration (T10-90 < 1 sec)
• Automatically shuts off of flow when inlet is blocked
• Upgradeable to 1nm-CPC with compatible Nano Enhancer
