AccuBalance Air Capture Hood 8380

SKU: 8380

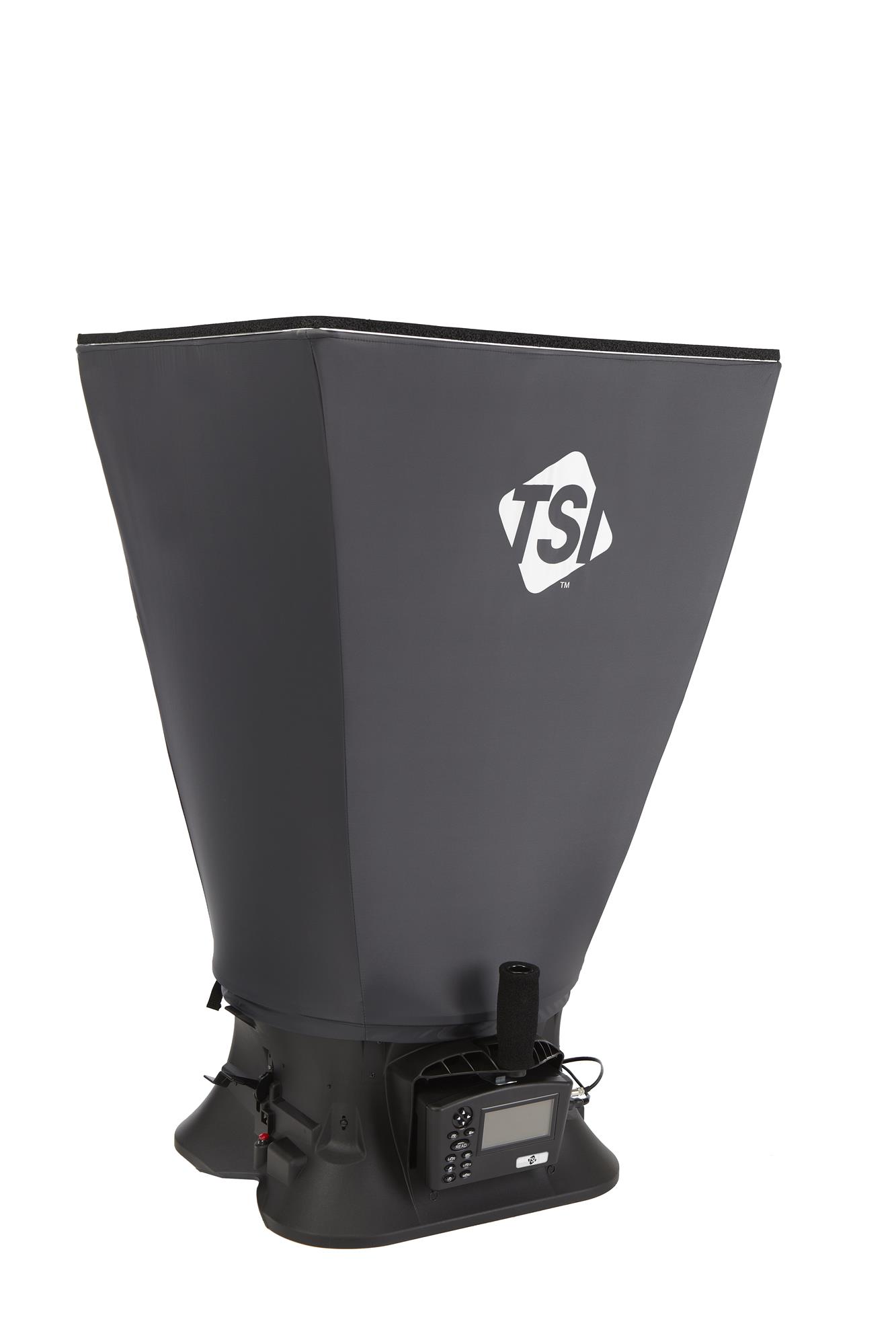

The AccuBalance® Air Capture Hood 8380 is a multipurpose electronic air balancing instrument primarily used for efficiently taking direct air volume readings at diffusers and grilles. It features a detachable micromanometer which can be used with optional probes for increased flexibility in multiple measurement applications.

Product Details

Offering durable, trouble-free operation, this lightweight, ergonomically designed capture hood kit saves time and money by combining multiple measurement tools into one package. The AccuBalance® Air Capture Hood 8380 helps you create healthy and energy efficient environments while meeting local codes, guidelines and regulations for ventilation systems.

Only available outside of North America. Please see the Alnor Balometer® Capture Hood EBT731 for availability in North America.

Applications

HVAC commissioning
Clean room certification
Troubleshooting HVAC systems
Testing and balancing HVAC systems

Included Items

2 ft. x 2 ft. (610 mm x 610 mm) air capture hood/frame/base
Detachable micromanometer
Swirl X Flow Conditioner
(4) AA size rechargeable NiMH batteries
Multi-country AC adapter
18 in. (46 cm) Pitot probe
(2) Static Pressure probes
16 ft (4.8 m) Neoprene tubing
Wheeled luggage-style carrying case
NIST traceable calibration certification
Downloading software
USB interface cable
Manual

Features and benefits

Ergonomic design and ultra light weight for easy, one-person operation
Automatically senses and displays supply or return flows, saving time on the job
Back pressure compensation ensures accurate readings
Multiple hood sizes available for easy, cost effective use across multiple jobs
Detachable digital micromanometer offers flexibility to use in multiple applications

Detachable Micromanometer Features and Benefits

Accurately measures pressure, velocity and flow to help you meet industry standards
Auto-zeroing pressure sensor reduces user-steps and saves time
Automatic density correction increases reading accuracy
Intuitive menu structure allows for ease of use and setup
Large graphic display with backlight offers easy-to-use interface
- Displays up to five measurements simultaneously
- On-screen messages and instructions
- Programmed for multiple languages
Integrated Log-Tchebycheff duct traverse application simplifies calculations
Bluetooth communications for transferring data or remote polling
Includes downloading software with USB cable
Accommodates optional pitot, air flow (straight pitot), temperature/relative humidity, velocity matrix, or thermoanemometer probes for use in multiple applications
