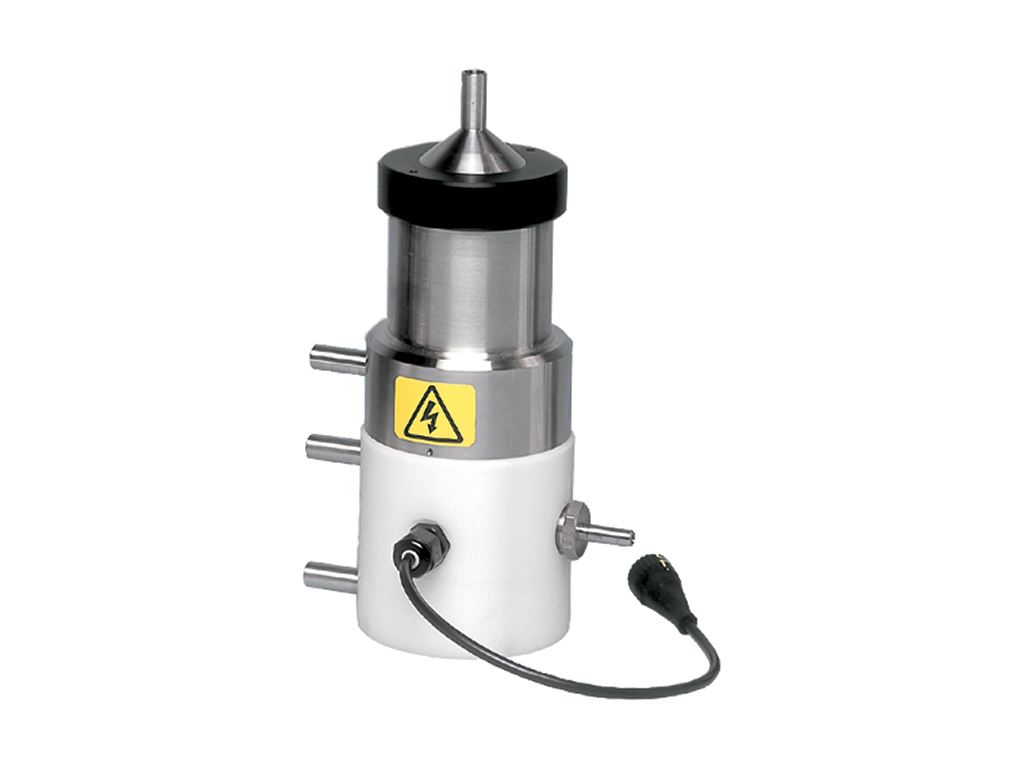

Differential Mobility Analyzer 3085

Product Details

The DMA consists of two electrodes and a flow path in which particles move. When a voltage is applied charged particles are diverted from the straight path in the resulting electrical field and classified based on their electrical mobility. When the voltage is constant the DMA generates monodisperse aerosols from a polydisperse particle source. When the voltage is varied the output is a size classified aerosol that when counted with a Condensation Particle Counter (CPC) gives the particle size distribution.

The Model 3085A DMA, or Nano DMA, offers a particle size range from 2 to 165nm. The 3085A enables researchers to focus their efforts on the smallest particle sizes with relevance for their work. In wide use across numerous applications, TSI’s Nano DMA is a valuable tool for atmospheric studies, basic particle research, materials synthesis and more.

The model 3082 Classifier allows you to swap DMA columns for additional versatility. If your Electrostatic Classifier already has a Long DMA, order the Model 3085A Nano DMA for additional particle sizing capabilities.

The Nano DMA was developed in cooperation with the University of Minnesota Particle Technology Laboratory and Gerhard Mercator University.

Applications

• Monodisperse aerosol generation
• Particle sizing

Features and benefits

• Analyze particles from 2 to 150nm
• Key component with SMPS system
