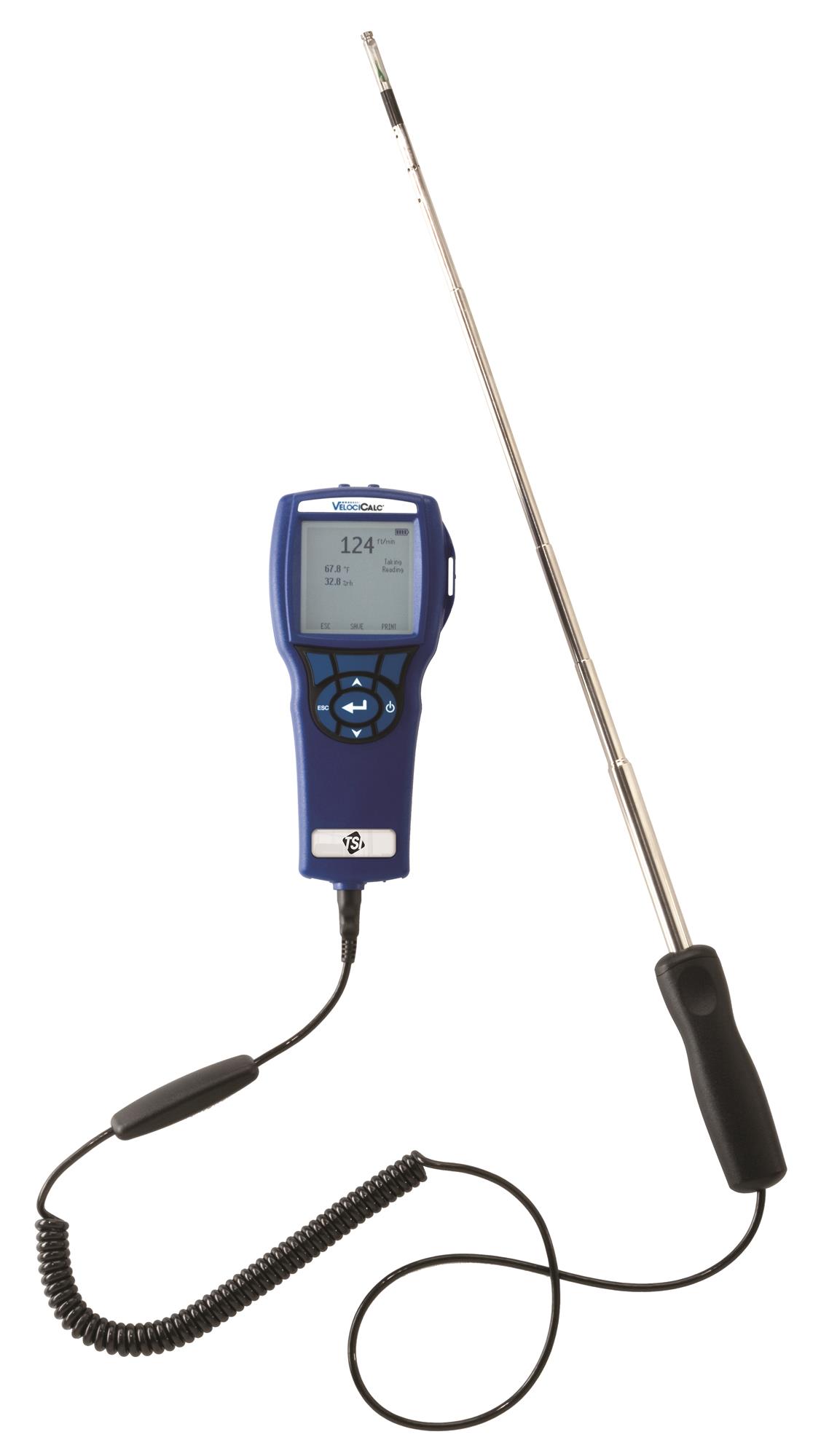

VelociCalc Multi-Function Ventilation Meter 9565

SKU: 9565

Measures velocity, temperature, humidity, differential pressure, barometric pressure and has inputs for two K alloy thermocouples. Includes a straight, telescopic probe and data logging.

Request A Quote



Other Models Available Description Request a Quote
9565-AC Includes ISO 17025 accreditation for temperature, air velocity, humidity and differential pressure. request a quote
9565-A  Includes articulated probe. request a quote
9565-A-AC Includes articulated probe and ISO 17025 accreditation for temperature, air velocity, humidity and differential pressure. request a quote
9565-P Measures differential pressure, barometric pressure and has inputs for two K alloy thermocouples. request a quote
9565-P-AC Measures differential pressure, barometric pressure and has inputs for two K alloy thermocouples. Includes ISO 17025 accreditation for differential pressure. request a quote
9565-X Measures barometric pressure and has inputs for two K alloy thermocouples. request a quote
9565-NB This model does not have Bluetooth® capabilities. request a quote
9565-NB-AC Includes ISO 17025 accreditation for temperature, air velocity, humidity and differential pressure. This model does not have Bluetooth capabilities. request a quote
9565-A-NB Includes articulated probe. This model does not have Bluetooth capabilities. request a quote
9565-A-NB-AC Includes articulated probe and ISO 17025 accreditation for temperature, air velocity, humidity and differential pressure. This model does not have Bluetooth capabilities. request a quote
9565-P-NB Measures differential pressure, barometric pressure and has inputs for two K alloy thermocouples. This model does not have Bluetooth capabilities. request a quote
9565-P-NB-AC Measures differential pressure, barometric pressure and has inputs for two K alloy thermocouples. Includes ISO 17025 accreditation for  differential pressure. This model does not have Bluetooth capabilities. request a quote

Product Details

The VelociCalc® Multi-Function Ventilation Meter 9565 features a menu-driven user interface for easy operation in your local language. On-screen prompts and step-by-step instructions guide the user through instrument setup, operation and field calibration.

The 9565 also features an ergonomic, over-molded case design with probe holder and a keypad lockout to prevent tampering during unattended use. The 9565 model includes the Straight Air Velocity Probe 964 and is designed to work with a wide range of plug-in probes.

Applications

  • HVAC testing and balancing
  • Clean room testing
  • Biological safety cabinet and laboratory fume hood testing
  • HVAC commissioning and troubleshooting
  • IAQ investigations
  • Thermal comfort studies
  • Ventilation evaluations
  • Process air flow testing

Included items:

  • 9565 instrument
  • 964 probe
  • Static pressure probe (1)
  • Tubing, 8 ft. (2.4 m)
  • USB cable with LogDat2™ and TrakPro™ downloading software
  • Hard carrying case
  • Four alkaline batteries
  • Operation and service manuals
  • Calibration certificate

Features and benefits

  • Straight Air Velocity Probe 964 measure air velocity, temperature and relative humidity
  • Includes differential pressure sensor
  • Best-in-class air velocity accuracy
  • Optional “smart” plug-in probes, including VOC, CO2, and rotating vane probes
  • Accommodates up to two K-alloy thermocouples
  • Large graphic display
    • Displays up to five measurements simultaneously
    • On-screen messages and instructions
    • Program for local language
  • Intuitive menu structure allows for ease of use and setup
  • Multiple data logging formats
  • Bluetooth communications for transferring data or remote polling
  • Includes TrakPro™ and LogDat2™ downloading software with USB cable
