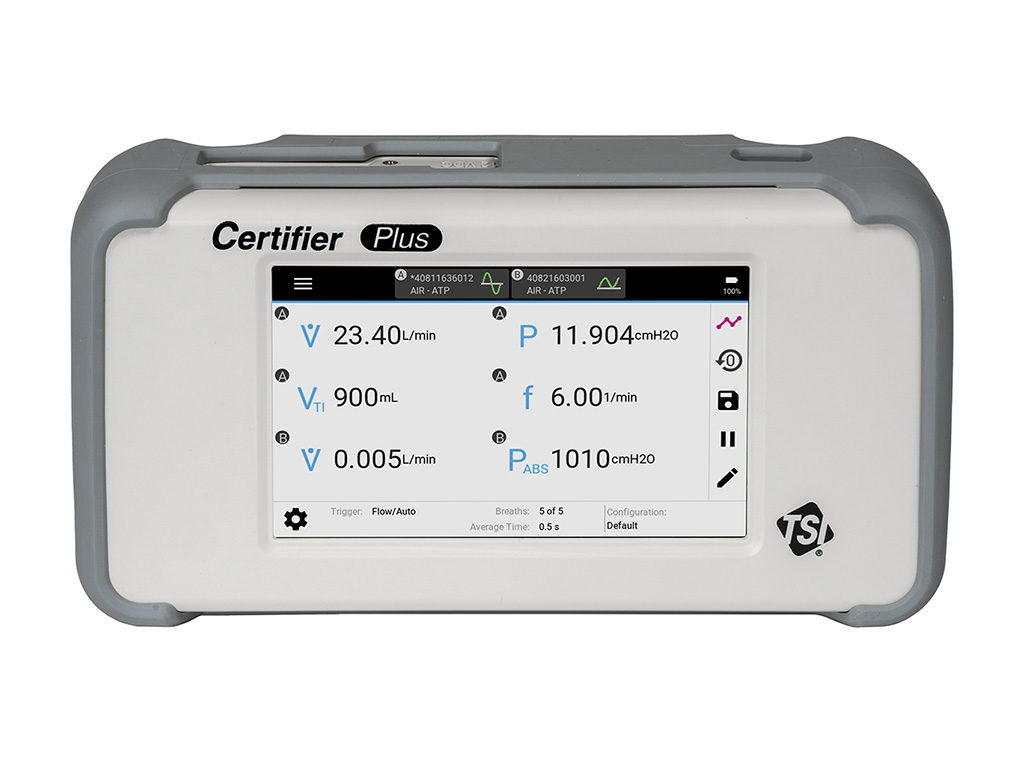

Certifier™ Plus Test System Full Kit 4080-F

Model Number: 4080-F

A handheld, full-featured system capable of testing virtually all models of ventilators: adult, pediatric, anesthesia, neonatal, and high-frequency. It can also test a variety of other medical equipment such as anesthesia gas delivery machines, air-oxygen blenders, medical insufflators, oxygen concentrators, CPAPs, and other devices with pneumatic gas flows.

ISO 17025 Accredited Version

Request a Quote

Product Details

The Certifier™ Plus Test System 4080-F is made up of a Certifier™ Plus High-Flow Module Kit 4081, Certifier™ Plus Interface Module Kit 4089, and an Oxygen Sensor Kit 4073. This multi-function pneumatic test system can measure 28 different test parameters and graph data in real-time. Pressure and temperature compensated bi-directional flow sensors deliver high accuracy gas flow measurements with a fast rate of response and industry-leading, low-pressure drop. Users can measure using STP, ATP, BTPS, BTPD, or user-defined gas conditions and test breath rates up to 1500 bpm.

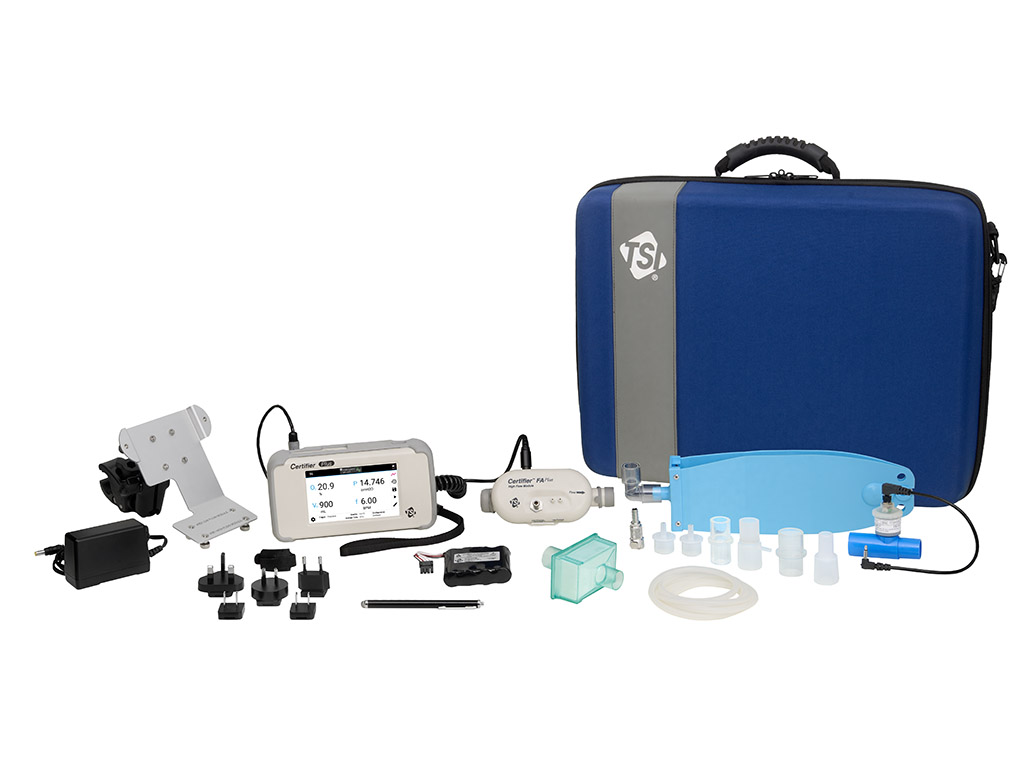

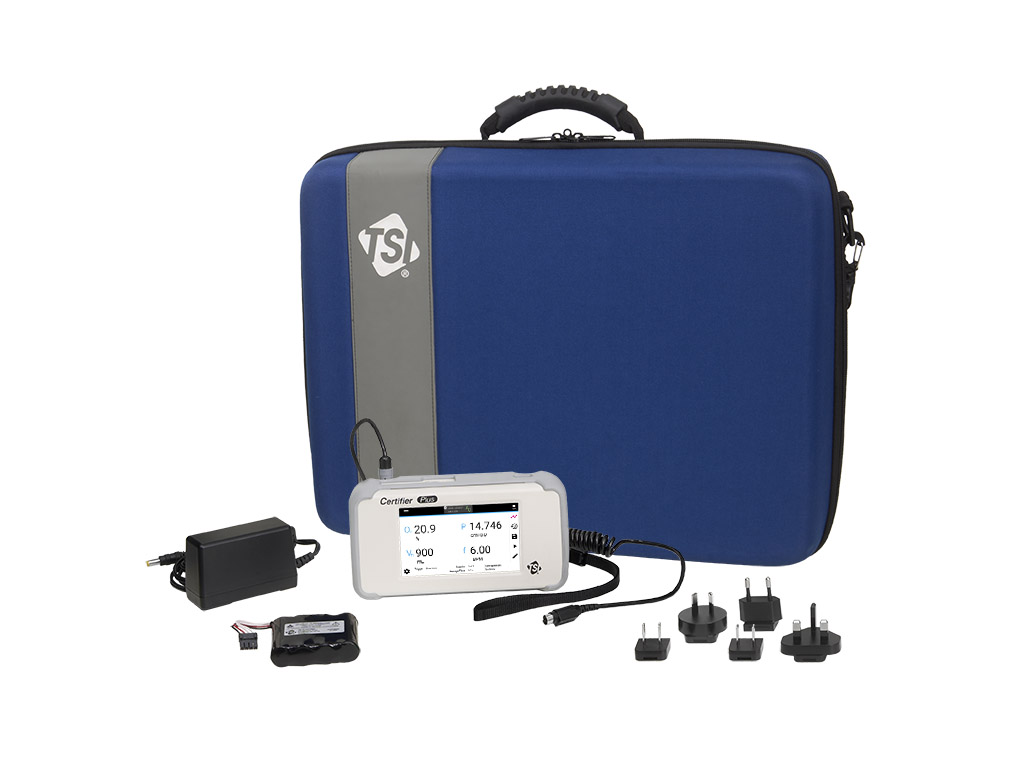

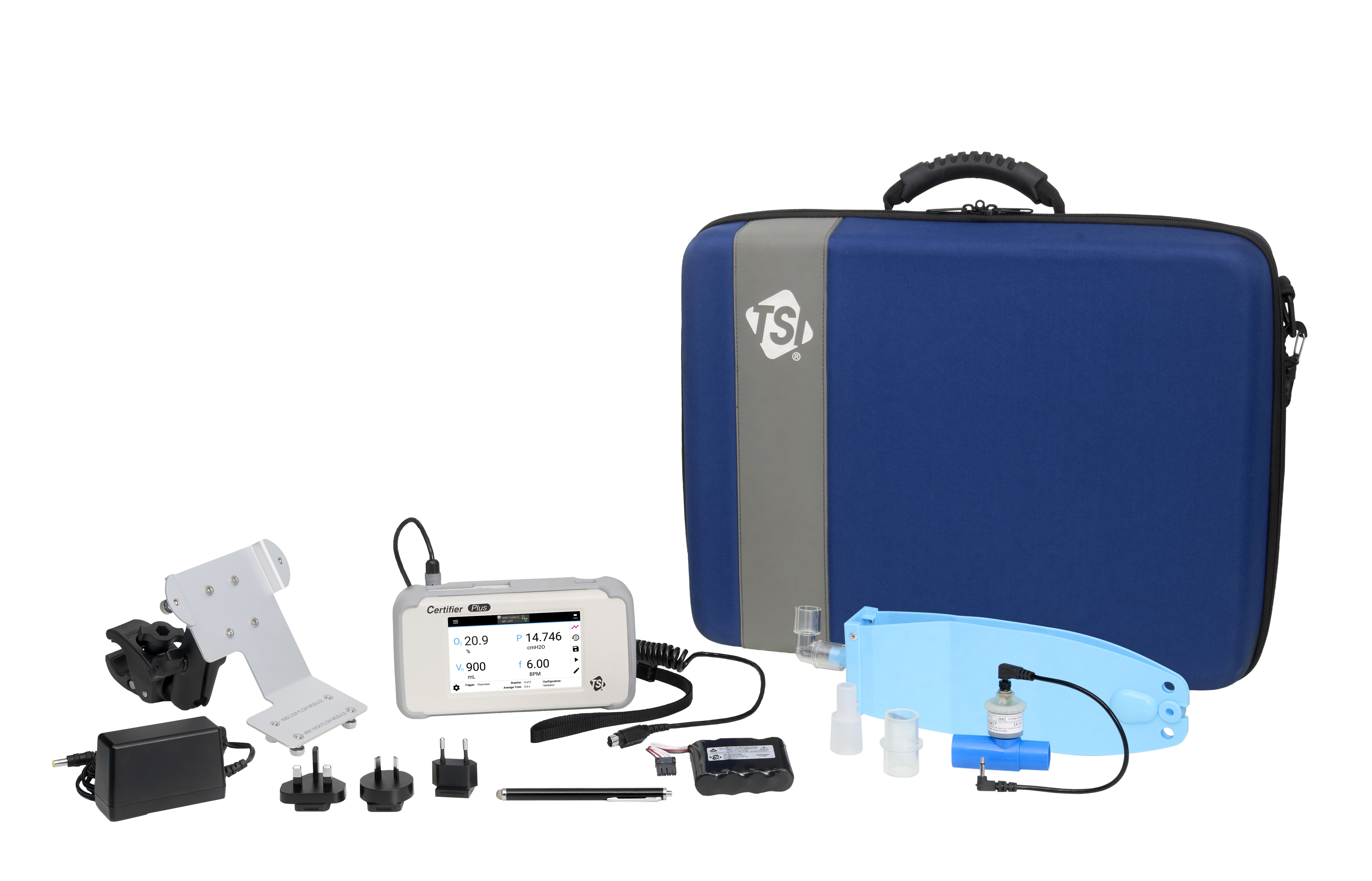

The Certifier™ System 4080-F comes with a full kit of accessories that includes an inlet filter, airway pressure fitting, (5) adapters, silicone tubing, flow module cable, power supply with plug set, rechargeable Li-ion battery (installed), protective cover, 1L test lung, RAM® mounting kit (interface + flow module), capacitive touch stylus, and fitted deluxe carrying case.

4080-F Test Parameters

Flow Rate, Peak Flow, and Minimum Flow
Inhaled and Exhaled Tidal Volumes, Minute Volume
Low Pressure (Differential)
Peak, PEEP, and Minimum Pressures
Mean Airway Pressure
High Pressure, Barometric Pressure, Plateau Pressure
Static Compliance
Inspiratory and Expiratory Times
Inspiratory Pause Time, Inspiratory Rise Time
I:E Ratio, I:E Ratio Including Pause Time
Respiratory Rate
Gas Temperature
Oxygen Concentration

Features and Benefits

Durable design - includes 2 year standard warranty
Large, high resolution color display and real-time graphing for easy data viewing
Simple to use with touchscreen operation and automatic breath triggering
Create user configurations to enable faster test setups
Li-ion rechargeable batteries provide up to 8 hours of continuous operation
Reporting made easier with screen captures, data acquisition, and easy USB export
Multiple mounting options saves benchtop space and optimizes your test setups
Dual flow module capability for flow module self-checks and simultaneous high and low flow operation
