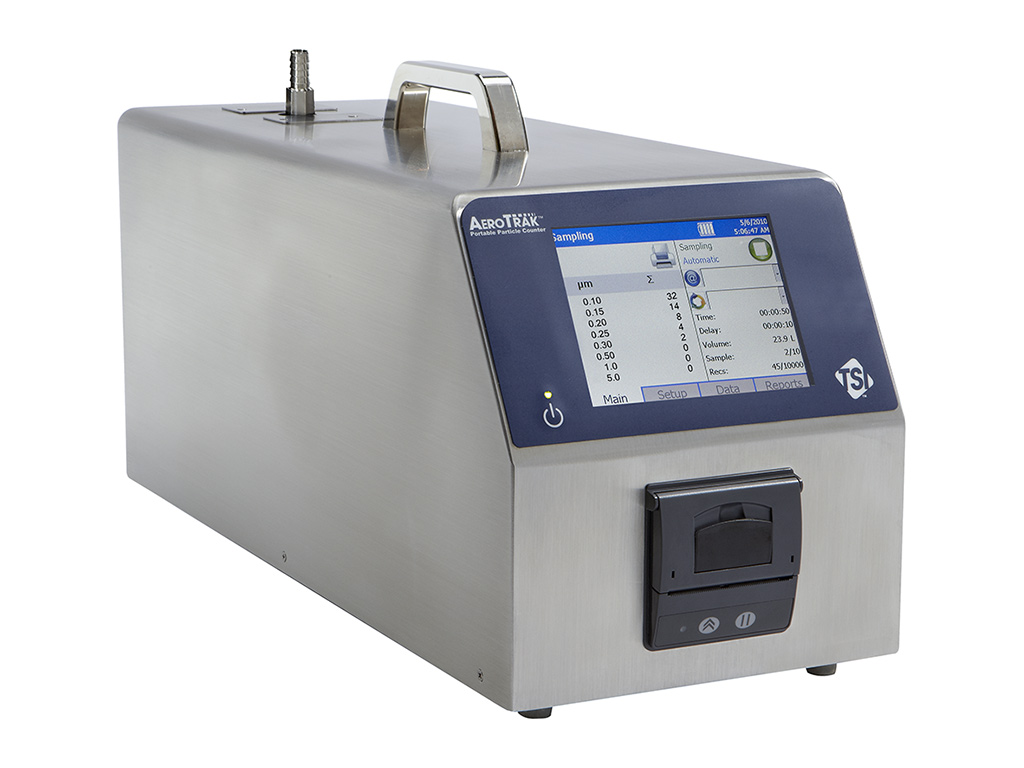

AeroTrak Portable Particle Counter 9110

Model Number: 9110-01

Flow Rate 1 CFM (28.3 L/min) ±5% accuracy / Particle Size Range 0.100 to 10.0 µm

Product Details

The TSI AeroTrak® Portable Particle Counter Model 9110 offers an accurate measurement of particles down to 0.100 μm! This is made possible utilizing a patented HeNe laser technology that is low maintenance with an enhanced signal to noise ratio. The Model 9110 is ideal for performing ISO-14644-1 classifications for Class 1 and Class 2 cleanrooms. This instrument is designed for clean room monitoring, process tool monitoring, and filter test applications.

The Model 9110 can generate pass/fail reports for ISO 14644-1 via the onboard printer and the supplied TrakPro™ Lite Secure download software. Multiple particle counter configurations can be conveniently stored and uploaded as needed. This product can be used as a standalone particle counter or integrated into a facility monitoring system like TSI’s FMS 5.

The Model 9110 complies with all the stringent requirements set forth in ISO 21501-4. It is calibrated with NIST traceable PSL spheres using TSI’s world-class Classifier and Condensation Particle Counters.

Applications

  • Particle contamination monitoring
  • Installed filter leak testing
  • Cleanroom certification

Download Software

To download applicable software and/or firmware, please use the Software/Firmware Wizard.

Features and Benefits

  • Accurately measures particles at 0.100 μm
  • 0.100 to 10.0 μm size range
  • Up to eight channels of simultaneous data
  • 1.0 CFM (28.3 L/min) flow rate
  • Complies with all requirements of ISO 21501-4
  • Best choice for testing Class 1 and 2 Cleanrooms
  • Onboard reports for ISO-14644-1, EU GMP Annex 1, and FS209E
  • External certification reports via TrakPro™ Lite Secure
  • Utilizes enhanced HeNe laser
  • Highly repeatable and reliable measurements/data
  • Data storage: 250 zones, 999 locations, and 10,000 samples
  • USB, USB storage device, ethernet data transfer and pulse outputs
  • Industry’s loudest audible alarm
  • Allows storage and recall of specific Recipes and Zone configurations
  • Displays up to three environmental parameters
  • Stainless steel enclosure
  • Seamless integration with M32-01 manifold
