VelociCalc Multi-Function Ventilation Meter 9600

Model Number: 9600

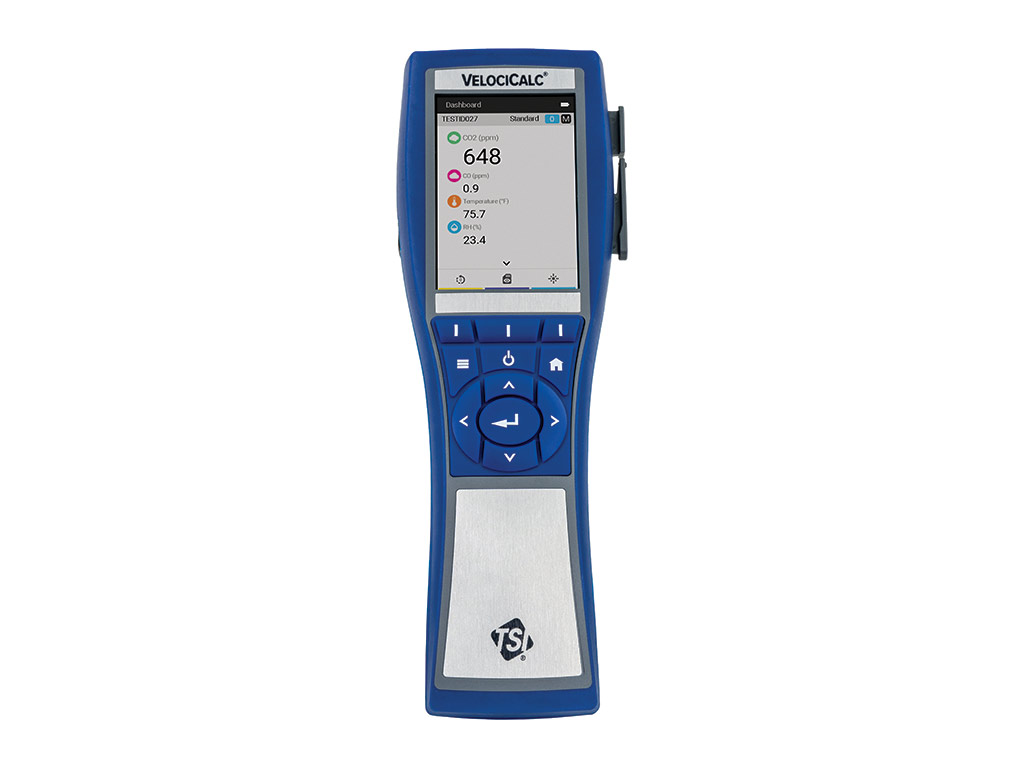

The 9600 VelociCalc is a portable, handheld Multi-Function Ventilation and IAQ test instrument featuring a menu-driven user interface for easy operation. The high-resolution color screen displays multiple measurements simultaneously in real-time with on-screen prompts to guide you through instrument setup and operation.

This product is available in select countries in North America, Europe and Asia. Please reach out to your sales representative for more details.

Product Details

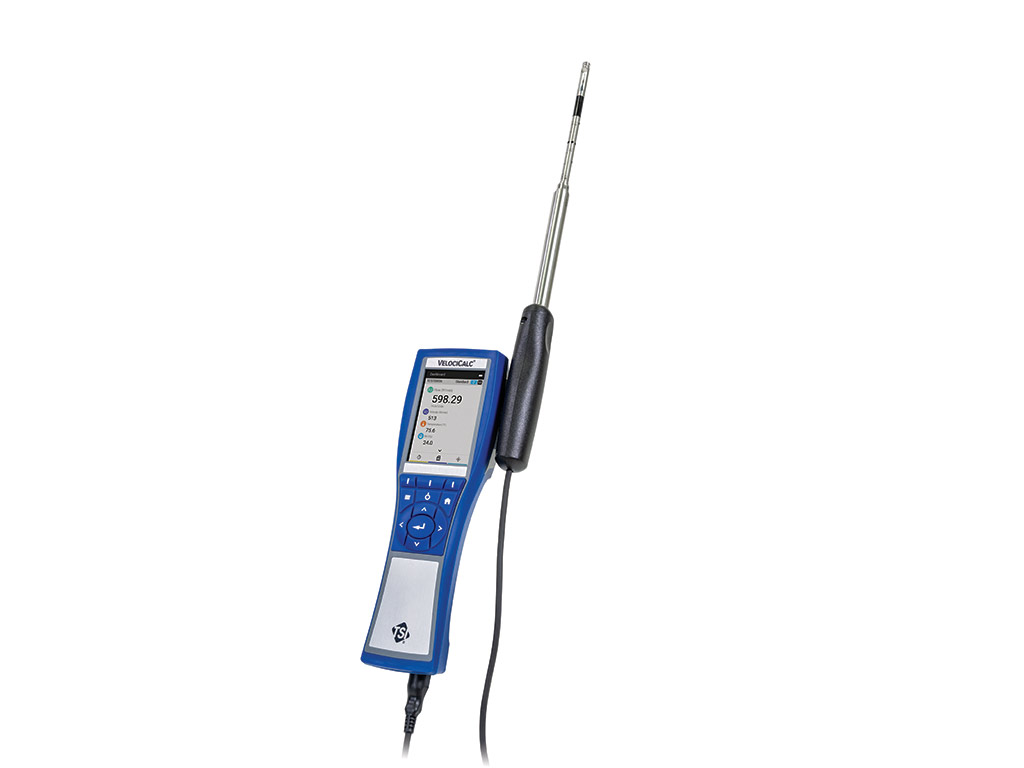

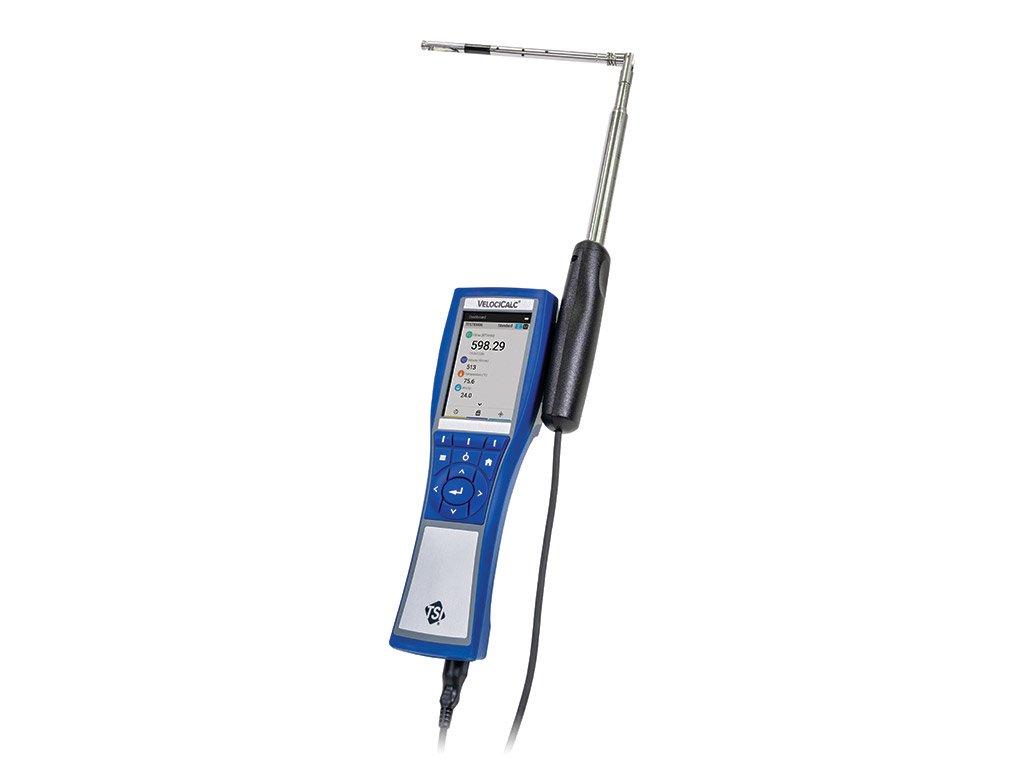

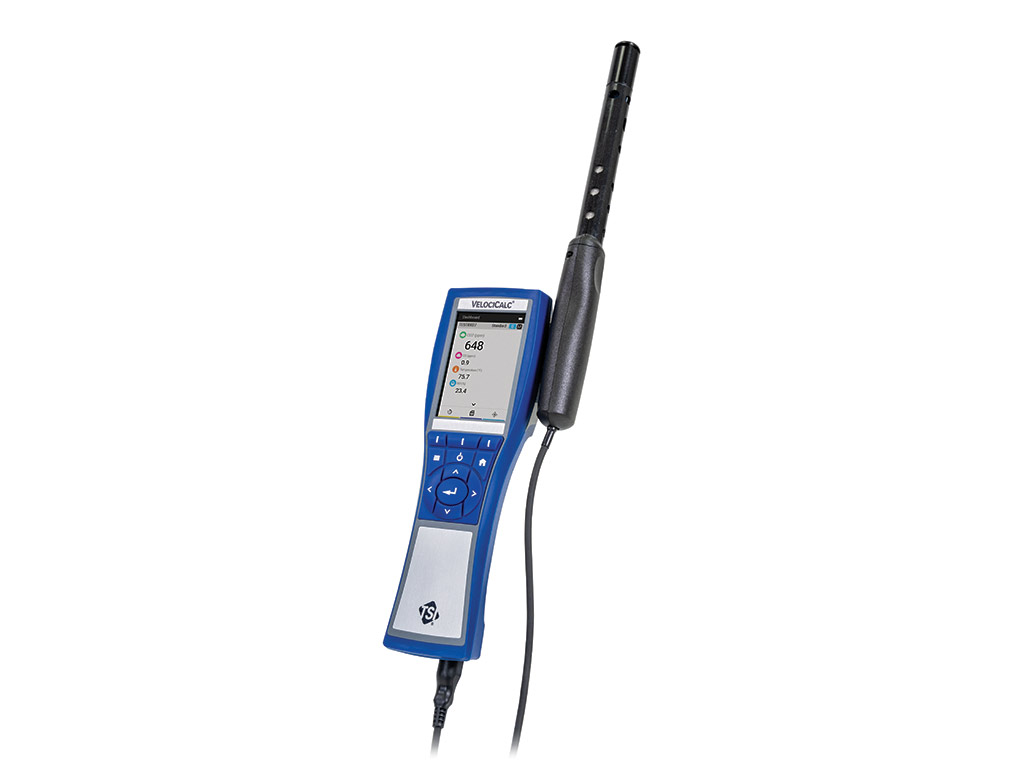

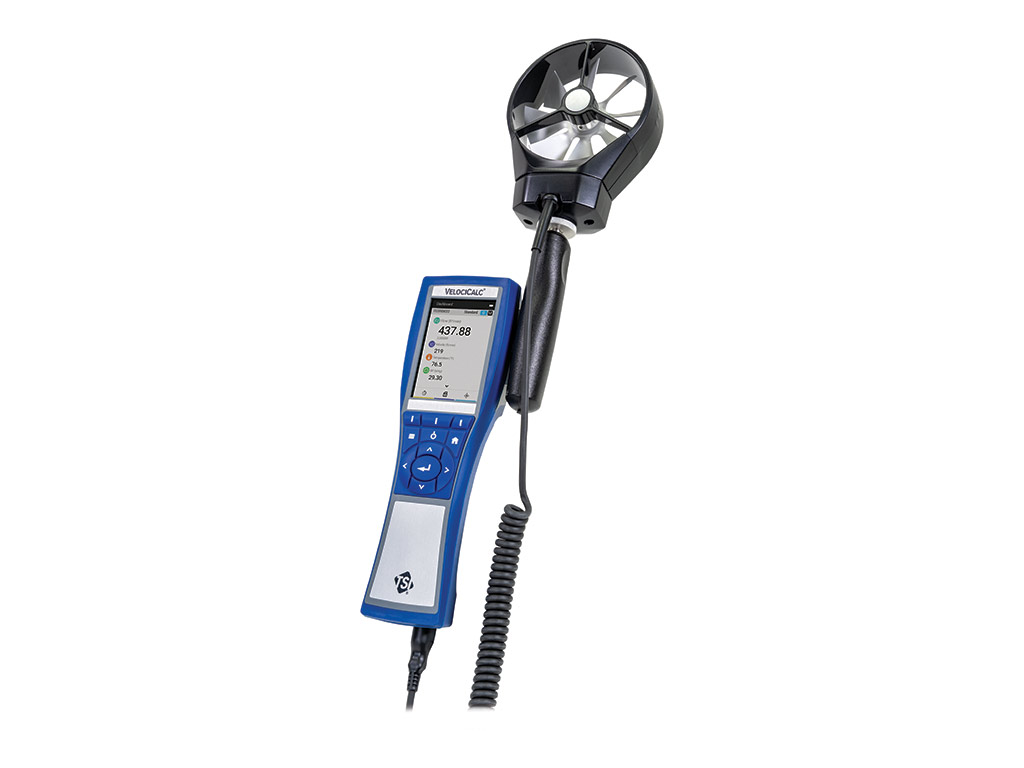

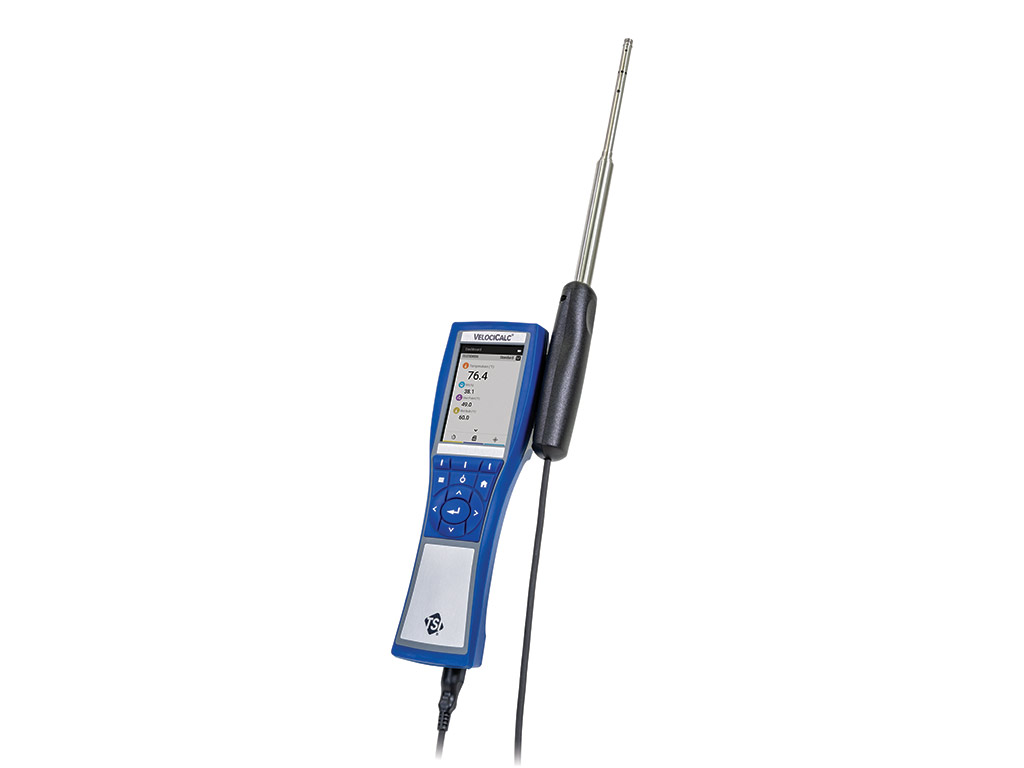

The VelociCalc® meter Model 9600 is designed to work with a wide range of plug-in probes for measuring air velocity, temperature, relative humidity, CO and CO2. Its ergonomic design includes a probe holder and integrated magnets allowing for attachment to exposed ductwork or other metallic surfaces for hands-free operation. The Model 9600 includes a built-in workflow for calculating the percentage of outside air used to determine ventilation effectiveness in a building or room when used with an IAQ probe.

APPLICATIONS:

  • HVAC testing and balancing
  • Clean room testing
  • Biological safety cabinet and laboratory fume hood testing
  • HVAC commissioning and troubleshooting
  • IAQ investigations
  • Ventilation effectiveness with percent outside air calculation

INCLUDED ITEMS:

  • 9600 Instrument
  • Wrist strap
  • Carrying case
  • 4 AA alkaline batteries
  • USB cable
  • Owner’s manual & calibration certificate

FEATURES AND BENEFITS:

  • Large, high-resolution color display
  • Intuitive menu structure allows for ease of use and setup
  • Optional smart plug-in probes, including thermoanemometer, rotating vane and CO2 probes with calibration certificates
  • Input for one K-alloy thermocouple
  • User-customizable soft keys for quick access to common functions
  • Calculate the percentage of outdoor air with IAQ probe
  • Integrated magnets for hands-free operation
  • Supports multiple languages
  • Air density compensation with on board barometric pressure sensor and temperature input
  • Print data from instrument with optional USB portable printer (802241)

OPTIONAL PROBES: 792, 794, 960, 962, 964, 966, 980, 982, 995, and 800220

Other Models Available Description Request a Quote
9600 9600 Meter measures air velocity, temperature, relative humidity, CO and CO2 with probe options. request a quote
9600-960 9600 meter with 960 probe with standard calibration certificates. request a quote
9600-962 9600 meter with 962 probe with standard calibration certificates. request a quote
9600-980 9600 meter with 980 probe with standard calibration certificates. request a quote
9600-982 9600 meter with 982 probe with standard calibration certificates. request a quote
9600-995 9600 meter with 995 probe with standard calibration certificates. request a quote
9600-AC Air velocity meter with ISO 17025 accredited calibrations request a quote
AC9600-980 9600 & 980 with ISO 17025 accredited calibrations request a quote
AC9600-982 9600 & 982 with ISO 17025 accredited calibrations request a quote
AC9600-995 9600 & 995 with ISO 17025 accredited calibrations request a quote
AC9600-960 9600 & 960 with ISO 17025 accredited calibrations request a quote
AC9600-962 9600 & 962 with ISO 17025 accredited calibrations request a quote

*IAQ and RV probe accreditations are only available in Europe and the UK.
