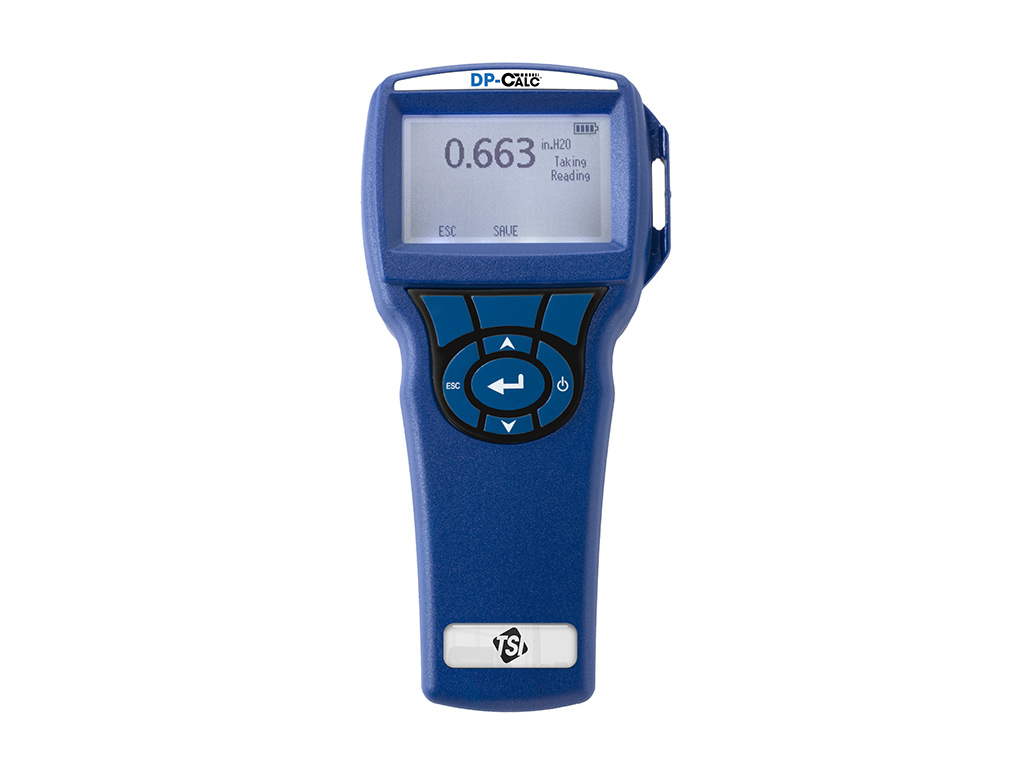

DP-Calc Micromanometer 5825

SKU: 5825

The DP-Calc™ Micromanometer 5825 allows you to easily make HVAC pressure measurements. This robust instruments can be used with pitot probes to measure duct velocity.

Request A Quote



Other Models Available Description Request a Quote
5825-AC Includes ISO 17025 accreditation for differential pressure.  request a quote

Product Details

The high performance DP-Calc 5825 can calculate flow and has data logging capabilities.

Applications

  • HVAC commissioning and troubleshooting
  • Testing and balancing
  • Pitot tube duct traverses
  • Static pressure measurements
  • Pressure drop across filters, coils, fans, and diffusers
  • Environmental air flow testing

Included Items

  • Instrument
  • Hard carrying case
  • 4 alkaline batteries
  • Operation and service manual
  • Calibration certificate(2)
  • 1.2-m rubber tubes
  • Static pressure tip
  • LogDat2™ Downloading software and USB cable

Features and benefits

  • Measure differential and static pressure from -15 to +15 in. H2O (-3735 to +3735 Pa)
  • Calculate and display velocity when using a Pitot tube
  • Variable time constant
  • Statistics
  • Data logging with time and date stamp
  • Stores 12,700+ samples and 100 test IDs
  • Programmable K factors
