AeroTrak Remote Particle Counter 7301-P

Model Number: 7301-P

Discontinued Oct 1, 2019. Recommended replacement AeroTrak Model 6301 Remote APC.

Discontinued

*A newer model of this product is now available.

Product Details

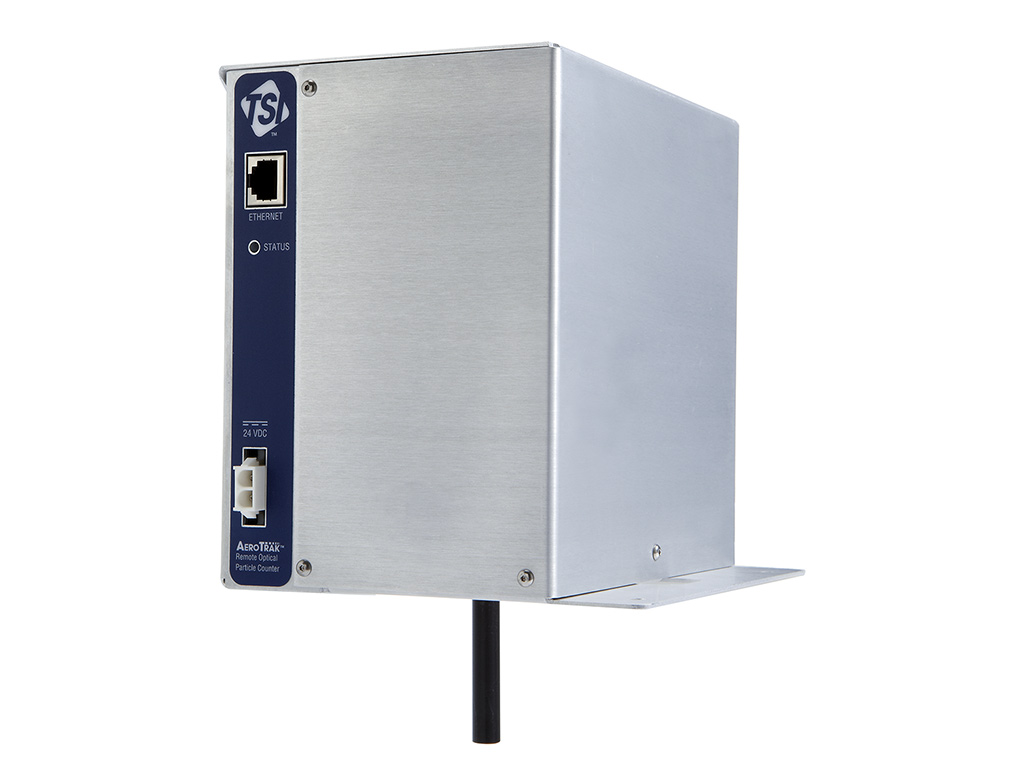

The TSI AeroTrak® 7301-P Remote Particle Counter with Pump is an excellent solution for aerosol monitoring in challenging locations. The Model 7301-P uses an internal vacuum source, providing the freedom to be installed where needed. It continuously collects real-time data. Integration is easy using Modbus® TCP over Ethernet. The product is small, light-weight, and easy to install. The instrument can be configured to run with facility monitoring systems, like TSI’s FMS 5 software.

Features & Benefits

  • 0.3 to 50 μm size range
  • Three selectable size channels from 0.3, 0.5, 1.0, 2.0, 2.5,and 5.0 μm
  • 0.1 CFM (2.83 L/min) flow rate
  • Internal pump with filtered exhaust
  • Ethernet (TCP/IP) and serial Modbus® RTU output
  • 3000 sample record storage for data redundancy
  • Configurable IP address
  • Local or remote configuration via web browser
  • Small form factor and easy to install
  • Long life laser diode
  • Easy-to-read status indicator
