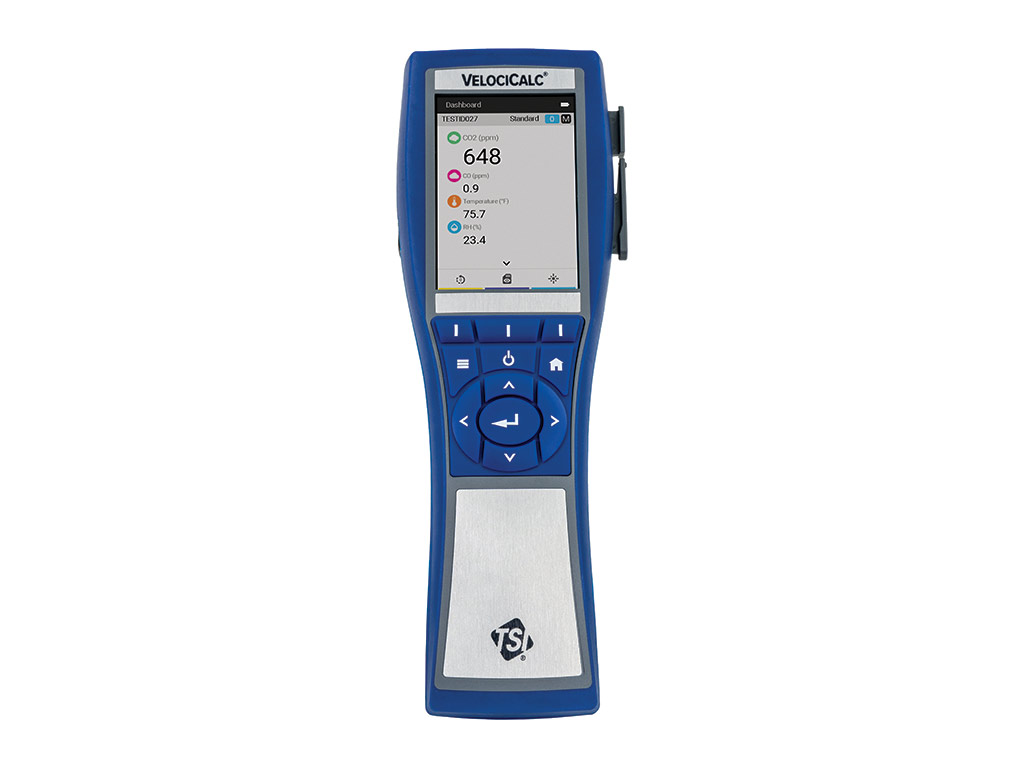

VelociCalc Multi-Function Ventilation Meter 9630

SKU: 9630

The 9630 VelociCalc is a portable, handheld Multi-Function micromanometer featuring a menu-driven user interface for easy operation. The high-resolution color screen displaying multiple measurements simultaneously in real-time with on-screen prompts to guide you through instrument setup and operation.

This product is only available in North America and Europe.

Product Details

The VelociCalc® Meter Model 9630 is used to measure HVAC system pressures and can be connected to pitot probes for performing duct traverses. It’s ergonomic design includes a probe holder and integrated magnets allowing for attachment to exposed ductwork or other metallic surfaces for hands-free operation. The Model 9630 is designed to work with a wide range of plug-in probes for measuring air velocities or IAQ parameters. In addition, the 9630 also includes a built-in workflow for calculating the percentage of outside air used to determine ventilation effectiveness in a building or room when used with an IAQ probe.

APPLICATIONS:

  • HVAC testing and balancing
  • Clean room testing
  • Biological safety cabinet and laboratory fume hood testing
  • HVAC commissioning and troubleshooting
  • IAQ investigations
  • Ventilation effectiveness with percent outside air calculation

INCLUDED ITEMS:

  • 9630 Instrument
  • Wrist strap
  • Static pressure probe
  • 8ft. (2.4m) tubing
  • Carrying case
  • 4 AA alkaline batteries
  • USB cable
  • Owner’s manual & calibration certificate

FEATURES AND BENEFITS:

  • Large, high-resolution color display
  • Intuitive menu structure allows for ease of use and setup

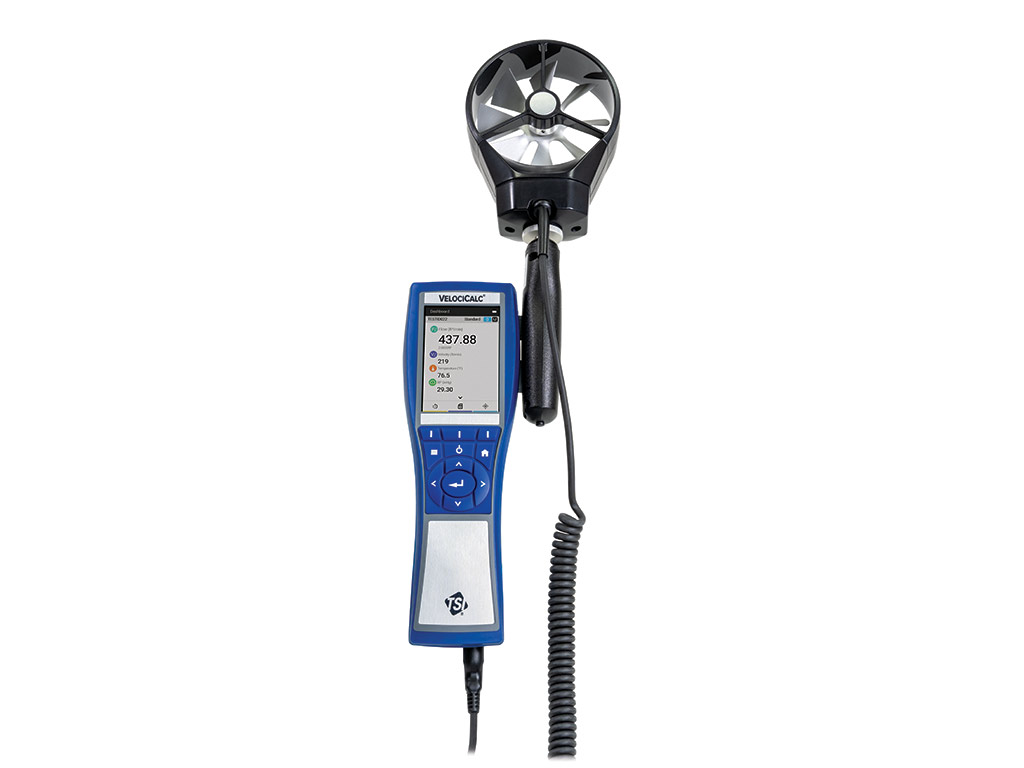

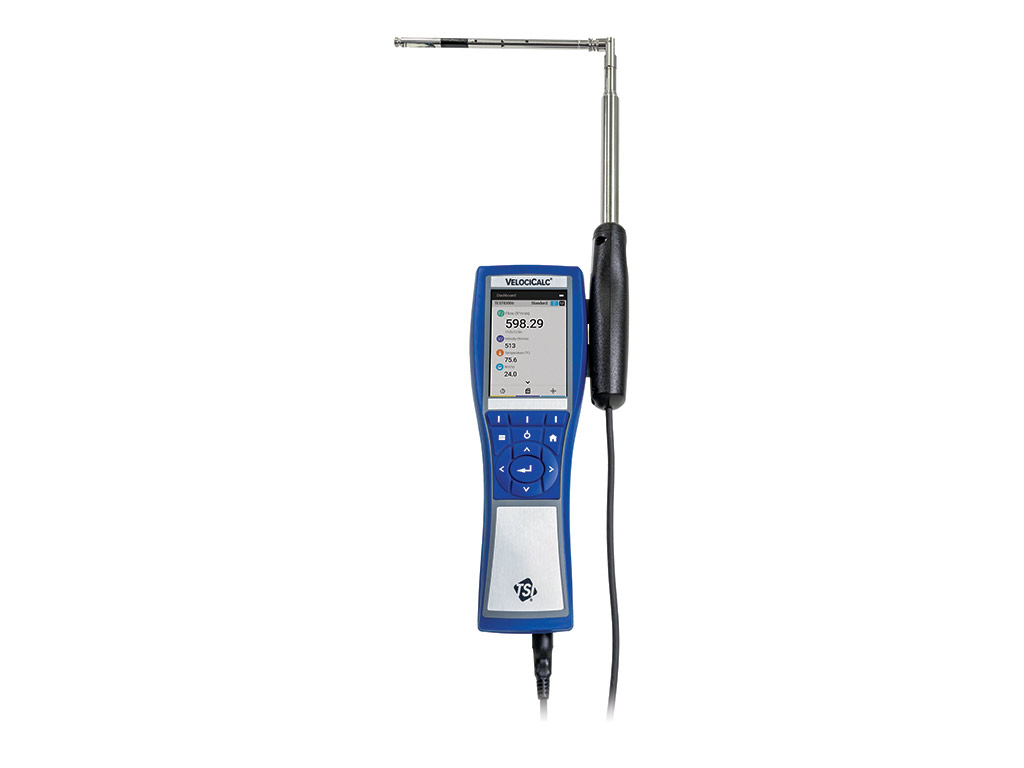

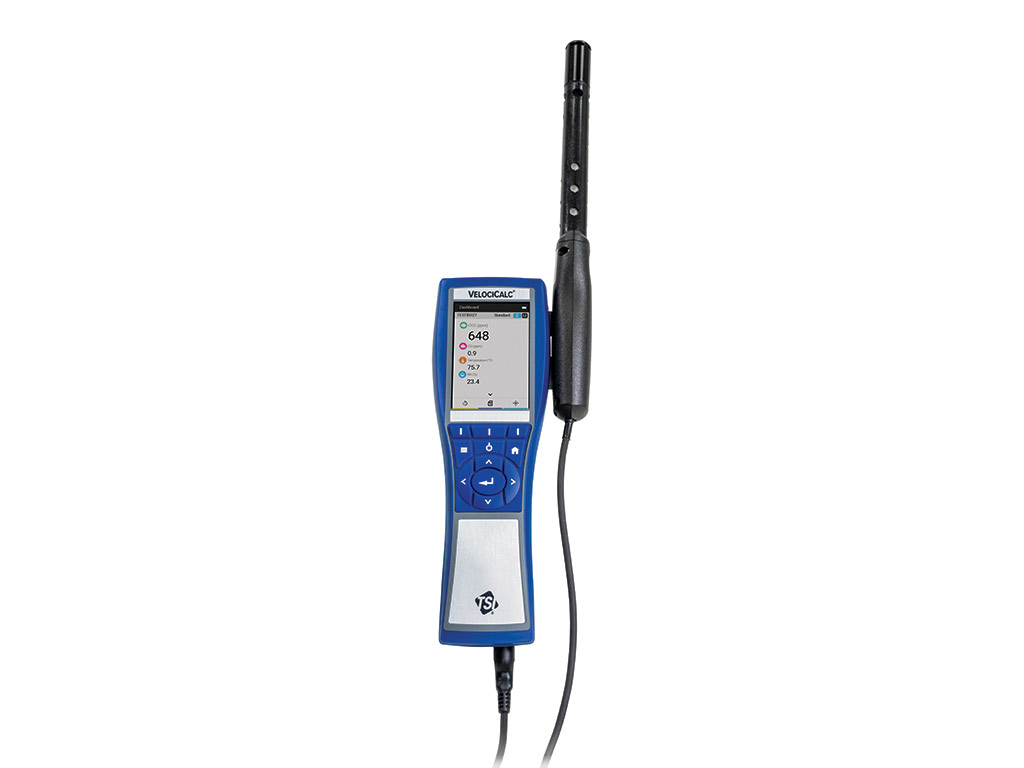

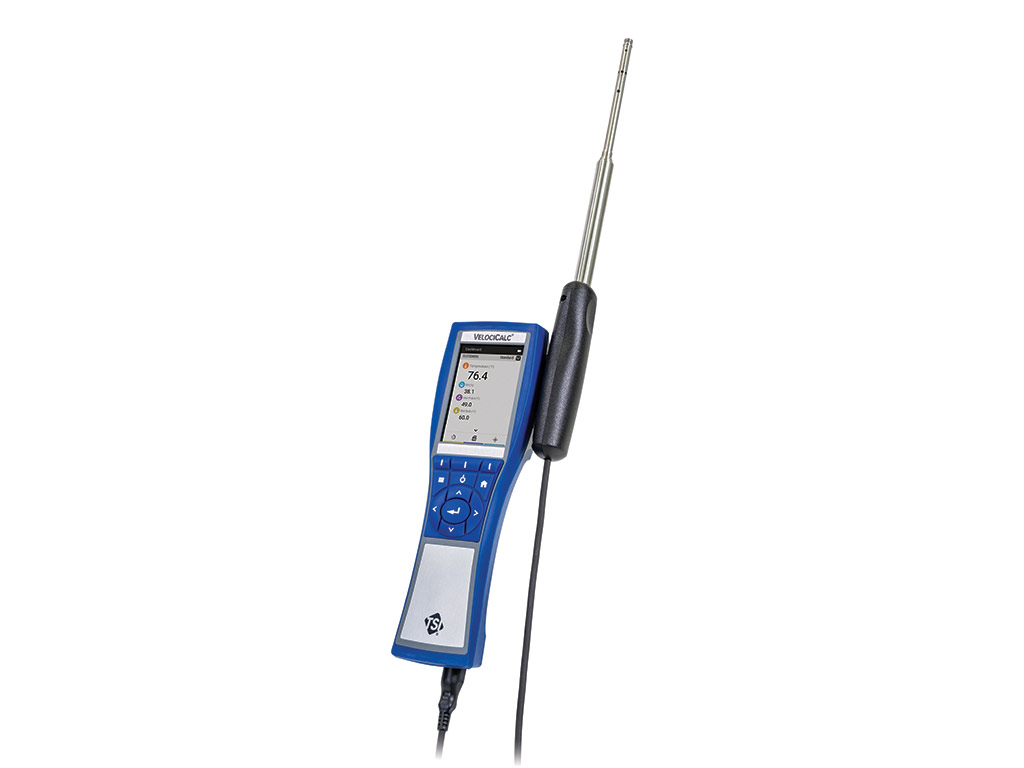

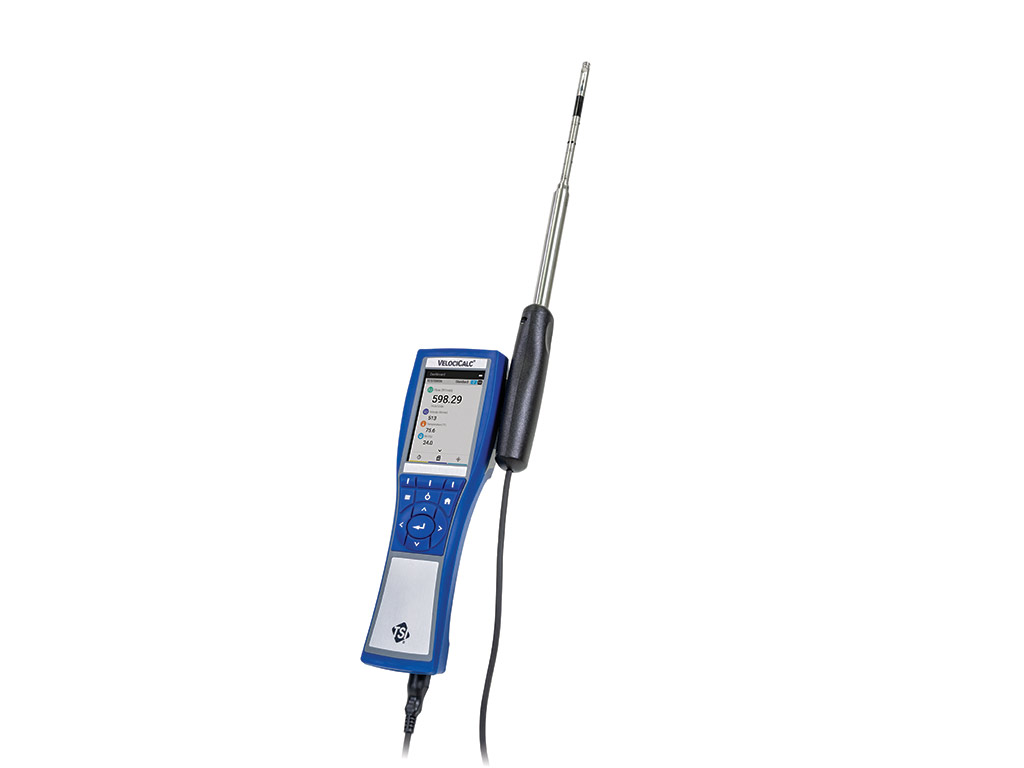

  • Optional smart plug-in probes, including thermoanemometer, rotating vane and CO2 probes with calibration certificates
  • User-customizable soft keys for quick access to common functions
  • Input for one K-alloy thermocouple
  • Integrated magnets for hands-free operation
  • Calculate the percentage of outdoor air with IAQ probe
  • Supports multiple languages
  • Static and differential pressure measurement
  • Air density compensation with on board barometric pressure sensor and temperature input
  • Pitot probe duct traverse
  • Programmable K-factors
  • Print data from instrument with optional USB portable printer (802241)

Other Models Available Description Request a Quote
9630 9630 meter can connect to pitot probes for duct traverse measuring and is designed to work with other plug-in probes for measuring air velocities or IAQ parameters. request a quote
9630-964 9630 meter with 964 probe with standard calibration certificates. request a quote
9630-966 9630 meter with 966 probe with standard calibration certificates. request a quote
9630-982 9630 meter with 982 probe with standard calibration certificates. request a quote
9630-AC Air velocity meter with ISO 17025 accredited calibrations. request a quote
AC9630-982 9630 & 982 with ISO 17025 accredited calibrations request a quote
AC9630-964 9630 & 964 with ISO 17025 accredited calibrations request a quote
AC9630-966 9630 & 966 with ISO 17025 accredited calibrations request a quote

*IAQ and RV probe accreditations are only available in Europe and the UK.



OPTIONAL PROBES: 792, 794, 960, 962, 964, 966, 980, 982, 995, and 800220

OPTIONAL PITOT PROBES:

634634000 Pitot Probe 12" (30 cm) - 5/16" (8 mm) diameter
634634001 Pitot Probe 18" (46 cm) - 5/16" (8 mm) diameter
634634002 Pitot Probe 24" (61 cm) - 5/16" (8 mm) diameter
634634003 Pitot Probe 36" (91 cm) - 5/16" (8 mm) diameter
634634005 Pitot Probe 60" (152 cm) - 5/16" (8 mm) diameter
634634004 Telescoping Pitot Probe - 8" to 38" (20 cm to 96 cm)
