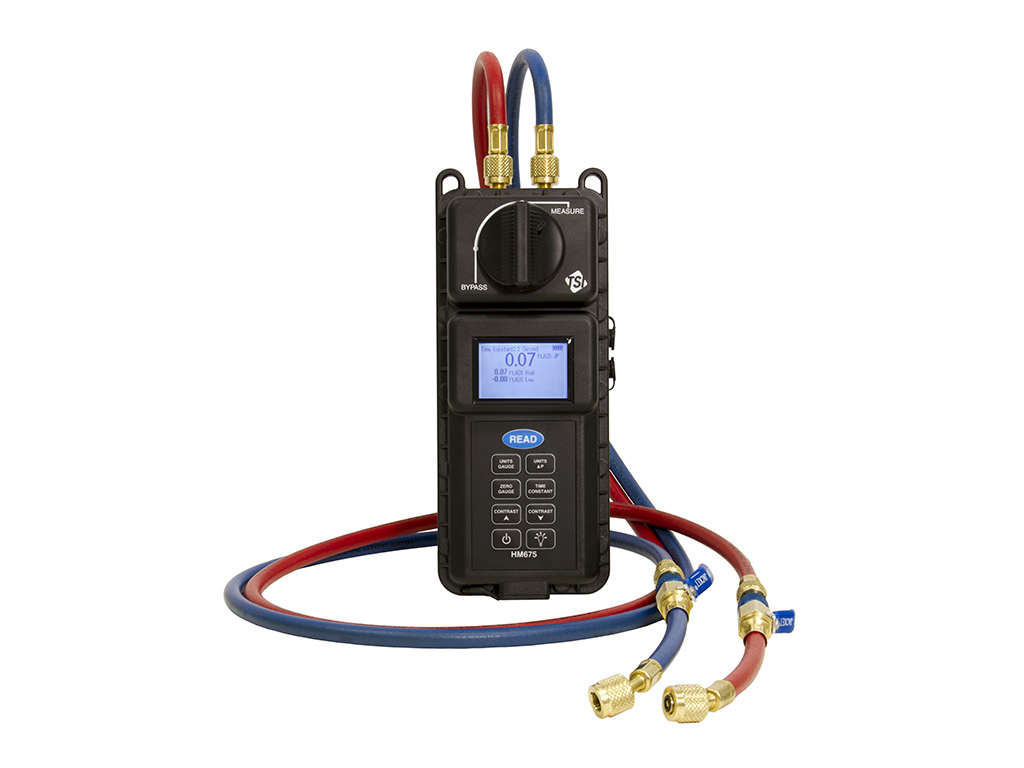

Hydronic Manometer HM675

SKU: HM675

Hydronic Manometer Model HM675 is used to balance hydronic heating and cooling systems, check pump performance and set balancing valves.

Product Details

It can measure and display differential, high side, and low side pressures simultaneously, without the need to change hose connections or instrument valve settings.

Kit Includes

  • Instrument
  • Hard carrying case
  • (2) 6.7 ft x 1/4-in. (2 m x 6 mm) hoses with shut-off valves
  • (2) B&G readout probes
  • (2) P/T gauge adapter probes
  • Power cord

Features and benefits

  • Provides for inputs for two temperature probes
  • Differential pressure range ±300 psi (±2068 kPa)
  • Gauge pressure range -20 to 300 psi (-138 to 2068 kPa)
  • Reads in. H2O, ft. H2O, psi, in. Hg, mm H2O, kPa, mm Hg, or bar
  • Large backlit display for use in low light areas
  • Operates on four alkaline or NiMH rechargeable batteries
  • Robust, splash-proof case
  • Meter weight with batteries is 2.65 lbs (1.20 kg)
