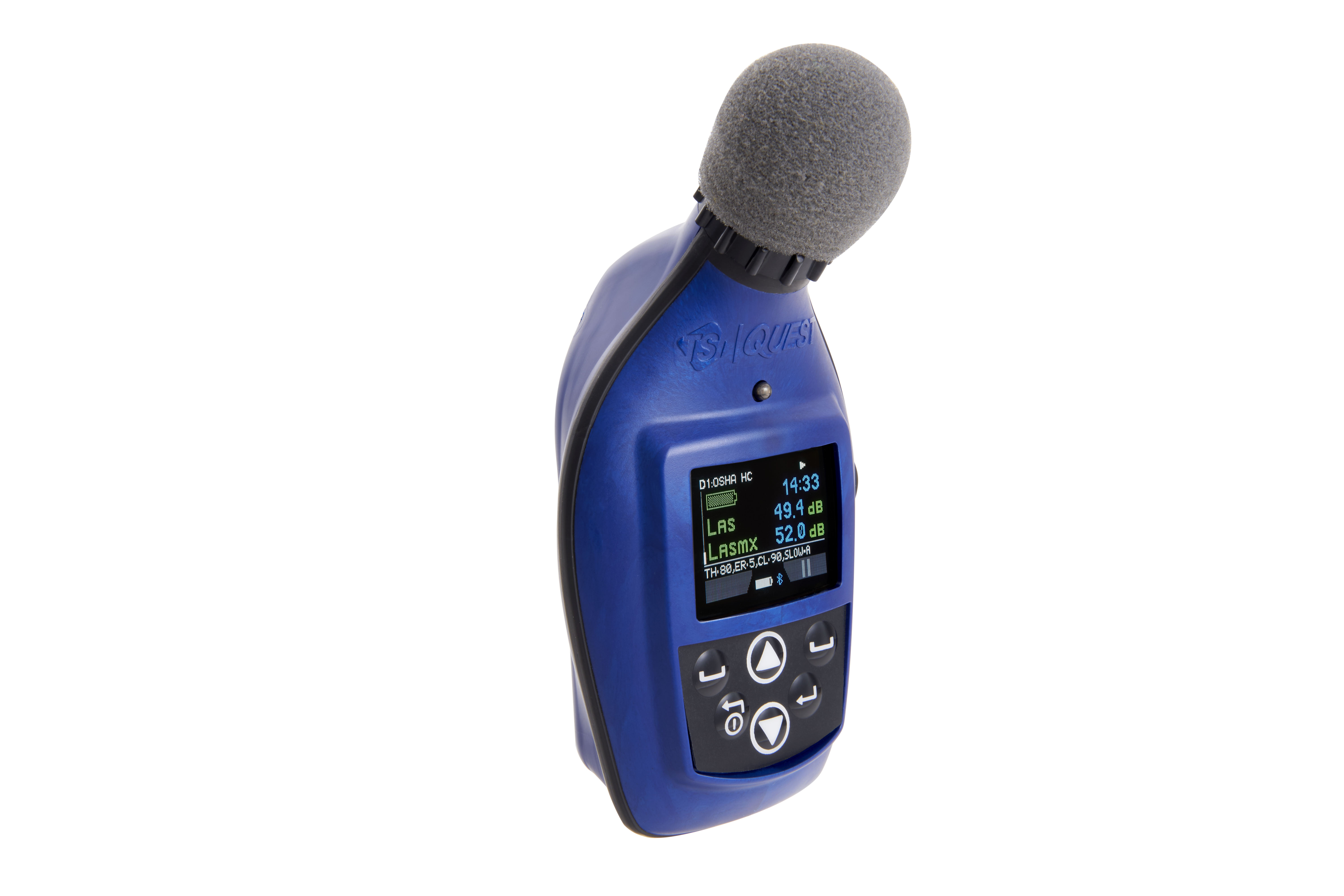

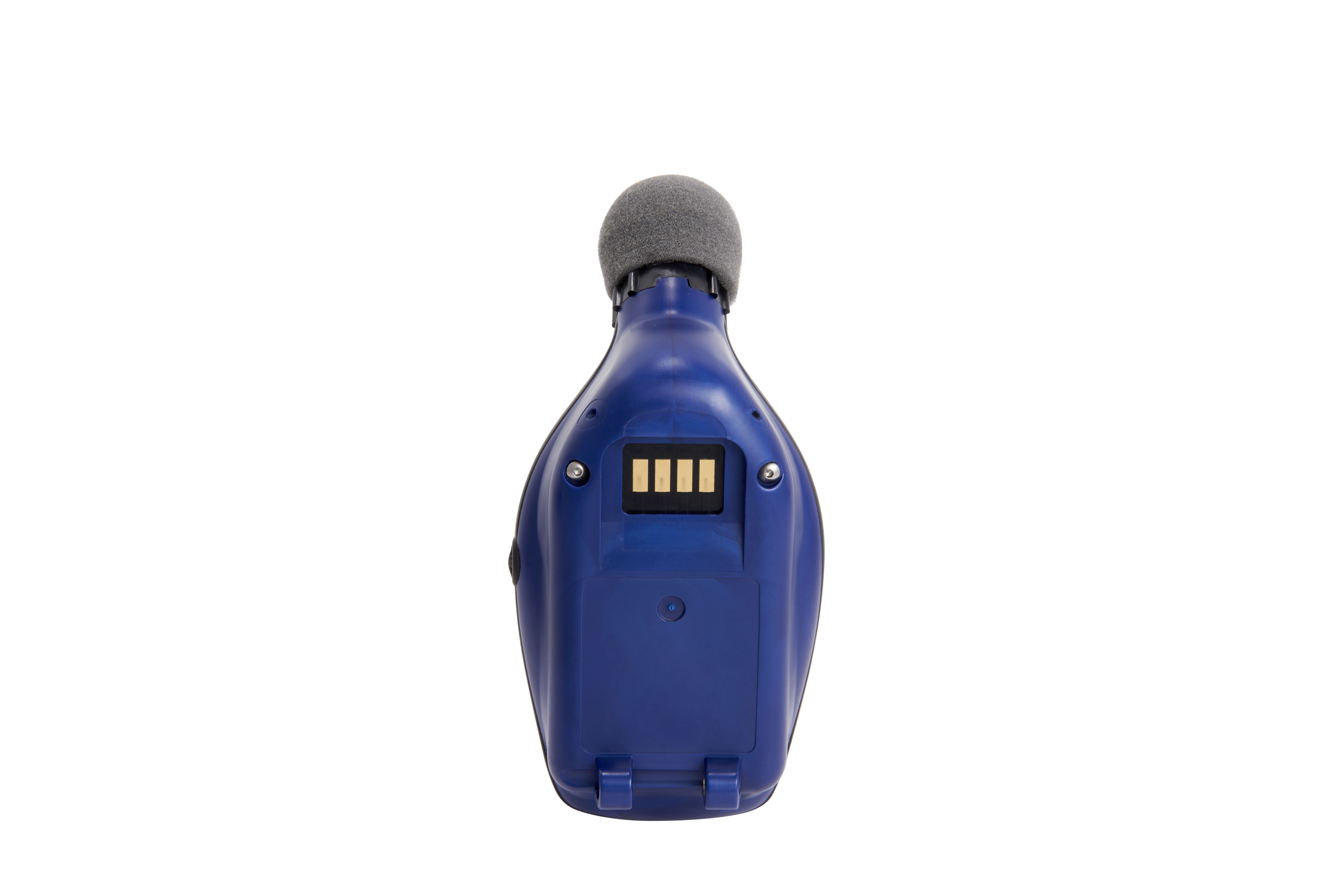

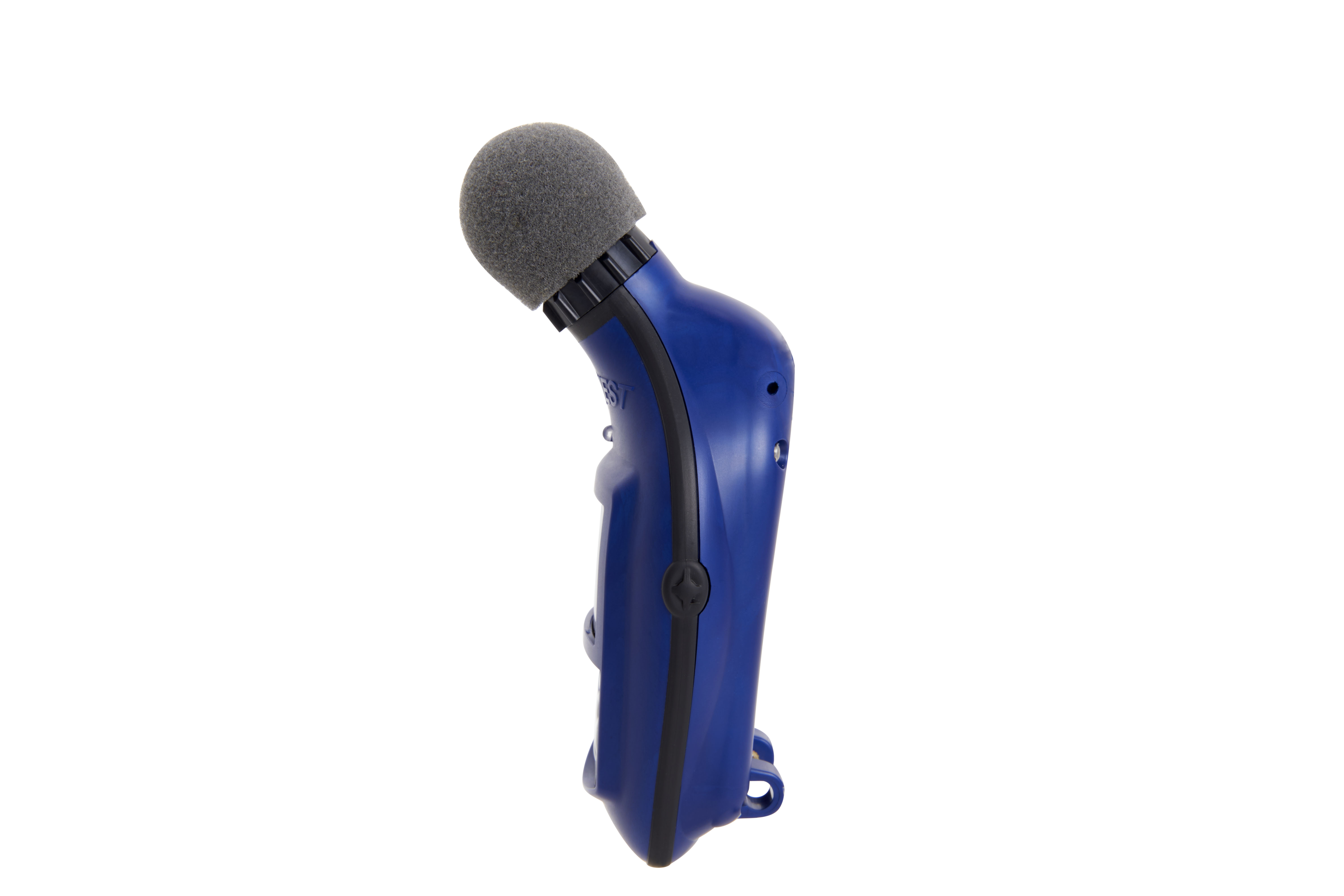

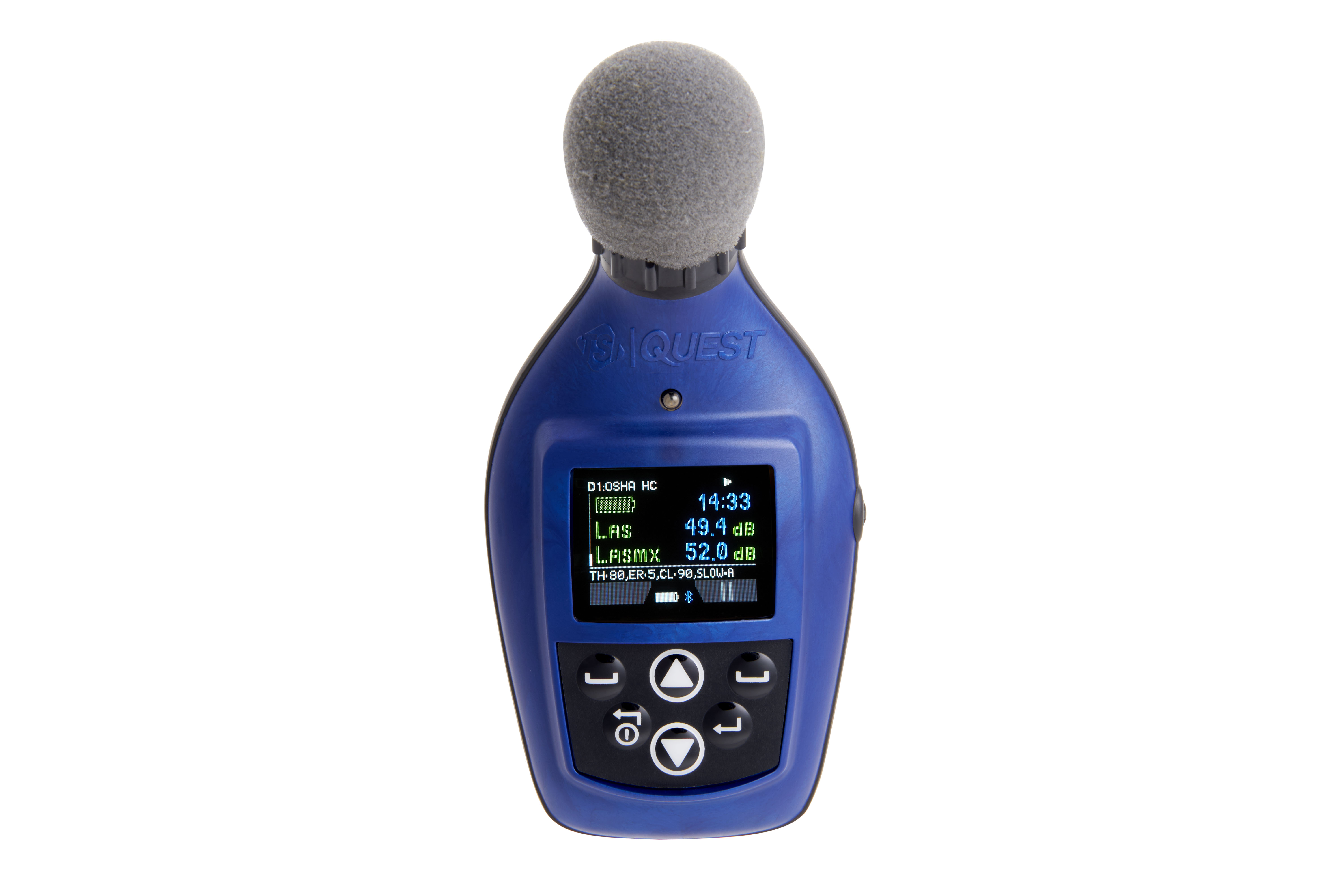

Quest™ Edge 7 Personal Noise Dosimeter

Product Details

The Quest™ Edge 7 Personal Noise Dosimeter allows users to monitor personal noise exposure levels in real-time, within Bluetooth range with a mobile application. The ability to monitor from a safe distance allows workers to continue tasks without interruption in a variety of workplace environments.

Features and Benefits

Powerful in Capabilities – easy-to-use and comes standard with the full-feature set, so no upgrade charges

• BLE5 Bluetooth® technology syncs to the Edge dB mobile app for data viewing and management at a safe distance. Non Bluetooth models are also available
• Voice Notes capture a verbal note about location, description, or noise event, which will display in the time-stamped data set for reference in later analysis
• Audio Recording function will automatically record audio of a noise event above a configurable dB level and be reviewable in your time-stamped data set, allowing for improved diagnostics and time savings in analysis
• 1/1 Octave Band data capture and analysis enabled
• Engineering Control validation and identification of potential changes needed
• Pause Study functionality allows for elimination of noise data during breaks, location/shift changes, or off-site travel to give a more accurate representation of working environments
• Ceiling threshold monitoring counts the number of occurrences above a ceiling dB level that you determine, giving you better information when a worker may be at increased risk and need hearing protection device changes
• Four independent, configurable virtual dosimeters that can monitor against up to 4 different standards simultaneously
• LED dose indicator flashes to easily identify who has reached their daily maximum noise dose exposure
• User-Configurable settings allow you control of feature set-up and analysis according to your specific needs

Built Durable – specifically designed for day-after-day use and tough environments

• Sturdy ½” MEMS microphone (Type 2/Class 2) designed to hold up to rigorous use
• Hi Visibility Color display for easy reading in different light conditions
• Robust windscreen designed for daily use with easy removal for calibration
• Shock resistant rubber overlay for better protection and durability
• Compact unit mounts easily and securely to the shoulder

Intuitive Detection Management Software (DMS) - configure dosimeter as well as intuitively interpret measurements and generate reports for export and sharing of results

Specifications

• Battery life - 30 hours nominal without display activated
• Microphone - 1/2 inch MEMS field replaceable microphone
• Measuring range - 70 dB to 140 dB
• Four independent dosimeters - preprogrammed to OSHA-HC, OSHA-PEL ACGIH standards and custom
• Frequency weighting – A, C, Z
• Independent exchange rates - 3 dB, 4 dB or 5 dB for each dosimeter
• Mobile app is compatible with iOS version 10.0 or greater, and Android version 4.3 or greater

Kits Include

• Extra wind screen
• Custom carrying case
• Quick start guide
• Product manual

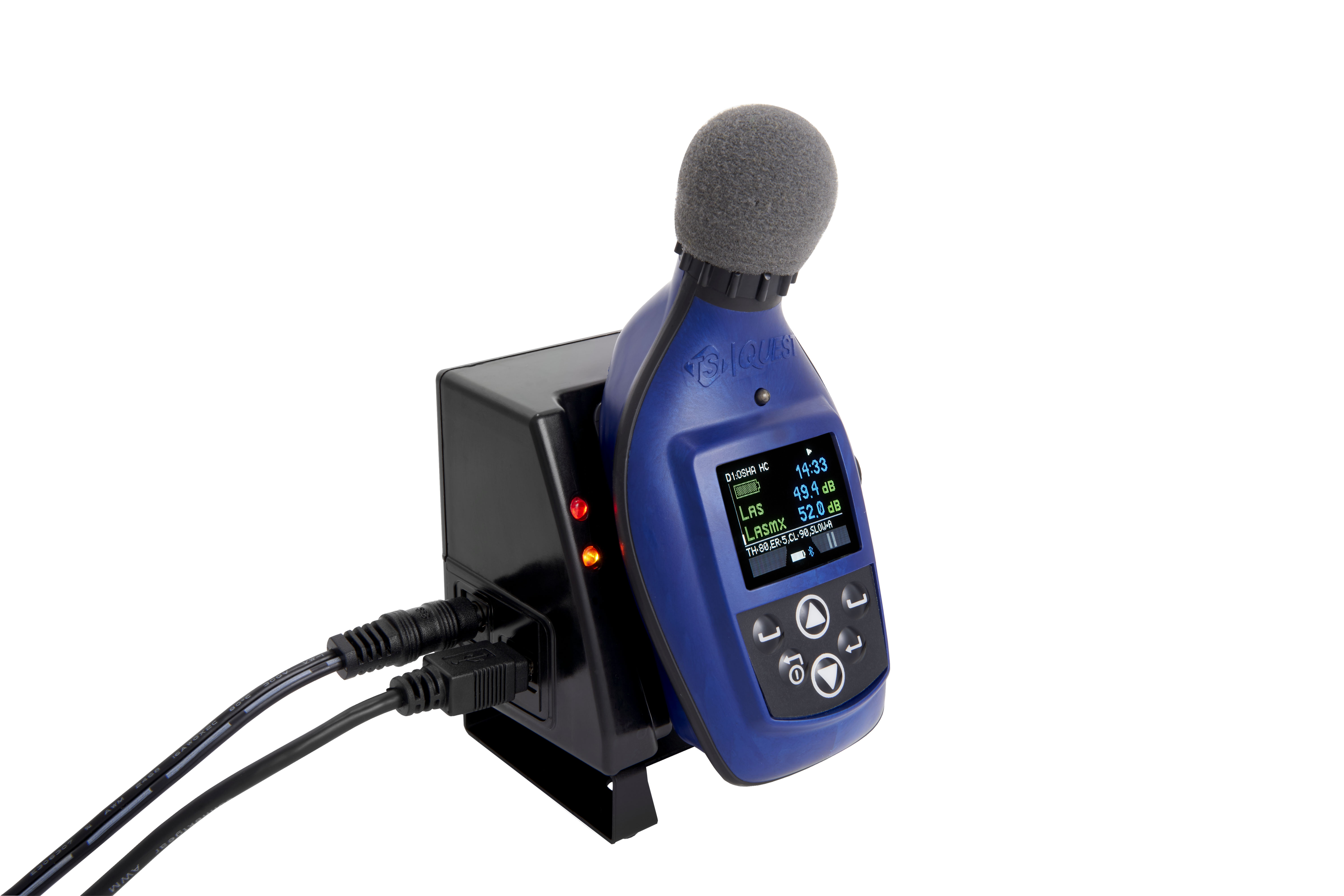

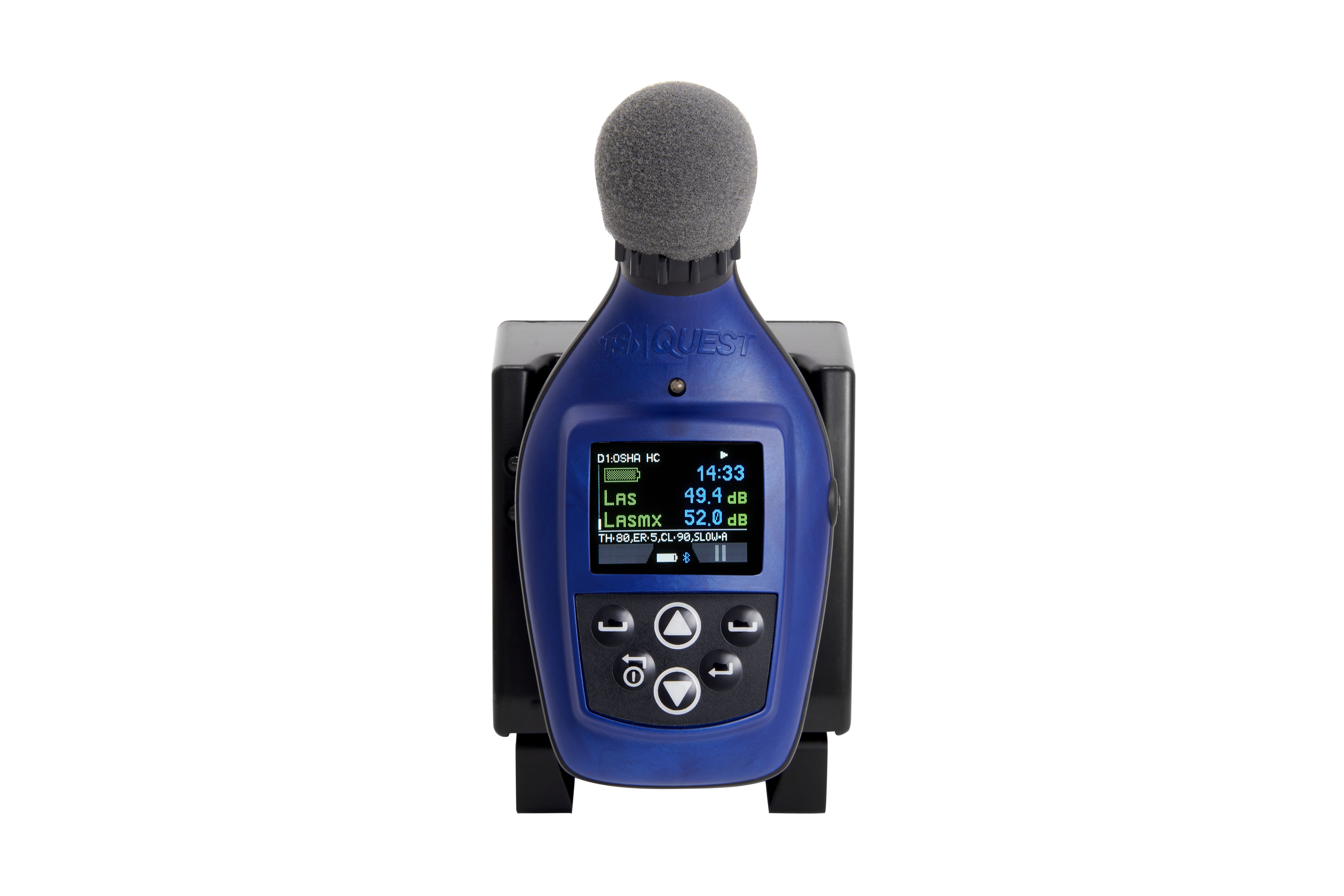

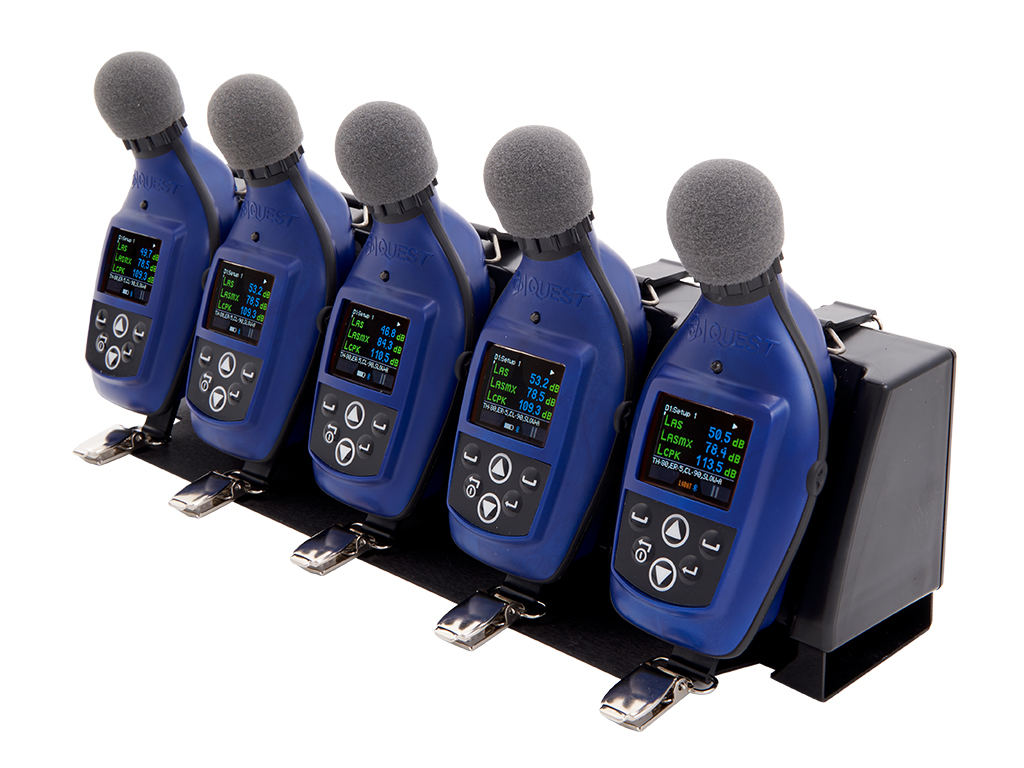

• Additional kit options include docking station and AC-300 calibrator

Industry Applications

• Manufacturing
• Safety Consultants
• Government
• Energy/Utility
• Airports
• Theme Parks and Entertainment Facilities
