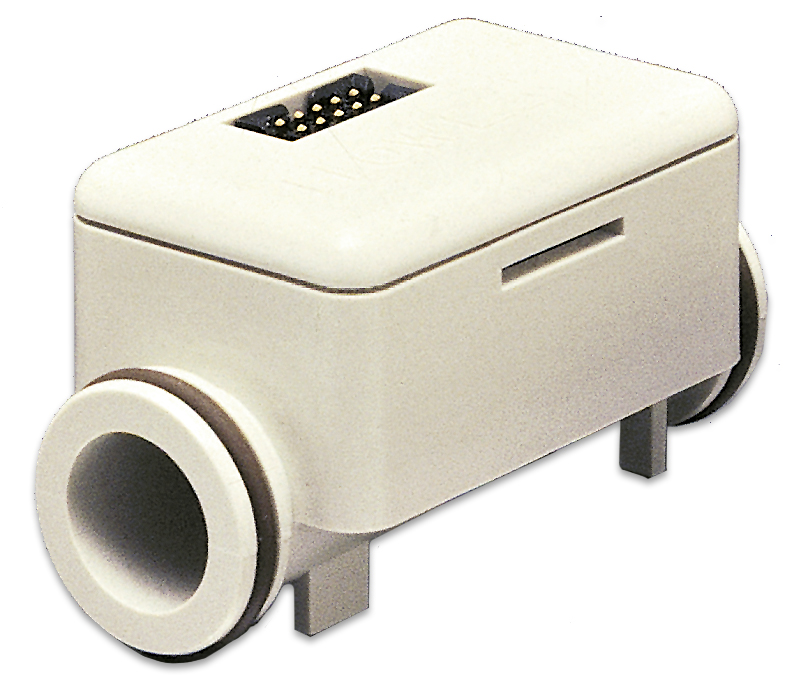

OEM Mass Flow Sensor 840523

SKU: 840523

OEM Mass Flow Sensor that can be calibrated for air and O2 with accuracy of ±2% of reading ±0.05 L/min @ 21 °C.

Product Details

TSI's flow meter design team can develop the precise mechanical configuration, performance characteristics, and electronic interface you need to optimize your design. The exceptional performance of these embedded flow sensors can enhance your product's performance and improve the time to market on new product development.

Sensor Specifications

  • Calibration: air and O2
  • Flow range: 0 to 300 standard L/min
  • Accuracy*: ±2% of reading ±0.05 L/min @ 21 °C (*Consult TSI for complete product specifications. Specifications are subject to change without notice.)
  • Temperature range: 0 to 50 °C
  • Pressure drop: 12 cm H2O at 300 L/min
  • Response time: 5 msec (0 to 63% of full-scale flow)
  • Output signals flow: 0 to 2.5 VDC non-linear, 2 channels
  • Output signal temperature: 0 to 2.5 VDC non-linear
  • Input voltage: 5 VDC ±5%, regulated, 3.3 VDC eeprom
  • Power consumption: 0.8 watts at full-scale flow
  • Mating connector: Molex 51110-1060 (Wire) or Molex 87568-1074/87568-1073 (IDC)
  • Eeprom interface: I2C communication
  • Meets RoHS Directive 2011/65/EU

Features and benefits

  • Fully calibrated and ready to install
  • Mass flow measurements
  • Fast response
  • Accuracy as a percent of reading
  • Low pressure drop
