CO2 Gas Mass Flow Meter (plus Kit) 5300-5-AC

Product Details

The TSI Mass Flow Multi-Meter 5300-5 provides a bi-directional flow rate measurement with 2% of reading accuracy across a wide flow range. Integrated temperature and pressure sensors compensate flow measurements to provide mass flow readings independent of temperature or pressure. In addition to temperature and absolute pressure measurements, a built-in totalizer measurement enables users to make volume measurements as a running total. All 5300 Series inline flow meter models come with a standard accessory kit (see full list below).

Easy to operate

View up to four readings simultaneously from the color touchscreen display of this CO₂ flow meter. Quickly and easily configure measurements and device settings directly from the flow meter. Connect and operate the gas flow meter through your PC with FLO-Sight software to take advantage of advanced data display and device settings options.

Fits your application

TSI Flow Meters are lightweight, compact, and can measure across a wide dynamic operating range. The 5000 Series Flow Meter also incorporates configurable tube end adapters, touchscreen control, and multiple mounting options. Whether measuring gas flows in a laboratory, manufacturing, or service setting, the 5000 Series Flow Meter can adapt to fit your unique application.

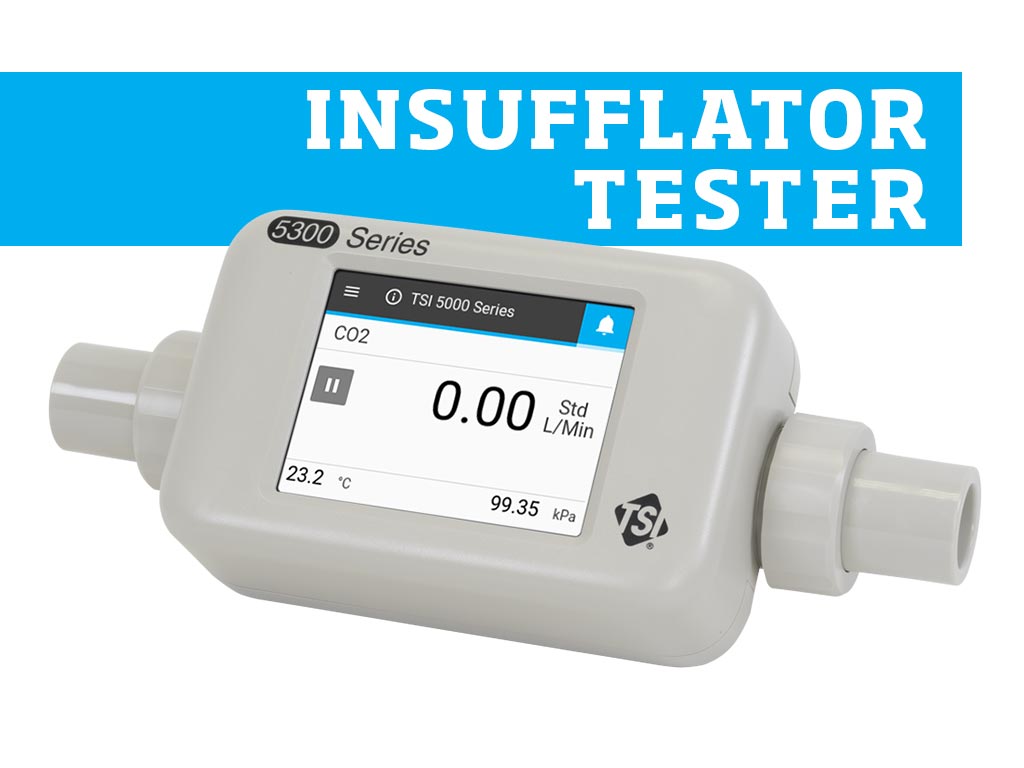

Model 5300-5 high pressure flow meter is ideal for testing insufflation systems because it can measure CO₂, pressure, and gas volume.

Proven performance

5000 Series Flow Meters utilize a proprietary platinum film sensor with proven performance that’s been relied upon for more than 35 years. The TSI mass flow sensor design is optimized for applications where high accuracy, fast response, and low pressure drop are performance musts. Fast sensor response ensures accuracy in fluctuating flows and is ideal for closed-loop control systems and integrated volume measurements. The low pressure drop of TSI flow meters minimizes flow circuit back pressure and its impact on the system.

Includes our Standard Accessory Kit:

• low pressure inlet filter
• AC adaptor with universal plug set
• USB-C to USB-A power/communications cable
• USB hub cable
• 1/2 inch tube ends

*All 5300 Series flow meters come with 22mm end adaters and end caps attached.*

Calibration and Service

Looking to calibrate your TSI 5300-5 Flow Meter? TSI now offers worldwide service! To find out about our service, calibration, and repair options, visit our Flow Service page.

View all our materials and resources for the 5000 Series Flow Meters

      Learn more

Features and benefits

• Temperature and pressure compensated mass flow rate
• 4 millisecond bi-directional flow response
• High accuracy (±2% of reading)
• Low pressure drop minimizes back pressure
• Wide dynamic operating range (1000:1 turndown ratio)
• Also measures temperature, absolute pressure, and totalizer (volume) measurements
• 2.8-inch color touchscreen operation
• Display four measurement parameters simultaneously
• Configurable tube end connectors
• USB power and data communications
• 10 Point NIST-traceable Calibration Certificate included
• All meters come with power supply, cables, tube end connectors, inlet filter, and FLO-Sight^TM companion PC software
