AeroTrak Cleanroom Condensation Particle Counter 9001

SKU: 9001

Extremely low false-count rate provides accurate 10 nm measurements at low particle concentrations to confidently monitor mini-environments and process gases—keeping manufactured products safe from nanoparticle contamination.

Product Details

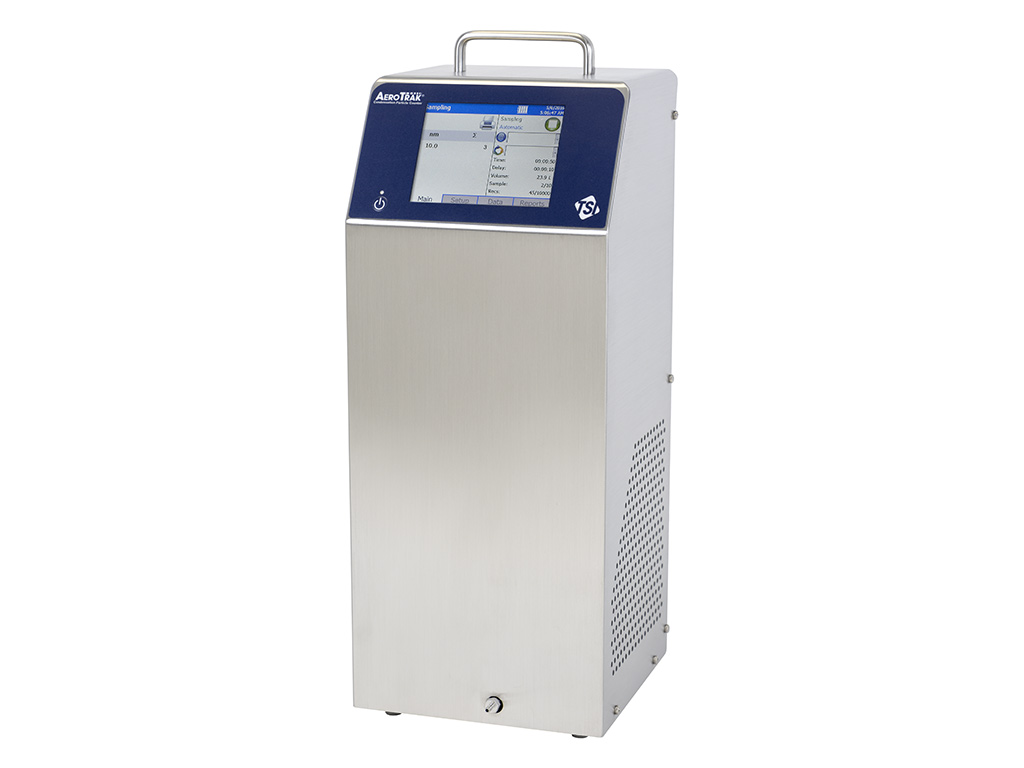

The AeroTrak™ Cleanroom Condensation Particle Counter (CPC) Model 9001 is the only water-based, laminar flow, high flow rate instrument on the market—providing the confidence needed for monitoring critical environments. Using patented technology, the instrument provides 10 nm sensitivity at a 0.1 CFM (2.83 L/min) flow rate. With an ultra-low false count rate, the AeroTrak 9001 Cleanroom CPC is ideally suited for the low particle concentrations found in ISO Class 1 and Class 2 environments.

Applications

  • Tracking down nano-scale particle contamination sources (10 nm < 100 nm)
  • Process improvement
  • Monitoring clean areas
  • Looking for filter leaks
  • Conducting indoor air quality investigations

Download Software

To download applicable software and/or firmware, please use the Software/Firmware Wizard.

Features and Benefits

  • 10 nm sensitivity
  • 0.1 CFM (2.83 l/min) sample flow
  • Low false-count rate (< 0.07 count/ft3) provides accurate measurements at low particle concentrations
  • Fast response
  • Uses Ultra-Pure or DI water as working fluid, keeping alcohol or other chemicals out of the cleanroom
  • Data Storage: 250 zones, 999 locations, and 10,000 samples
  • USB, USB storage device, and Ethernet data transfer
  • External reporting via TrakPro™ Lite Secure Software
  • Industry's loudest audible alarm
  • Easy, icon-driven touch screen operation
  • Allows storage and recall of specific recipes and zone configuration
  • Works with optional AeroTrak High Pressure Diffuser Model 7950 for measurement of high pressure gases (CDA, N2 , AR)
  • 316L stainless steel enclosure
