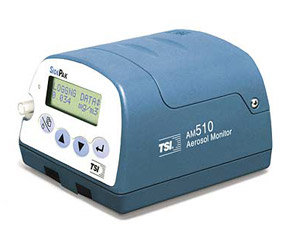

SidePak Personal Aerosol Monitor AM510

SKU: AM510-1A11

This unit was discontinued as of August 31, 2016.

Discontinued
*A newer model of this product is now available.

Product Details

The SidePak™ Personal Aerosol Monitor AM510 is a rugged, lightweight, belt mounted laser photometer, weighing as little as 16 ounces. It is compact and quiet, minimizing interference and worker discomfort. The built-in sampling pump lets you attach a wide variety of size-selective inlet conditioners for worker breathing zone, or area measurements with a respirable cyclone, or one of the three integrated impactors. The AM510 comes with TSI's Smart Battery Management System™, which includes long-running NiMH or alkaline battery packs and provides precise run time information in minutes remaining.

The AM510 personal aerosol monitor's easy-to-read display shows your data in both real-time aerosol mass concentration and eight-hour time-weighted average (TWA). With its convenient data logging and long battery life, the monitor is also ideal for extended sampling. Easy-to-use TrakPro™ data analysis software lets you pre-program sampling events and create effective graphs and reports. Available in single and three unit kits.

Applications

  • Personal exposure monitoring/IH studies
  • Ambient/work area monitoring
  • Trending/screening
  • Engineering studies
  • Epidemiology health studies
  • Environmental sampling



Kits Include

  • Soft single-unit carrying case
  • 115/VAC power supply
  • U.S. line cord
  • Impactor kit
  • Cyclone kit
  • Screwdriver
  • TrakPro data analysis software CD
  • USB cable
  • Zero filter
  • Sample tube
  • Calibration certificate
  • User guide
  • Quick reference card
  • 2-year warranty



Download Software

Features & Benefits

  • Intrinsically safe (CSA approved) for use in hazardous environments when used with the 1650 mAH NiMH battery pack
  • Multiple battery options including 1650 mAH, 2700 mAH NiMH battery packs or a 6-cell, AA-size alkaline battery pack
  • Precise run time information in minutes remaining
  • Integrated pump allows use of size-selective aerosol inlet conditioners
  • 10mm Dorr-Oliver Cyclone for respirable (4 micron) sampling
  • Built-in impactors for 1.0, 2.5, 10-micron cut off sampling
  • Real-time concentrations (mg/m3) and TWA during sampling
  • Statistics functions: max, min. and average readings, elapsed time and 8-hour TWA
-
