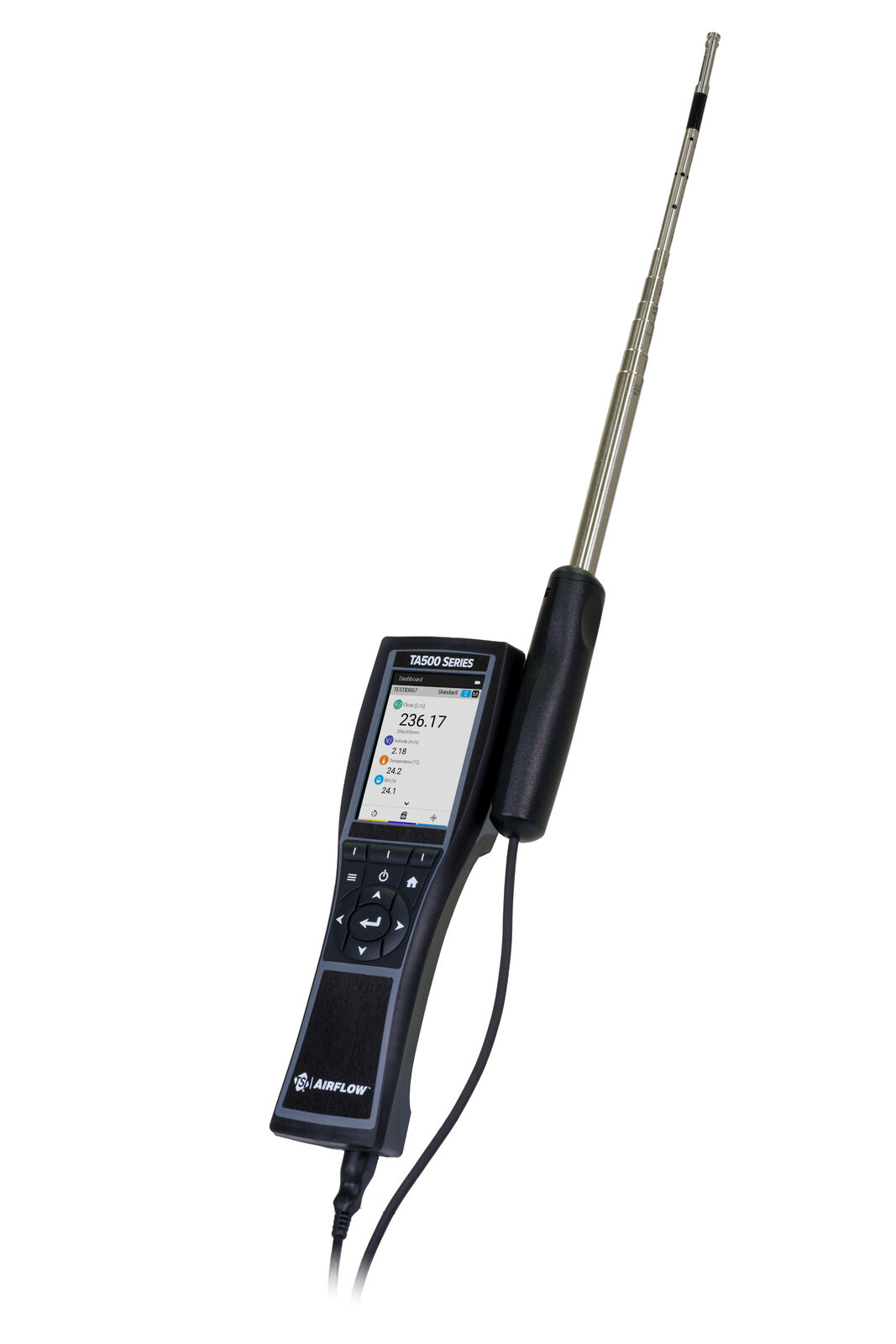

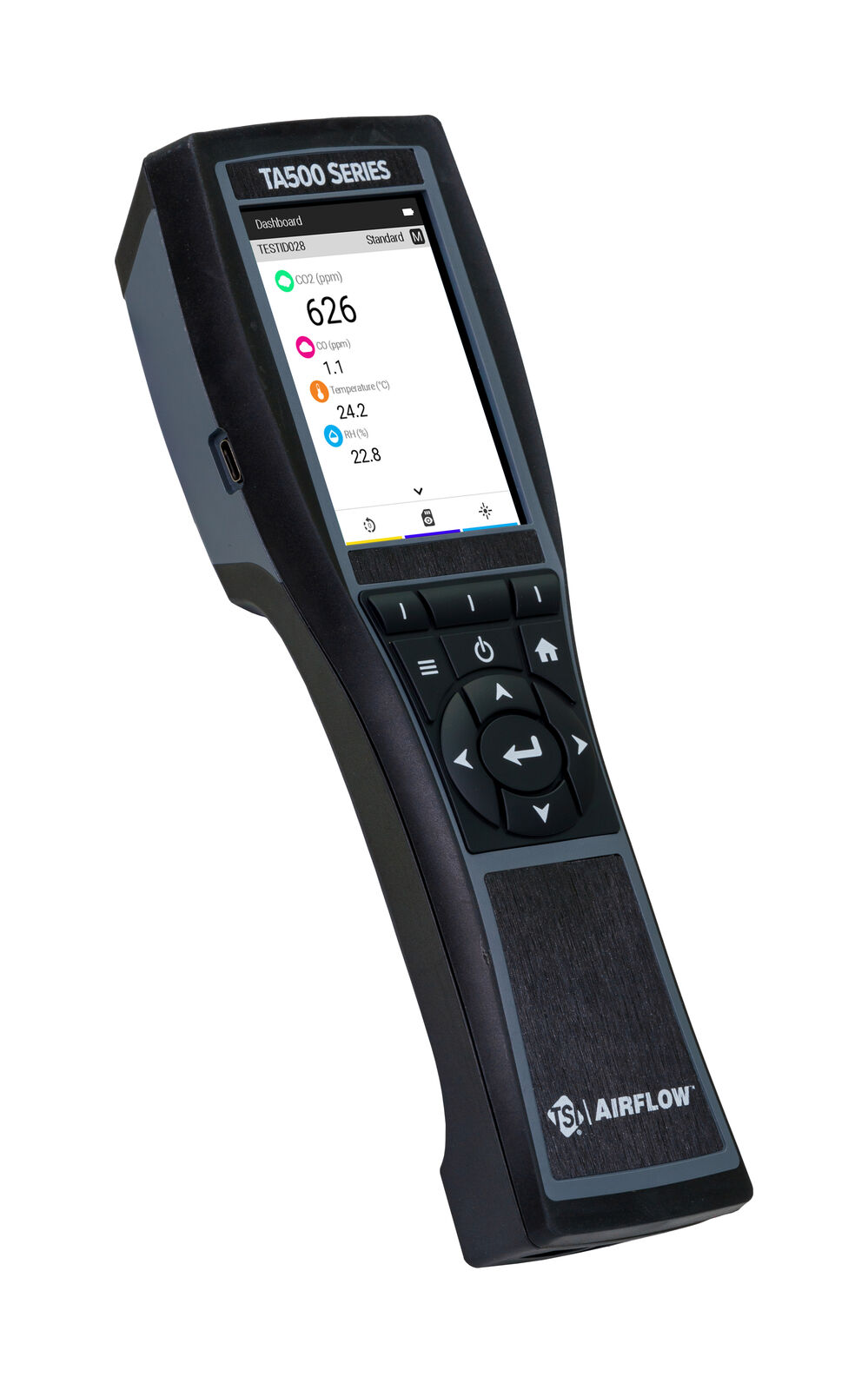

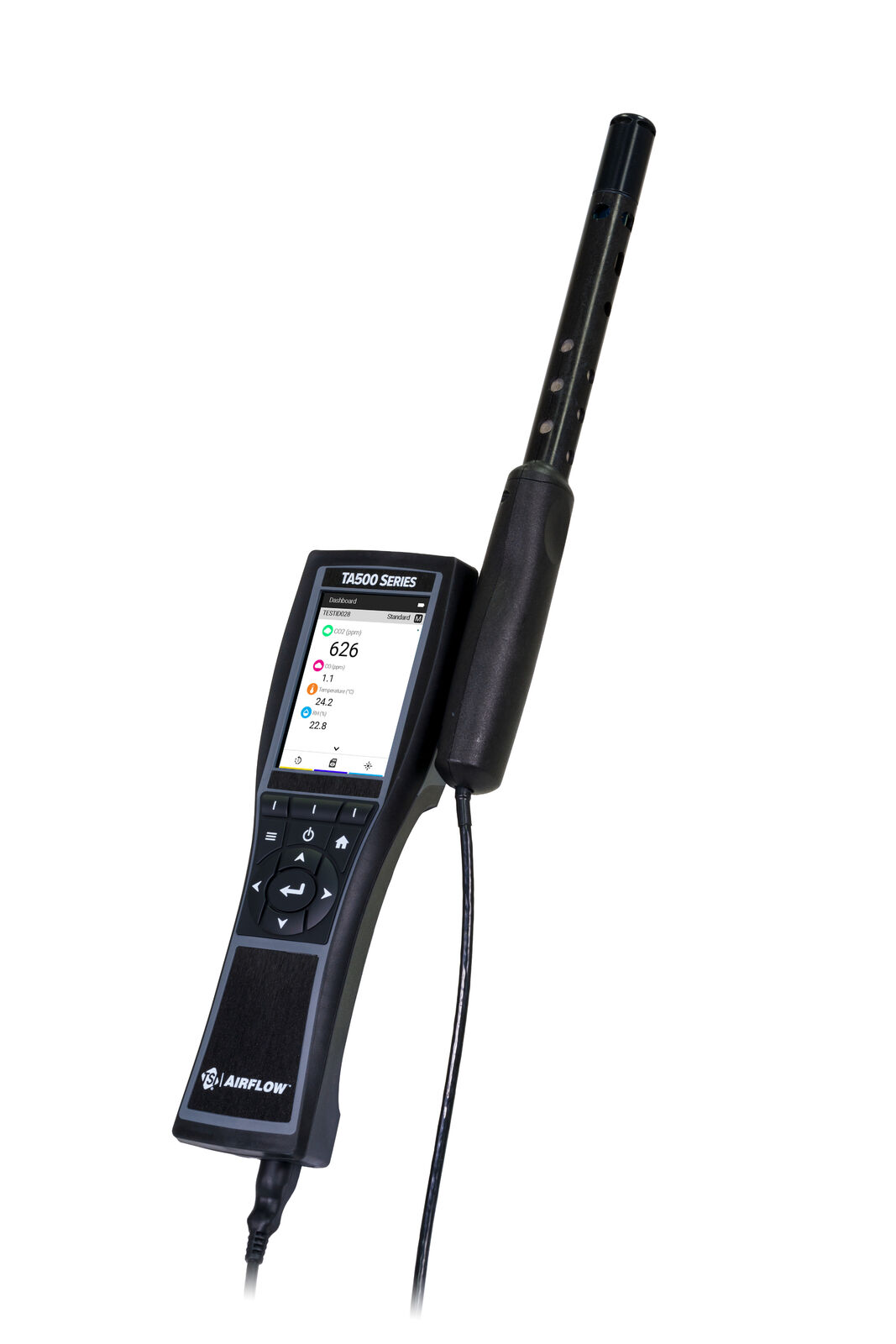

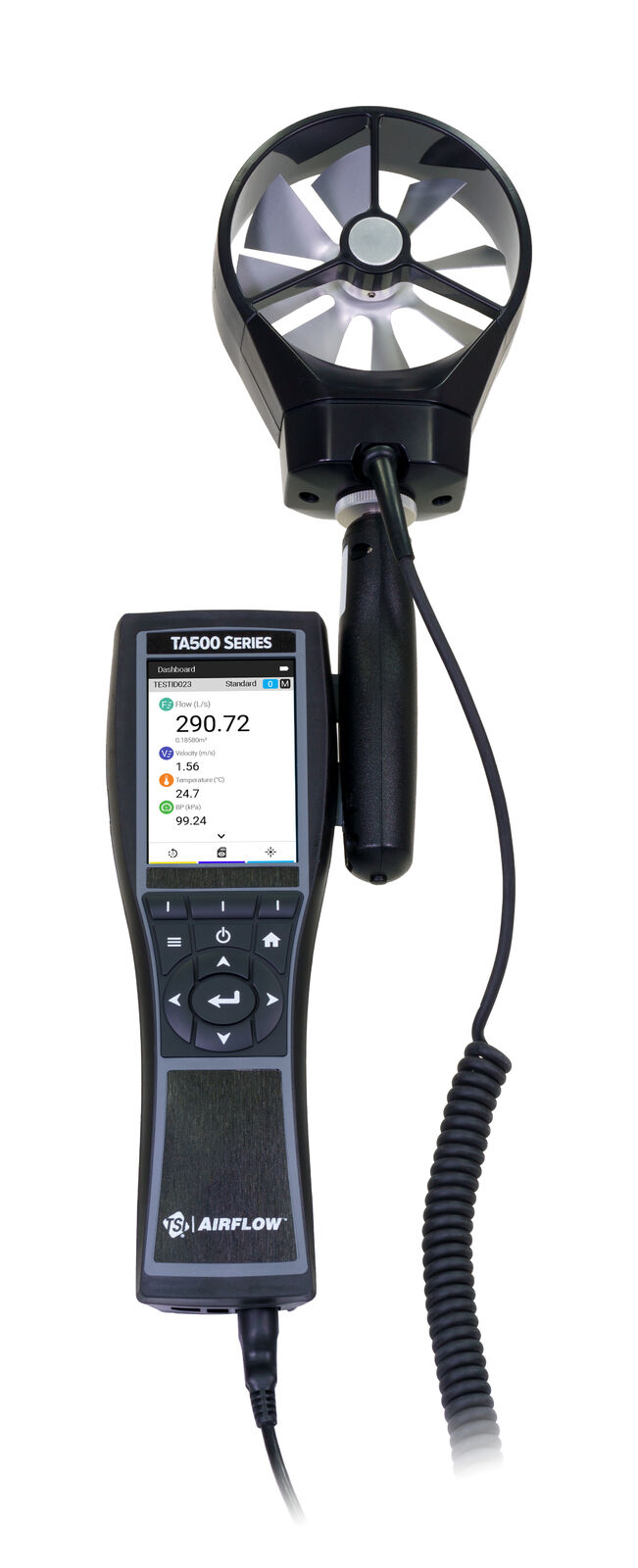

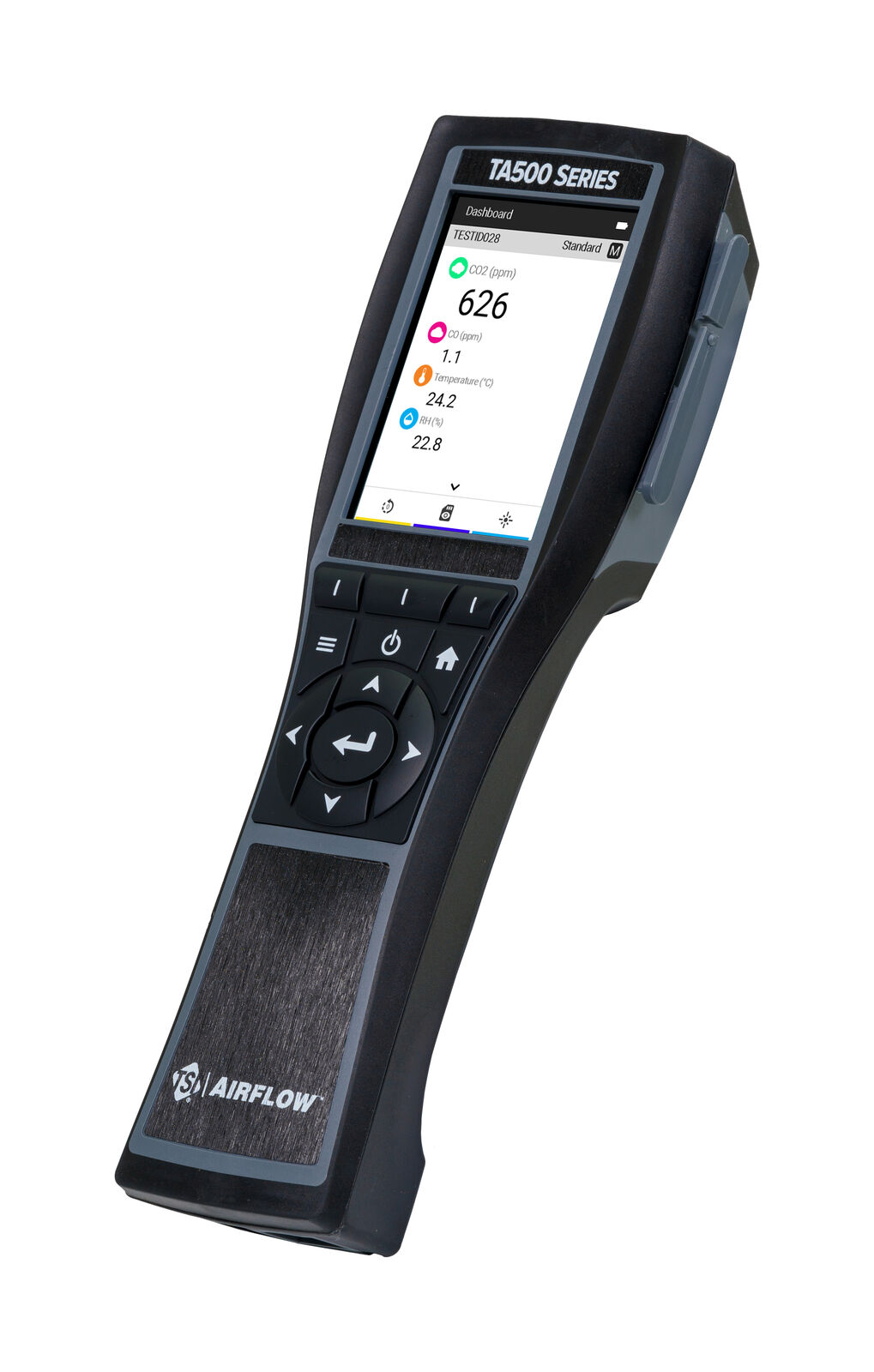

Airflow Instruments Velocity Meter TA500

SKU: TA500

The Airflow™ Instruments Velocity Meter TA500 is a portable, handheld Multi-Function Ventilation and IAQ test instrument featuring a menu-driven user interface for easy operation. The high-resolution color screen displays multiple measurements simultaneously in real-time with on-screen prompts to guide you through instrument setup and operation.

Product Details

The Airflow™ Instruments Velocity Meter TA500 is designed to work with a wide range of plug-in probes for measuring air velocity, temperature, relative humidity, CO and CO2. Its ergonomic design includes a probe holder and integrated magnets allowing for attachment to exposed ductwork or other metallic surfaces for hands-free operation. The Model TA500 includes a built-in workflow for calculating the percentage of outside air used to determine ventilation effectiveness in a building or room when used with an IAQ probe.

APPLICATIONS:

  • HVAC testing and balancing
  • Clean room testing
  • Biological safety cabinet and laboratory fume hood testing
  • HVAC commissioning and troubleshooting
  • IAQ investigations
  • Ventilation effectiveness with percent outside air calculation

INCLUDED ITEMS:

  • TA500 Instrument
  • Wrist strap
  • Carrying case
  • 4 AA alkaline batteries
  • USB cable
  • Owner’s manual & calibration certificate

FEATURES AND BENEFITS:

  • Large, high-resolution color display
  • Intuitive menu structure allows for ease of use and setup
  • Optional smart plug-in probes, including thermoanemometer, rotating vane and CO2 probes with calibration certificates
  • Input for one K-alloy thermocouple
  • User-customizable soft keys for quick access to common functions
  • Calculate the percentage of outdoor air with IAQ probe
  • Integrated magnets for hands-free operation
  • Supports multiple languages
  • Air density compensation with on board barometric pressure sensor and temperature input
  • Print data from instrument with optional USB portable printer (802241)

OPTIONAL PROBES: 792, 794, 960, 962, 964, 966, 980, 982, 995, and 800220

Other Models Available Description Request a Quote
TA500 TA500 meter measures air velocity, temperature, relative humidity, CO and CO2 with probe options. request a quote
TA500-960 TA500 meter with 960 probe with standard calibration certificates. request a quote
TA500-962 TA500 meter with 962 probe with standard calibration certificates. request a quote
TA500-980 TA500 meter with 980 probe with standard calibration certificates. request a quote
TA500-982 TA500 meter with 982 probe with standard calibration certificates. request a quote
TA500-995 TA500 meter with 995 probe with standard calibration certificates. request a quote
AC-TA500 Air velocity meter with ISO 17025 accredited calibrations request a quote
AC-TA500-980 TA500 & 980 with ISO 17025 accredited calibrations request a quote
AC-TA500-982 TA500 & 982 with ISO 17025 accredited calibrations request a quote
AC-TA500-995 TA500 & 995 with ISO 17025 accredited calibrations request a quote
AC-TA500-960 TA500 & 960 with ISO 17025 accredited calibrations request a quote
AC-TA500-962 TA500 & 962 with ISO 17025 accredited calibrations request a quote

*IAQ and RV probe accreditations are only available in Europe and the UK.
