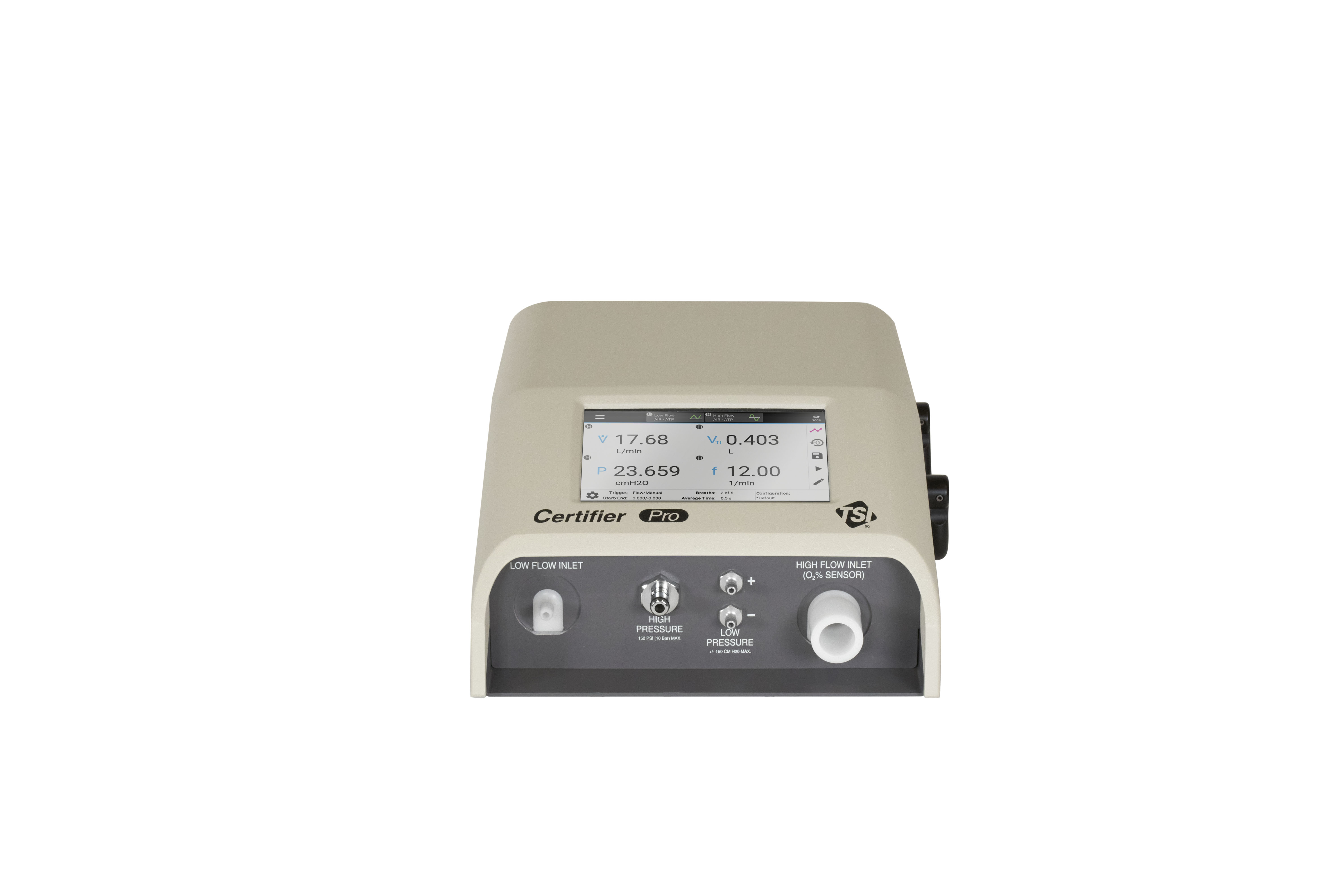

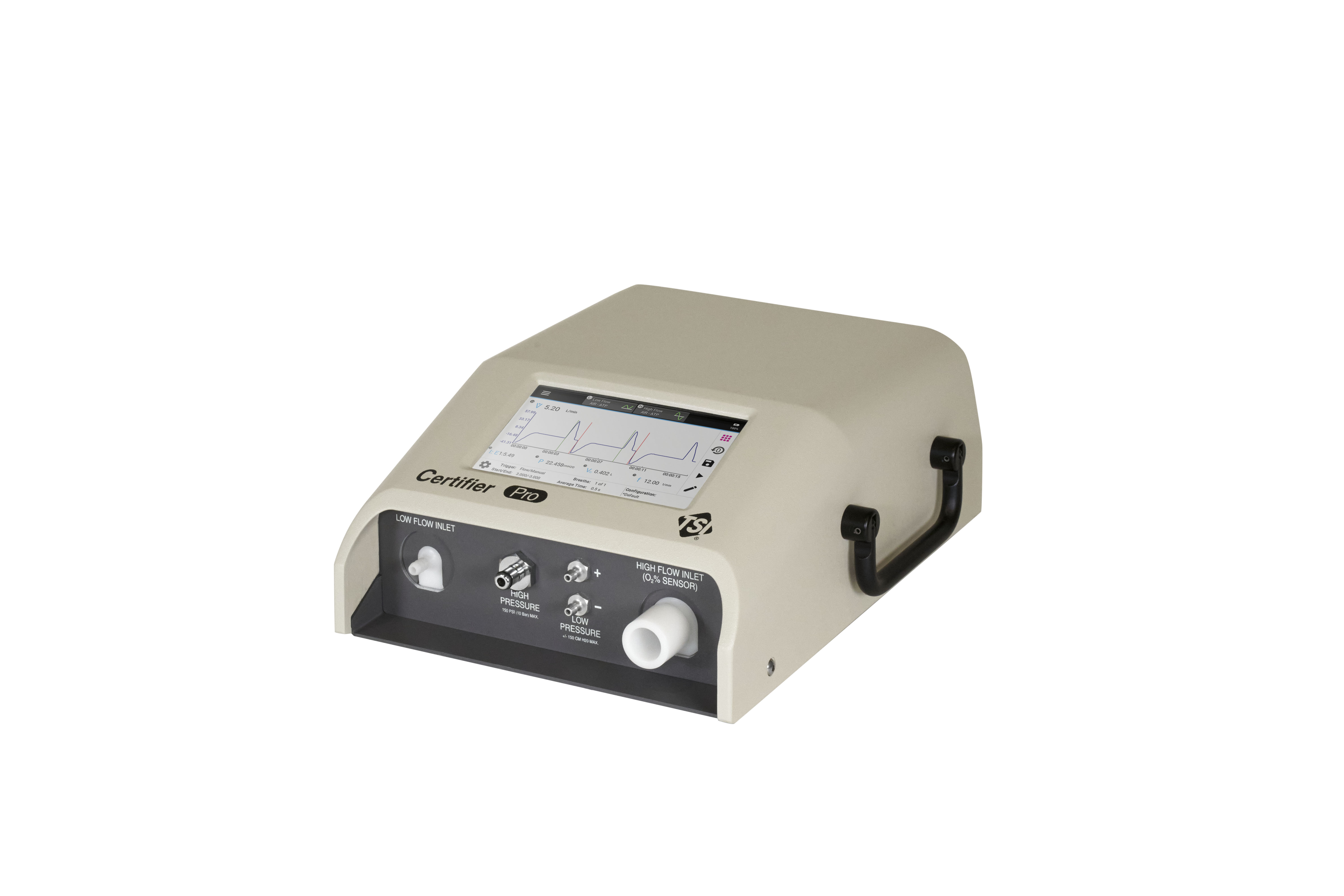

Certifier Pro Flow Analyzer 4090-AC

Model Number: 4090-AC

ISO 17025 Accredited

An all-in-one, benchtop flow analyzer capable of testing virtually all models of ventilators: adult, pediatric, anesthesia, neonatal, and high-frequency. It can also test a variety of other medical equipment such as anesthesia gas delivery machines, air-oxygen blenders, medical insufflators, oxygen concentrators, CPAPs, and other devices with pneumatic gas flows.

Learn more about our NEW Anesthesia Sensor >

Product Details

The Certifier™ Pro Flow Analyzer combines high flow and low flow measurements with pressures, oxygen concentration, and temperature. This multi-function pneumatic test instrument can measure 28 different test parameters and graph data in real-time. Pressure and temperature compensated bi-directional flow sensors deliver highly accurate gas flow measurements with a fast rate of response and industry-leading, low-pressure drop. Users can measure using STP, ATP, BTPS, BTPD, or user-defined gas conditions and test breath rates up to 1500 bpm.

The Certifier™ Pro Flow Analyzer kit includes an oxygen sensor (installed), high flow and low flow inlet filters, airway pressure fitting and silicone tubing, adapters (5), power supply with plug set, rechargeable Li-ion battery (installed), and ventilator hanger clip.

Product Features Include

  • Flow accuracy of 1.75% of reading
  • 5-inch, color touchscreen
  • Intuitive user interface is simple to operate
  • User configurations for faster test setups
  • Save measurement data and screenshots, USB export
  • Flow Compare feature to perform quick flow self-checks
  • Rechargeable battery operation
  • Field replaceable oxygen sensor
  • Durable design - includes 2 year standard warranty plus 2 year extended warranty for a limited time

Test Parameters

  • Flow Rate, Peak Flow, and Minimum Flow
  • Inhaled and Exhaled Tidal Volumes, Minute Volume
  • Low Pressure (Differential)
  • Peak, PEEP, and Minimum Pressures
  • Mean Airway Pressure
  • High Pressure, Barometric Pressure, Plateau Pressure
  • Static Compliance
  • Inspiratory and Expiratory Times
  • Inspiratory Pause Time, Inspiratory Rise Time
  • I:E Ratio, I:E Ratio Including Pause Time
  • Respiratory Rate
  • Oxygen Concentration
  • Gas Temperature
