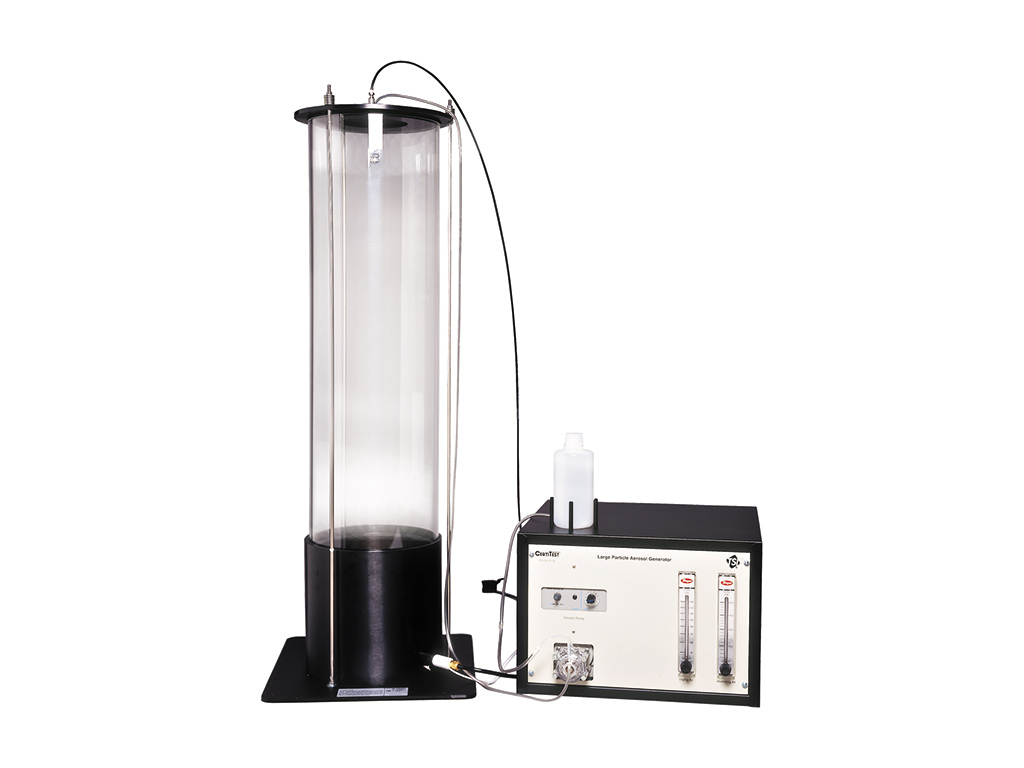

Large Particle Aerosol Generator 8108

Product Details

The Large Particle Aerosol Generator 8108 generates, dries, and neutralizes aerosols up to 10 µm in size for use in filter testing or other applications. Generating approximately 140 std L/min of aerosol-containing flow, the concentration generated by the Model 8108 ranges from ~600 #/cm³ at a particle size of 1 µm to ~10 #/cm³ at a particle size of 10 µm.

This aerosol generator is a valuable tool when conducting fractional efficiency tests of automotive-cabin air filters and general ventilation filters, or for other applications requiring a high flow rate and concentration of micron-scale particles.

Applications

• Aerosol generation
• Filter testing

Included Items

• Heater
• Drying column
• Nonradioactive aerosol neutralizer

Features and Benefits

• Produces a high concentration of aerosol particles from 0.1 to 10 µm
