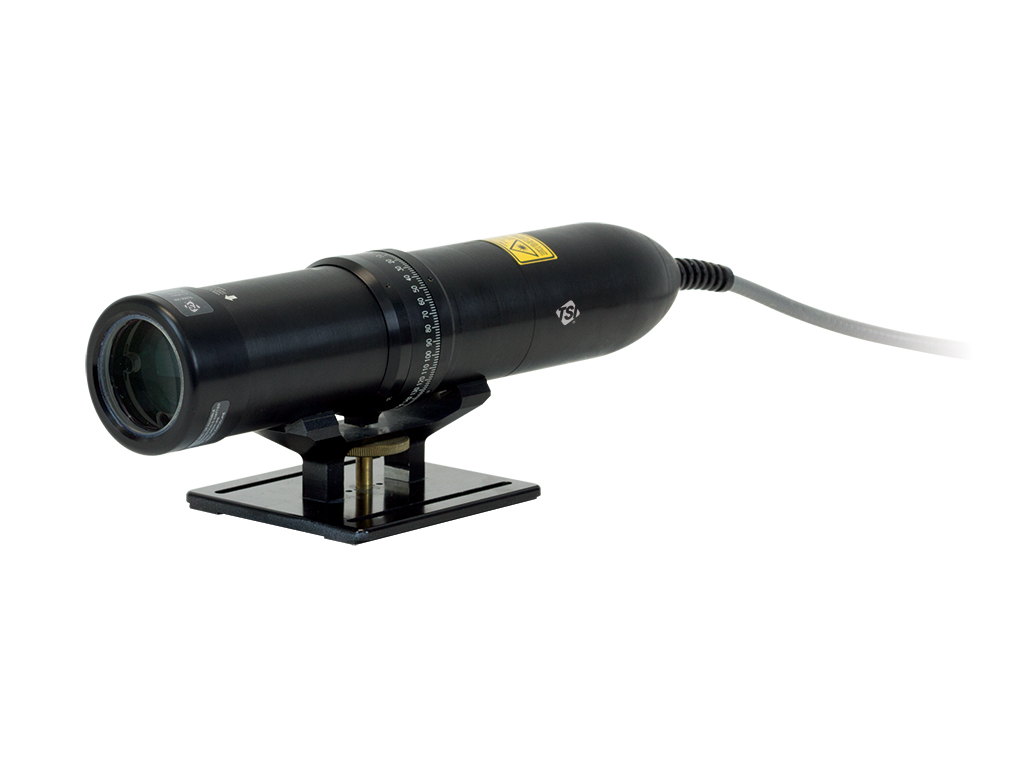

Probe - Transceiver Probe 83mm Diameter 2-Component TR260

SKU: TR260

The TR260 Transceiver Probe is our most popular two-component LDV probe.

Product Details

2D 83mm Transceiver Probe, 8m Cbl

MODEL DESCRIPTION
TR110-12

15 mm diameter, one-component Fiberoptic Transceiver Probe for 514.5 nm, 10 mm clear aperture, 60 mm focal length lens, 8m fiberoptic cable

TR110-13

15 mm diameter, one-component Fiberoptic Transceiver Probe for 476.5 nm, 10 mm clear aperture, 60 mm focal length lens, 8m fiberoptic cable

TR210

15 mm diameter, two-component Fiberoptic Transceiver Probe for 514.5 and 488 nm, 10 mm clear aperture, 60 mm focal length lens, 8m fiberoptic cable

TR120-12

25 mm diameter, one-component Fiberoptic Transceiver Probe for 514.5 nm, 20 mm clear aperture, 110 mm focal length lens, 8m fiberoptic cable

TR120-13

25 mm diameter, one-component Fiberoptic Transceiver Probe for 476.5 nm, 20 mm clear aperture, 110 mm focal length lens, 8m fiberoptic cable

TR220

25 mm diameter, two-component Fiberoptic Transceiver Probe for 514.5 and 488 nm, 20 mm clear aperture, 110 mm focal length lens, 8m fiberoptic cable

TR160-12

83 mm diameter, one-component Fiberoptic Transceiver Probe for 514.5 nm, 61 mm clear aperture, 363 mm focal length lens, 8m fiberoptic cable

TR160-13

83 mm diameter, one-component Fiberoptic Transceiver Probe for 476.5 nm, 61 mm clear aperture, 363 mm focal length lens, 8m fiberoptic cable

TR260

83 mm diameter, two-component Fiberoptic Transceiver Probe for 514.5 and 488 nm, 61 mm clear aperture, 363 mm focal length lens, 8m fiberoptic cable

TR360

83 mm diameter coaxial 5-beam three-component Fiberoptic Transceiver Probe for 514.5, 476.5 and 488 nm, 261 mm focal length lens, 8m fiberoptic cable

TR260-2-SS

83 mm diameter, two component fiberoptic transceiver probe for 514.5 and 488 nm, 61 mm clear aperture, 263 nm focal length lens, 20 m fiberoptic cable, stainless steel to use for underwater applications

Features & Benefits

  • Transmits as well as receives the scattered light
  • User can perform beam steering in the field
  • User can clean/polish the fibers in the field
  • Convenient rotating mount
  • Convenient sliding base
-
