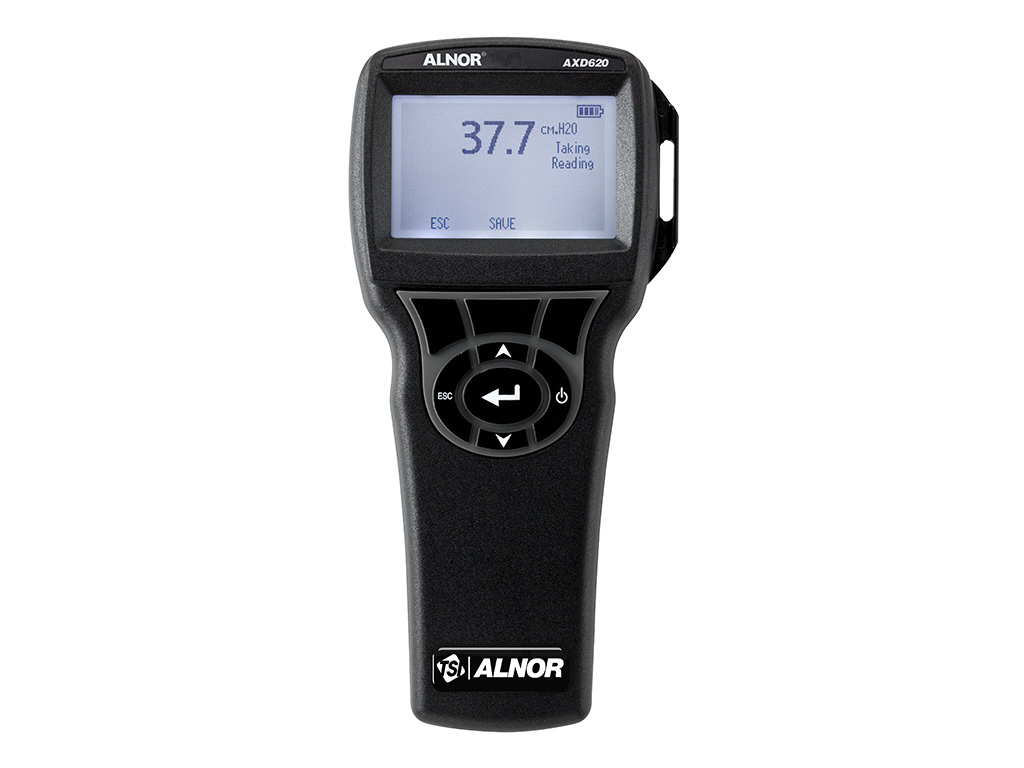

Alnor Micromanometer AXD620

Model Number: AXD620

The Alnor Micromanometer AXD620 is a rugged, compact, comprehensive micromanometer that measures pressure. It can be used with pitot tubes to measure velocity and then calculate flow rates with user–input duct size and shape.

Request A Quote



Other Models Available Description Request a Quote
AXD620-AC Includes ISO 17025 accreditation for differential pressure. request a quote
$985.00 USD

Product Details

Premium features make it ideal for HVAC, environmental safeguards, commissioning, process control and system balancing.

Ideal applications include HVAC commissioning and troubleshooting, testing and balancing, Pitot tube duct traverses, static pressure measurements and differential pressure measurements.

Included Items

  • Instrument
  • Hard carrying case
  • 4 alkaline batteries
  • (2)1.2-m rubber tubes
  • Static pressure tip
  • LogDat2™ Downloading Software and USB cable,
  • Operation and service manuals
  • NIST calibration certificate

Features and benefits

  • Measure differential and static pressure from -15 to +15 in. H2O (-3735 to +3735 Pa)
  • Calculates and displays velocity when using a Pitot tube
  • Calculates volumetric flow rate in duct from velocity and user-input duct size and shape
  • Records data points in duct traverse using sampling function
  • Data logging with time and date stamp
  • Programmable K factors
