TSI OmniTrak™ Solution

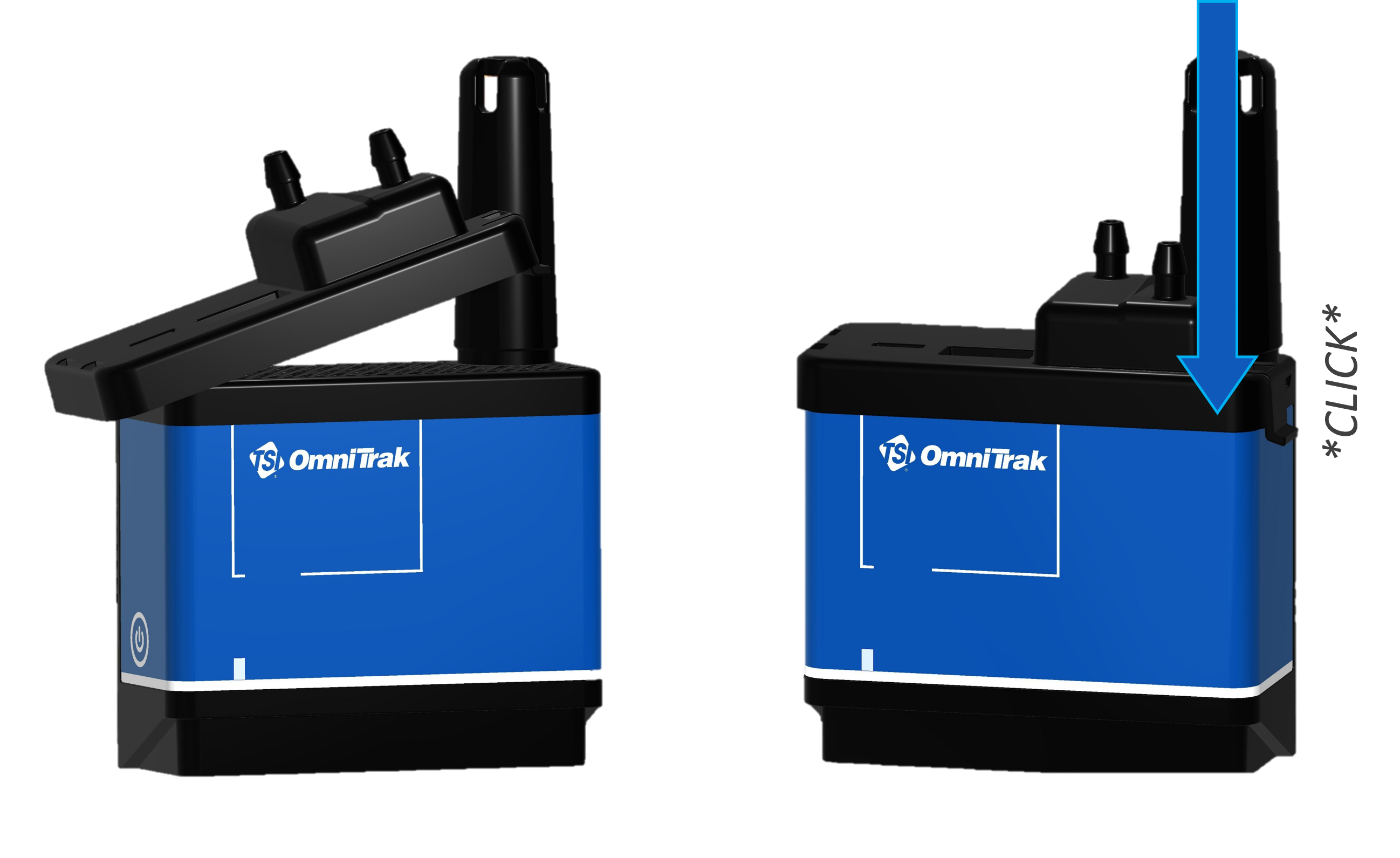

Attaching The Calibration Shroud

1. Align the Shroud
   • Position the calibration shroud over the top of the TSI OmniTrak™ Solution Core Module, making sure the probe fits into the notch.
2. Hook into Place
   • Slide the flat side (the side farthest from the probe) over the edge of the TSI OmniTrak™ Solution Core Module.
3. Latch the Shroud
   • Press down on the side closest to the probe until the shroud clicks securely into place.

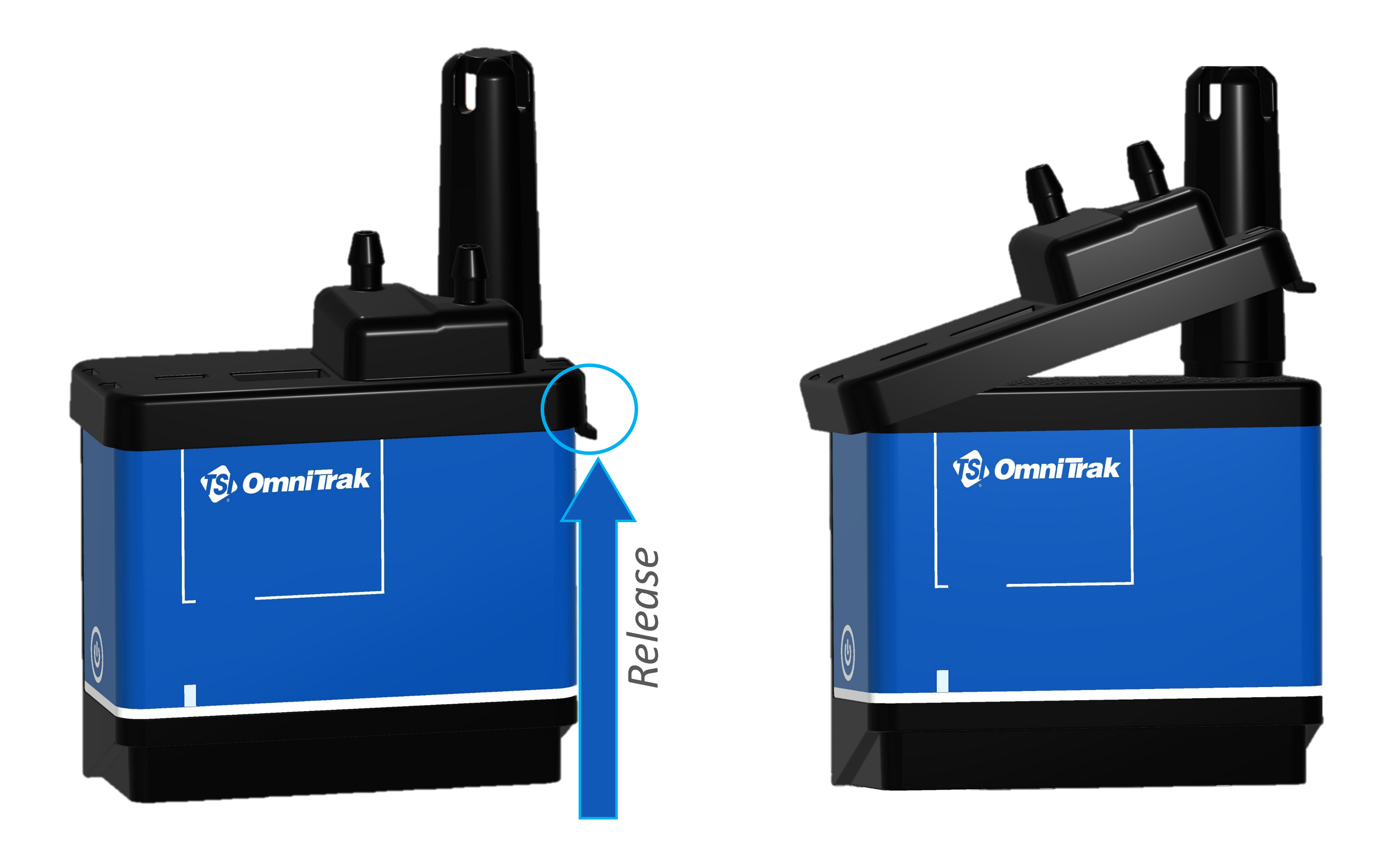

Removing The Calibration Shroud

Right to Left

1. Gently lift the tab on the right side of the module and pull up to release.
