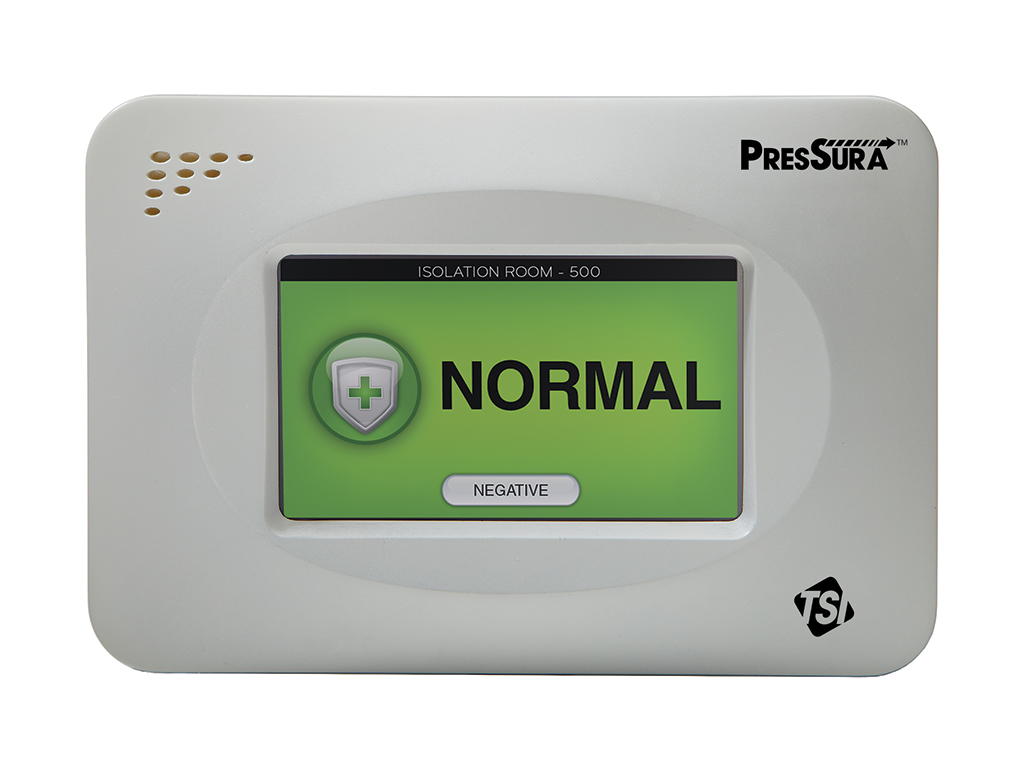

PresSura Hospital Room Pressure Controllers RPC30

Product Details

READY TO SHIP NOW—The PresSura™ Room Pressure Controller Model RPC30 is designed to maintain a constant pressure differential in hospital rooms. Backed by TSI's unique thermal-based pressure sensor, the PresSura products offer the most accurate, precise, and stable measurement available. For more information, download the Application Note: Comparison of Differential Pressure Sensing Technologies in Hospital Isolation Rooms and other CE Applications.

The Model RPC30 continuously measures room pressure, verifying proper airflow and pressure direction in Airborne Infection Isolation (AII) Rooms, Protective Environment (PE) Rooms, and Operating Rooms (ORs). The Model RPC30 then controls a damper or valve to maintain a safe pressure differential as the specialized room conditions might change. The Model RPC30 can also accept temperature and relative humidity inputs, for complete room environmental monitoring. PresSura Products help hospitals ensure safety for patients and staff.

A large, local monitor provides easy visual indication of room status. If pressure is lost, the Model RPC30 activates audible and visual alarms, alerting staff to the alarm condition. The Model RPC30 even accepts supply and exhaust volumetric flow measurements, alarming if the ventilation rate is too low. The Model RPC30 features adjustable alarm delays to avoid nuisance alarms. When the room is unoccupied, it can be changed to no isolation mode, deactivating all alarms.

Applications

• Airborne Infection Isolation (AII) Rooms - Negative Pressure
• Protective Environment (PE) Rooms - Positive Pressure
• Operating Rooms (ORs)
• Compounding Pharmacies
• Pandemic Preparedness Rooms
• Intensive Care Units
• Laboratories and Vivariums
• Burn Units

Features and benefits

• Audible and visual alarms warn staff of unsafe conditions
• Meets ANSI/ASHRAE/ASHE Standard 170-2013, Ventilation of Health Care Facilities
• Meets the Facility Guidelines Institute (FGI), Guidelines for Design and Construction of Health Care Facilities
• Meets US Centers for Disease Control (CDC), Guidelines for Environmental Infection Control in Health Care Facilities
• Meets United States Pharmacopeia (USP), General Chapter <797>, Guidebook to Pharmaceutical Compounding - Sterile Preparations
• Accurate pressure measurement based on TSI's thermal anemometry
• Continuously controls to design pressure setpoint by modulating a valve or damper
• Accepts measurements from temperature and relative humidity sensors
• Seamlessly integrates into building automation systems via BACnet or Modbus
• Easy-to-read color touch screen display provides simple visual indication of room status
• Accepts keyswitch to change room mode to neutral/no isolation
• Passwords prevent unauthorized access to monitor functions
• Compatible for use with PresSura NSD8 Nurses Station Monitor for easy central monitoring of all of the pressure sensors in an area

Resources

• Comparison of Differential Pressure Sensing Technologies in Hospital Isolation Rooms (LC-136) US
• PresSura Case Study 1 - Overcoming a Challenging Joint Commission Requirement US
• Engineering Guide for Hospital and Laboratory Control
