Airflow Instruments Velocity Meter TA550

SKU: TA550

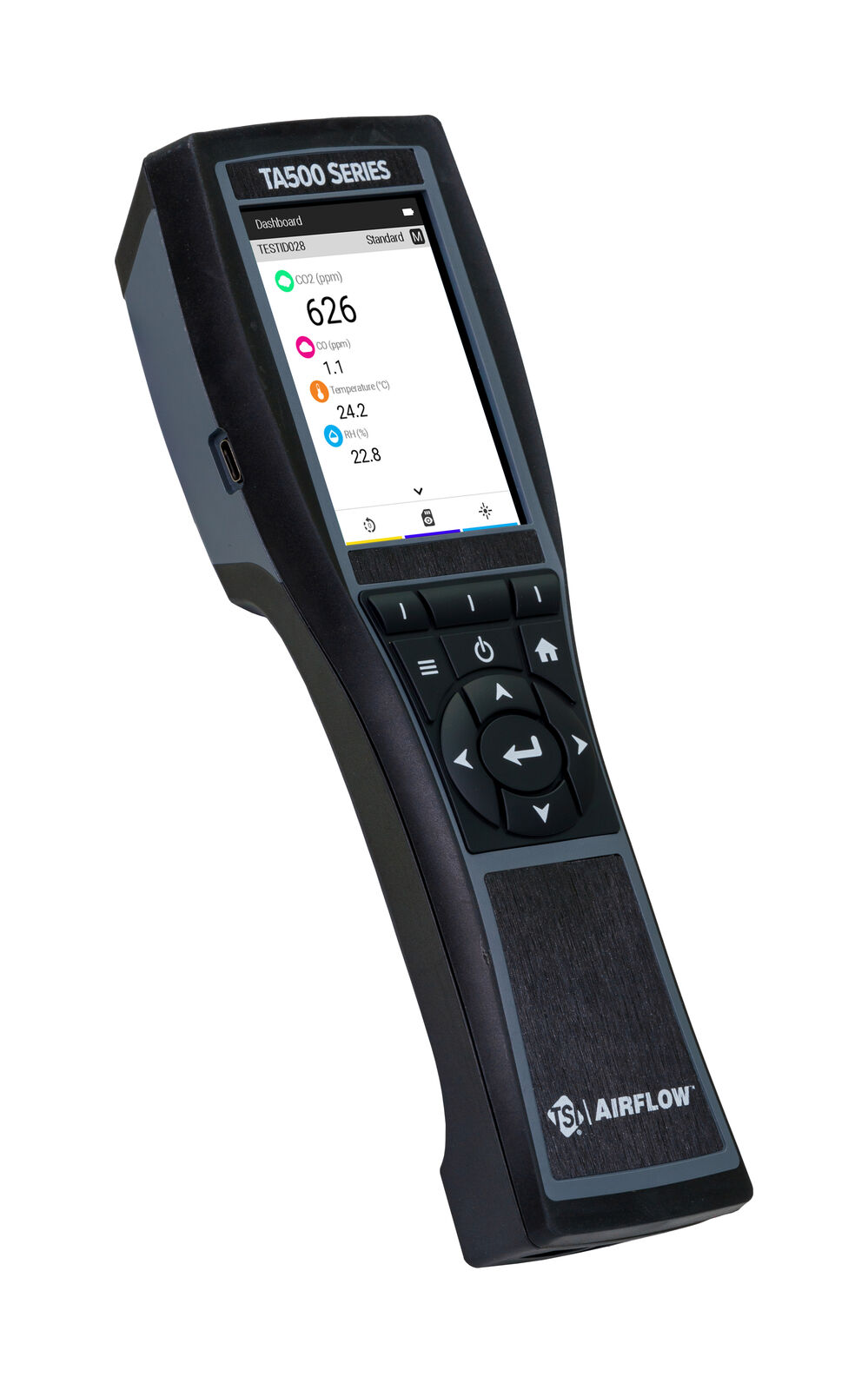

The Airflow™ Instruments TA550 is a portable, handheld Multi-Function micromanometer featuring a menu-driven user interface for easy operation. The high-resolution color screen displaying multiple measurements simultaneously in real-time with on-screen prompts to guide you through instrument setup and operation.

Product Details

The Airflow™ Instruments TA550 is used to measure HVAC system pressures and can be connected to pitot probes for performing duct traverses. Its ergonomic design includes a probe holder and integrated magnets allowing for attachment to exposed ductwork or other metallic surfaces for hands-free operation. The Model TA550 is designed to work with a wide range of plug-in probes for measuring air velocities or IAQ parameters. In addition, the TA550 also includes a built-in workflow for calculating the percentage of outside air, heat flow calculations for testing heating and cooling coils when used with probe Model 964 or 966, and grid guided duct traverse methodologies.

APPLICATIONS:

  • HVAC testing and balancing
  • Clean room testing
  • Biological safety cabinet and laboratory fume hood testing
  • HVAC commissioning and troubleshooting
  • IAQ investigations
  • Ventilation effectiveness with percent outside air calculation

INCLUDED ITEMS:

  • TA550 Instrument
  • Wrist strap
  • Static pressure probe
  • 2.4m tubing
  • Carrying case
  • 4 AA alkaline batteries
  • USB cable
  • Owner’s manual & calibration certificate

FEATURES AND BENEFITS:

  • Large, high-resolution color display
  • Intuitive menu structure allows for ease of use and setup

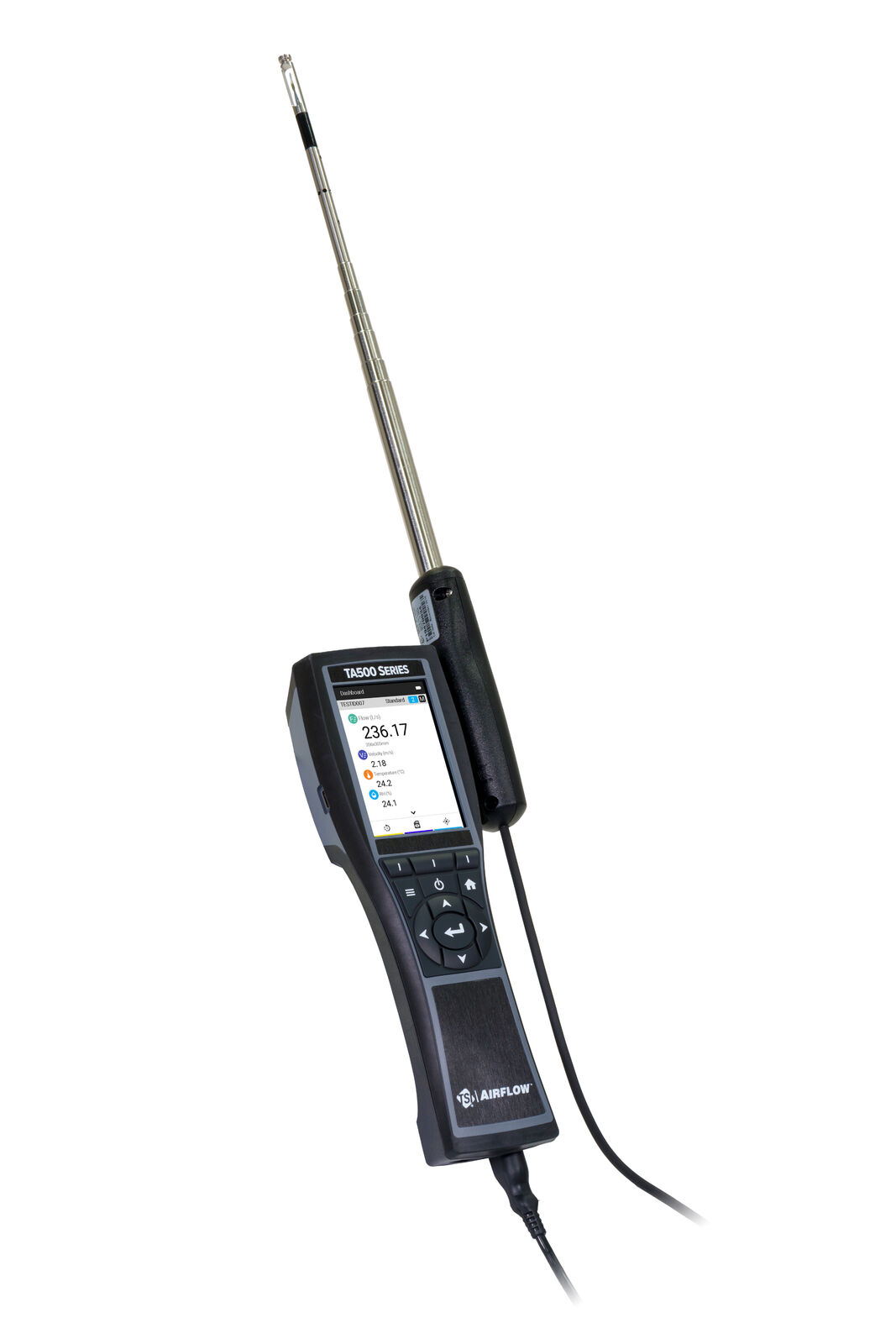

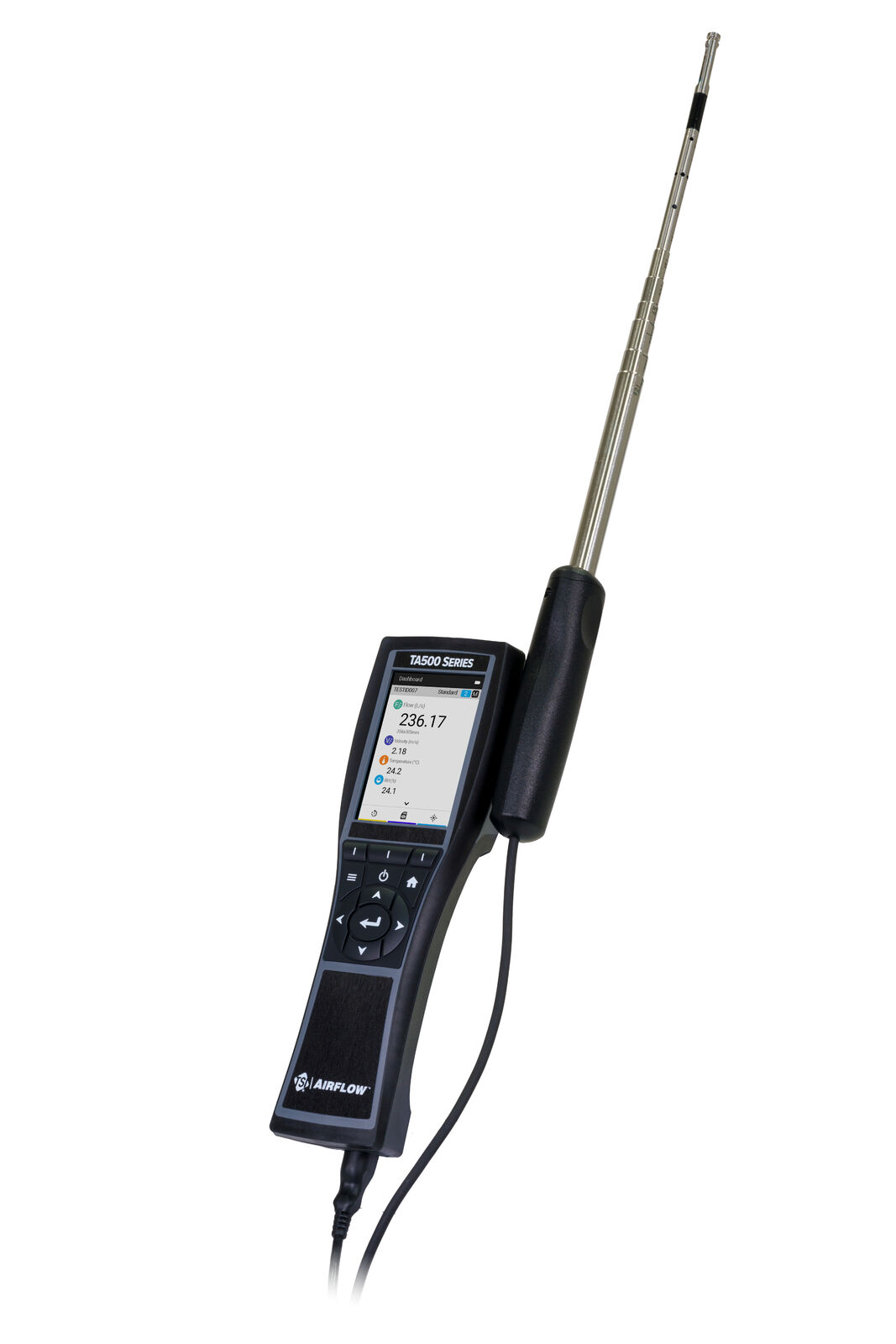

  • Optional smart plug-in probes, including thermoanemometer, rotating vane and CO2 probes with calibration certificates
  • User-customizable soft keys for quick access to common functions
  • Input for one K-alloy thermocouple
  • Integrated magnets for hands-free operation
  • Calculate the percentage of outdoor air with IAQ probe
  • Supports multiple languages
  • Static and differential pressure measurement
  • Air density compensation with on board barometric pressure sensor and temperature input

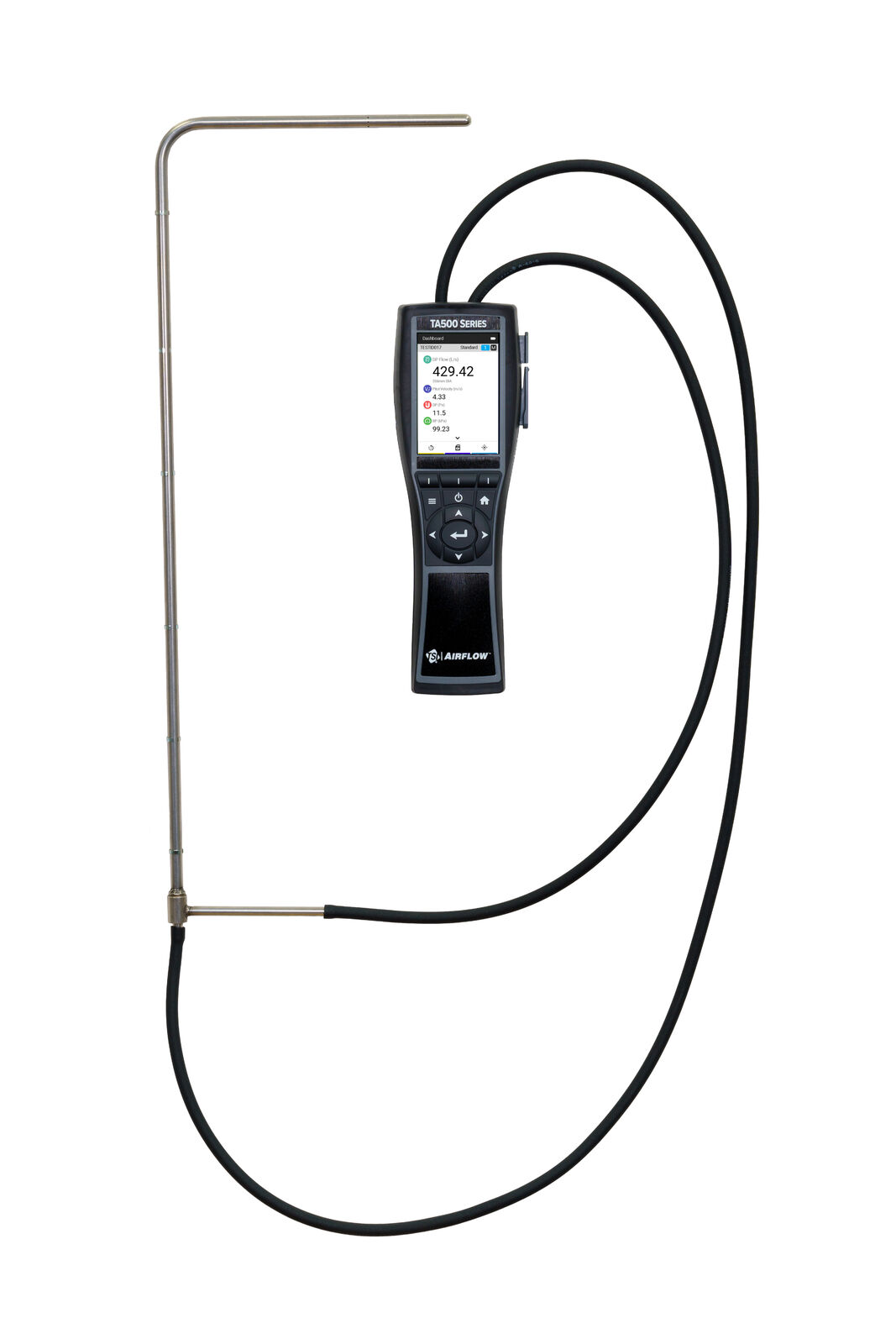

  • Pitot probe duct traverse
  • Programmable K-factors
  • Print data from instrument with optional USB portable printer (802241)
  • Print data from instrument with optional bluetooth wireless portable printer (802241) Model TA550 only
  • Step by step guided workflows:
    • Heat flow calculations in BTU/hr or kW
    • Percentage of outdoor air
  • Duct traverse grid measurements for:
    • ASHRAE 111 log-Tchebycheff
    • ASHRAE 111 equal area
    • EN 12599
    • EN 16211
Other Models Available Description Request a Quote
TA550 TA550 meter can connect to pitot probes for duct traverse measuring and is designed to work with other plug-in probes for measuring air velocities or IAQ parameters. request a quote
TA550-964 TA550 meter with 964 probe with standard calibration certificates. request a quote
TA550-966 TA550 meter with 966 probe with standard calibration certificates. request a quote
TA550-NB TA550 non-Bluetooth meter with Differential Pressure, and Workflows with standard calibration request a quote
TA550-NB-964 TA550-NB meter with 964 probe with standard calibration request a quote
TA550-NB-966 TA550-NB meter with 966 probe with standard calibration request a quote
AC-TA550 TA550 meter with ISO 17025 accredited calibrations. request a quote
AC-TA550-964 TA550 & 964 with ISO 17025 accredited calibrations request a quote
AC-TA550-966 TA550 & 966 with ISO 17025 accredited calibrations request a quote
AC-TA550-NB TA550-NB meter with Differential Pressure, and Workflows with ISO 17025 accredited calibration request a quote
AC-TA550-NB-964 TA550-NB meter with 964 probe with ISO 17025 accredited calibration request a quote
AC-TA550-NB-966 TA550-NB meter with 966 probe with ISO 17025 accredited calibration request a quote

*IAQ and RV probe accreditations are only available in Europe and the UK.



OPTIONAL PROBES: 792, 794, 960, 962, 964, 966, 980, 995, and 800220

OPTIONAL PITOT PROBES:

634634000 Pitot Probe 12" (30 cm) - 5/16" (8 mm) diameter
634634001 Pitot Probe 18" (46 cm) - 5/16" (8 mm) diameter
634634002 Pitot Probe 24" (61 cm) - 5/16" (8 mm) diameter
634634003 Pitot Probe 36" (91 cm) - 5/16" (8 mm) diameter
634634005 Pitot Probe 60" (152 cm) - 5/16" (8 mm) diameter
634634004 Telescoping Pitot Probe - 8" to 38" (20 cm to 96 cm)
