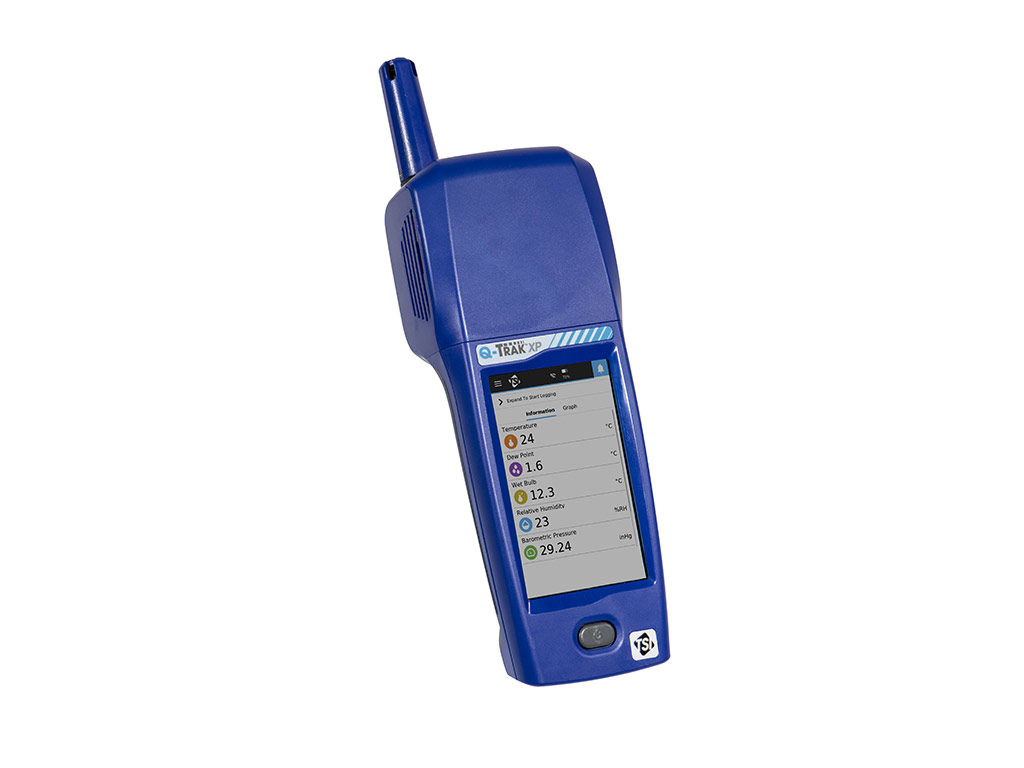

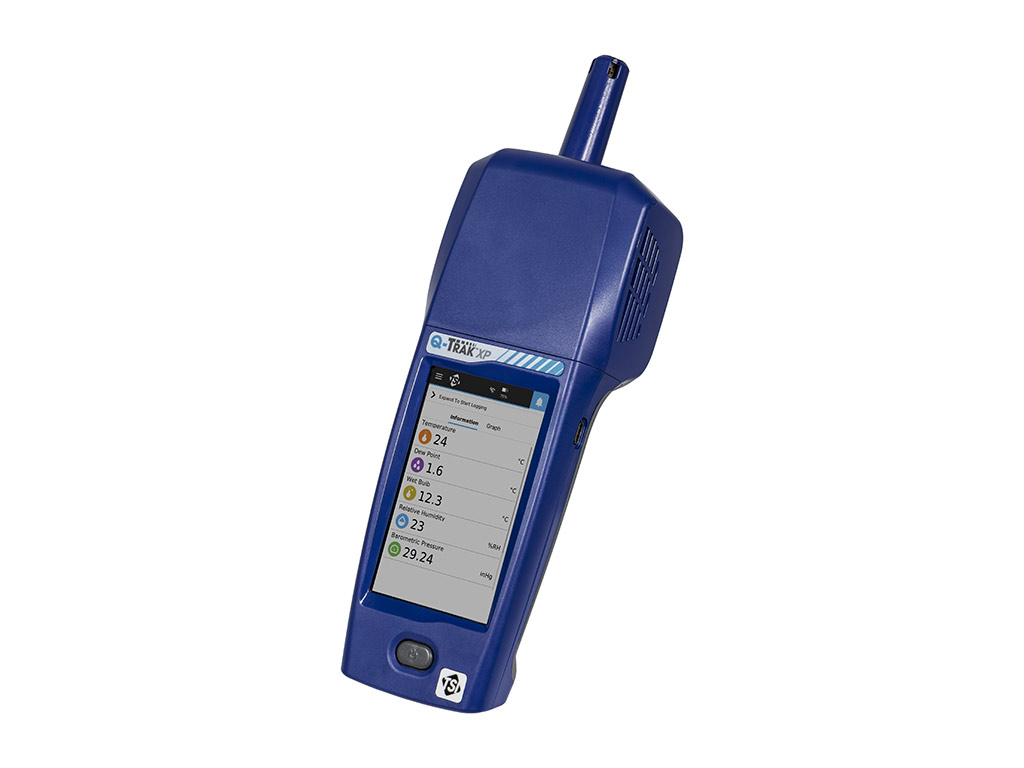

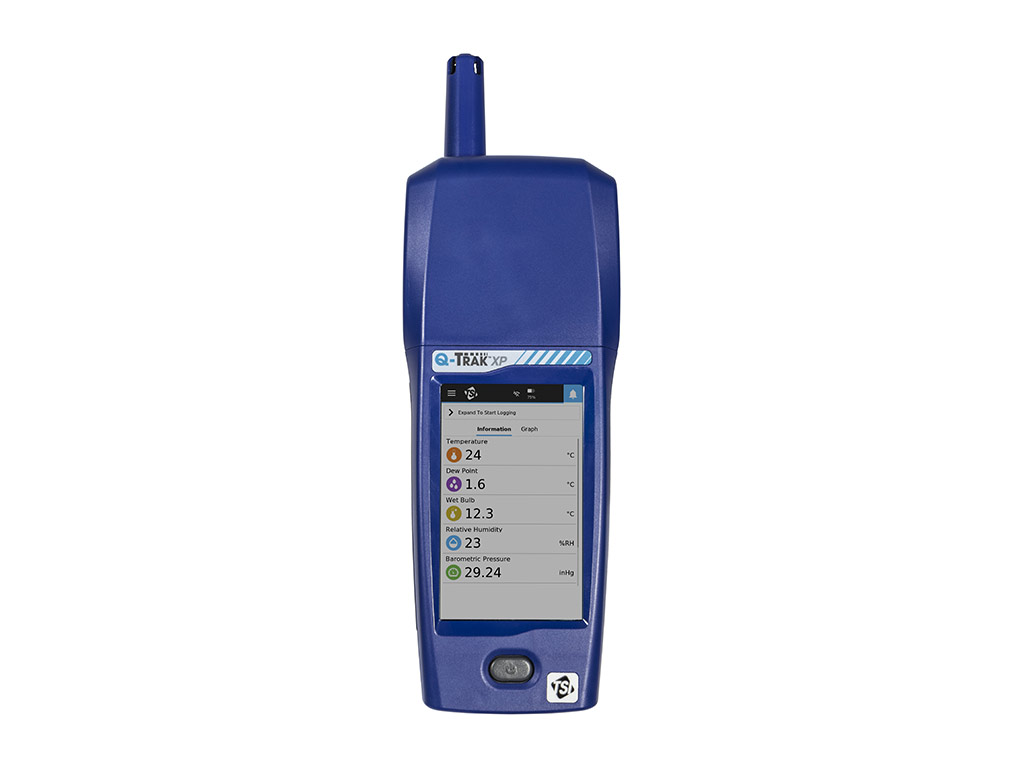

Q-Trak XP Indoor Air Quality IAQ Monitor 7585

Model Number: 7585

The Q-Trak XP Indoor Air Quality Monitor Model 7585 unites gas and particle measurements with traditional IAQ parameters—in one lightweight, handheld instrument that is easy to use, configure and calibrate in the field. Designed for IAQ and industrial hygiene professionals, this monitor allows you to add or change gas sensors, so you can expand your indoor air quality assessment capabilities.

This product is only available in the USA and Canada.

Request a Quote

Product Details

Q-Trak XP™ Indoor Air Quality Monitor can perform a wide range of indoor air quality assessments and data logging. The powerful, compact multi-sensor module supports up to 6 selectable gas sensors while simultaneously measuring particle mass concentration, particle concentration, temperature, relative humidity. Standard IAQ calculations including wet bulb, dew point and percent of outdoor air mix are also supported.

A variety of user selectable gas sensor can be added, changed and calibrated as needed. Housed within the unique modular design, the plug-and-play sensors provide an exceptional level of expansion capacity for responding to the increasing demands of IAQ assessments, while keeping the cost of ownership low.

Ideal for:

IAQ surveys and investigations
Proactive IAQ monitoring (especially schools and office buildings)
Evaluating thermal comfort (temperature and relative humidity)

The Q-Trak™ XP Indoor Air Quality Monitor Model 7585 Kit Includes:

Handheld unit with multi-sensor IAQ module (includes sensors for temperature, relative humidity, barometric pressure, particle mass concentration, plus open slots for six different types of gases)
CO₂ gas sensor
Gas calibration cap
Carrying case
Communication cable
Li-ion battery pack
Power supply + Manual
Calibration certificate

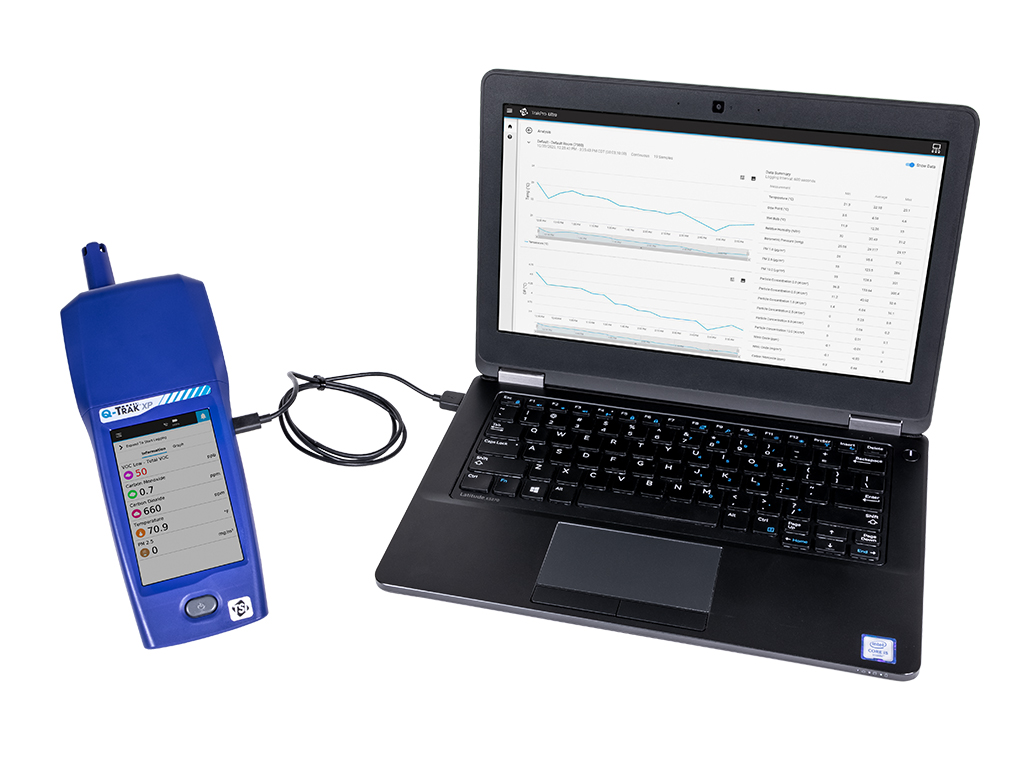

TrakPro Ultra Data Software

Features & Benefits

Simultaneously measures and logs up to 20 IAQ parameters, including mass concentration and gas – in one instrument
Measures PM1, PM2.5, PM10 size fractions and total particle concentration
Accommodates up to 6 optional, pre-calibrated gas sensors
Built-in % of outdoor air workflow
Field calibration and simple replacement of sensors minimizes downtime and keeps costs low
Monitors temperature and relative humidity with wet bulb and dew point calculations
Real-time temperature and barometric pressure density compensation for VOC and CO₂
Large touch-screen with intuitive navigation
Export data remotely with optional Wi-Fi connectivity (Wi-Fi not available in all Asia-Pacific countries)
